How to replace the EVAP canister purge valve and Vapor Canister on a Ford Edge?

To replace the EVAP canister purge valve, disconnect the negative battery terminal and remove the engine cover. Disconnect the electrical connector and EVAP line from the purge valve. Remove the mounting stud bolts or bracket nuts and remove the assembly. To replace the EVAP canister, disconnect the negative battery terminal and raise the vehicle. Remove the splash shield fasteners and shield. Lower the rear differential assembly and subframe. Disconnect the electrical connector and vapor hose from the EVAP canister vent solenoid dust separator. Remove the mounting fasteners and remove the canister. To replace the EVAP canister vent solenoid and dust separator assembly, remove the EVAP canister and the heat shield. Disconnect the vapor hose and electrical connector from the vent solenoid. Rotate the vent solenoid clockwise and remove it.

Genuine Ford Edge Vapor Canister

Fuel Vapor Canister

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Vapor Canisters found

View related parts
Ford Edge Cannister - Fuel Vapour Store
Part Number: F2GZ-9D653-A
$138.35 MSRP: $196.36
You Save: $58.01 (30%)
ADD TO CART
Product Specifications
- Other Name: Canister, Vapor Canister
- Replaced by: F2GZ-9D653-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2019 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Cannister - Fuel Vapour Store
Part Number: 7T4Z-9D653-B
$237.62 MSRP: $396.36
You Save: $158.74 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Vapor Canister
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Reservoir Assembly
Part Number: CU5Z-9D653-K
$157.32 MSRP: $250.91
You Save: $93.59 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Reservoir Assy
- Replaced by: GU5Z-9D653-J
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge CANNISTER - FUEL VAPOUR STORE
Part Number: K2GZ-9D653-A
$406.80 MSRP: $654.55
You Save: $247.75 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Vapor Canister
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2024 Ford Edge | 4 Cyl 2.0 L GAS
View related parts

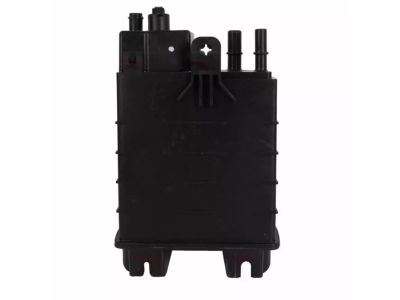

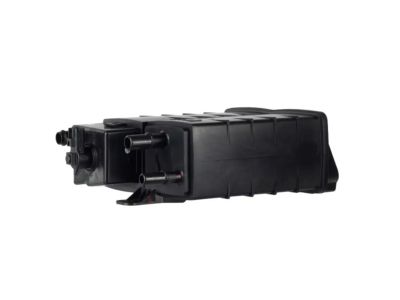

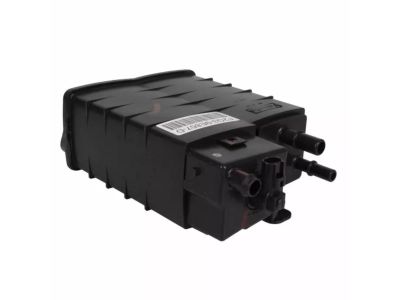

Ford Edge Cannister - Fuel Vapour Store
Part Number: F2GZ-9D653-B
$123.12 MSRP: $196.36
You Save: $73.24 (38%)
ADD TO CART
Product Specifications
- Other Name: Vapor Canister
- Replaced by: F2GZ-9D653-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford Edge | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Edge Reservoir Assembly
Part Number: GU5Z-9D653-B
$157.32 MSRP: $250.91
You Save: $93.59 (38%)
ADD TO CART
Product Specifications
- Other Name: Reservoir Assy
- Replaced by: GU5Z-9D653-J
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2019 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)

Ford Edge Vapor Canister

The Vapor Canister in Ford Edge vehicles is a part of the evaporative emissions control system abbreviated as EVAP, with the objective of minimizing hydrocarbon emissions. In its operation, the fuel vapors are held in a carbon canister with the activated charcoal that completes the adsorption of such vapors. The purge valve opens when the engine is running so as to allow a combination of air and stored fuel vapors to be drawn into the engine. Since then, various versions of the same Vapor Canister has been used in subsequent model of the Ford Edge, those from different years may have replaceable filter for better efficiency. The contemporary models come with additional diagnostic means including a canister vent solenoid and fuel tank pressure sensor to monitor leakage and proper functioning. These development assist in preserving the performance of the EVAP system and reducing the effects on the environment.

We provide a wide range of Ford Edge Vapor Canister at the best prices possible. If you need Ford Edge Vapor Canister, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Edge Vapor Canister Parts Questions & Experts Answers

Cannister - Fuel Vapour Store
7T4Z-9D653-B
Q: How to replace the EVAP canister purge valve and Vapor Canister on a Ford Edge?
A: To replace the EVAP canister purge valve, disconnect the negative battery terminal and remove the engine cover. Disconnect the electrical connector and EVAP line from the purge valve. Remove the mounting stud bolts or bracket nuts and remove the assembly. To replace the EVAP canister, disconnect the negative battery terminal and raise the vehicle. Remove the splash shield fasteners and shield. Lower the rear differential assembly and subframe. Disconnect the electrical connector and vapor hose from the EVAP canister vent solenoid dust separator. Remove the mounting fasteners and remove the canister. To replace the EVAP canister vent solenoid and dust separator assembly, remove the EVAP canister and the heat shield. Disconnect the vapor hose and electrical connector from the vent solenoid. Rotate the vent solenoid clockwise and remove it.
