How is the master cylinder removed from the engine compartment on Ford Escape?

The brake master cylinder, located in the engine compartment and attached to the power brake booster, is removed by first extracting as much fluid as possible from the reservoir using a syringe. The area is then prepared by placing rags underneath and prepping caps or bags to cover the brake lines once disconnected, taking care to avoid spilling the brake fluid which can damage paint. On manual transaxle models, the clutch master cylinder supply hose is detached from the brake fluid reservoir. Next, the fittings at the ends of the brake lines are loosened where they enter the brake master cylinder, using a flare-nut wrench to prevent rounding off the corners of the nuts. The brake lines are then pulled slightly away from the brake master cylinder and the ends plugged to avoid contamination. The electrical connector at the brake fluid level switch on the brake master cylinder reservoir is then disconnected, and the nuts attaching the brake master cylinder to the power booster removed. The brake master cylinder is then carefully pulled off the studs and out of the engine compartment. If a new brake master cylinder is being installed, the reservoir is removed from the brake master cylinder and transferred to the new one, taking care to install new seals during the transfer. Before installing, the new brake master cylinder is bled by mounting it in a vise and attaching bleeder tubes to the outlet ports. The reservoir is filled with recommended brake fluid, and the pistons slowly pushed into the brake master cylinder using a large Phillips screwdriver until no more air bubbles are present. The bleed tubes are then removed, and plugs installed in the open ports to prevent fluid leakage and air intake. The brake master cylinder is then installed over the studs on the power brake booster, with the attaching nuts tightened only finger tight. A new O-ring is installed into the sleeve of the brake master cylinder, and the brake line fittings threaded into the brake master cylinder, with the fittings tightened to avoid stripping the threads. After filling the brake master cylinder reservoir with fluid, the brake master cylinder and brake system are bled by having an assistant depress the brake pedal and hold it to the floor while loosening the fitting to allow air and fluid to escape. After rinsing the area under the brake master cylinder with clean water, the operation of the brake system is carefully tested before resuming normal service.

Genuine Ford Escape Brake Master Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Brake Master Cylinders found

View related parts

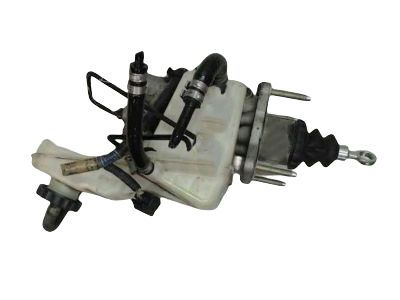

Ford Escape Cylinder Assembly - Master
Part Number: EV6Z-2140-A
$133.10 MSRP: $220.00
You Save: $86.90 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master; Master Cylinder
- Replaces: BRMC-158, BV6Z-2140-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Escape | 4 Cyl 1.5L EcoBoost 16V (180PS), 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 2.0L, 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Kit - Master Cylinder Repair
Part Number: 9M6Z-2140-A
$130.90 MSRP: $216.36
You Save: $85.46 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Master Cylinder
- Manufacturer Note: Service Kit
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2012 Ford Escape | 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L OHC Duratec | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Kit - Master Cylinder Repair
Part Number: 6L8Z-2140-B
$78.17 MSRP: $106.80
You Save: $28.63 (27%)
ADD TO CART
Product Specifications
- Other Name: Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Cylinder Assembly - Master
Part Number: BV6Z-2140-A
$133.10 MSRP: $220.00
You Save: $86.90 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: EV6Z-2140-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 1.6L EcoBoost SCTi -Sigma, 4 Cyl 2.0L, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Kit - Master Cylinder Repair
Part Number: 6L8Z-2140-C
$99.75 MSRP: $190.91
You Save: $91.16 (48%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Kit - Master Cylinder Repair
Part Number: 9L8Z-2140-C
$91.44 MSRP: $138.55
You Save: $47.11 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2012 Ford Escape | 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L OHC Duratec | 5-Speed Manual Transmission - AK, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape KIT - MASTER CYLINDER REPAIR
Part Number: JX6Z-2140-K
$98.95 MSRP: $157.82
You Save: $58.87 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford Escape | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Kit - Master Cylinder Repair
Part Number: 8L8Z-2140-A
$43.73 MSRP: $68.55
You Save: $24.82 (37%)
Product Specifications
- Other Name: Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Kit - Master Cylinder Repair
Part Number: 9L8Z-2140-A
$41.64 MSRP: $65.27
You Save: $23.63 (37%)
Product Specifications
- Other Name: Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2012 Ford Escape | 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L OHC Duratec | 4AT CD4E, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Cylinder Assembly - Master
Part Number: 5M6Z-2140-AA
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: 5M6Z-2140-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005 Ford Escape | 4 Cyl 2.3L Hybrid Gas/Electric DOHC | CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Cylinder Assembly - Master
Part Number: 5M6Z-2140-B
Product Specifications
- Other Name: Cylinder Assy - Master; Master Cylinder
- Replaces: 5M6Z-2140-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Cylinder Assembly - Master
Part Number: 8M6Z-2140-A
Product Specifications
- Other Name: Cylinder Assy - Master; Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Cylinder Assembly - Master
Part Number: 2L8Z-2140-AA
Product Specifications
- Other Name: Cylinder Assy - Master; Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2004 Ford Escape | 4 Cyl 2.0L Zetec EFI, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, Four-Wheel Drive (Full Time) (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts

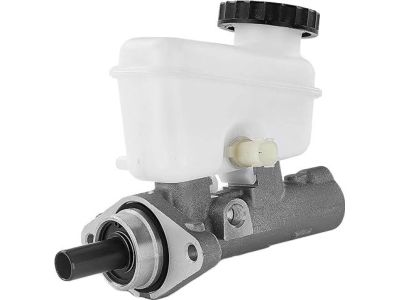

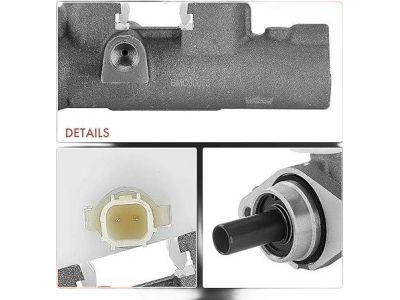

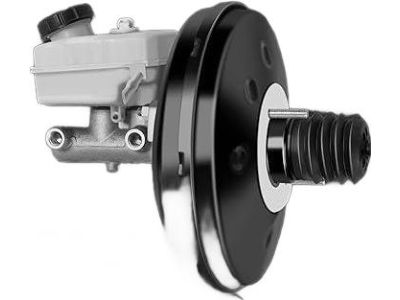

Ford Escape Cylinder Assembly - Master
Part Number: 2L8Z-2140-BA
Product Specifications
- Other Name: Cylinder Assy - Master; Master Cylinder
- Replaces: YL8Z-2140-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2004 Ford Escape | 4 Cyl 2.0L Zetec EFI, 6 Cyl 3.0L DOHC EFI Modular | 5-Speed Manual Transmission, Four-Wheel Drive (Full Time) (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Kit - Master Cylinder Repair
Part Number: 6L8Z-2140-D
Product Specifications
- Other Name: Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Kit - Master Cylinder Repair
Part Number: 8L8Z-2140-C
Product Specifications
- Other Name: Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 5-Speed Manual Transmission - AK, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Kit - Master Cylinder Repair
Part Number: 6L8Z-2140-A
Product Specifications
- Other Name: Master Cylinder
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2008 Ford Escape | 4 Cyl 2.3L, 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)

Ford Escape Brake Master Cylinder

The subject of the study is Brake Master Cylinder that is used in Ford Escape and performs essential role of translating the pressure applied by the driver through his foot pedal into hydraulic pressure. This mechanism works through a fluid being pumped through the system to contact the brake calipers or the drum brake as the case may be to generate the kind of friction that is required to bring the vehicle to a stop. Common fixed type of master cylinder incorporates two circuits with two pistons to make sure that at least one circuit would provide braking force when the other is failing to do so. For models of Ford Escape, housings may be manufactured from cast iron or aluminum and the fluid reservoir may be either integral or detached. The design variations are; this is in relation to the type of reservoir attachment and cap type, which impacts on often servicing and possible leakage areas. Common problems of the Brake Master Cylinder include fluid leakage problems, usually accompanied by internal problems such as moisture or rust, which requires immediate intervention in order to affect safe braking.

We provide a wide range of Ford Escape Brake Master Cylinder at the best prices possible. If you need Ford Escape Brake Master Cylinder, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Escape Brake Master Cylinder Parts Questions & Experts Answers

Kit - Master Cylinder Repair
9M6Z-2140-A
Q: How is the master cylinder removed from the engine compartment on Ford Escape?
A: The brake master cylinder, located in the engine compartment and attached to the power Brake Booster, is removed by first extracting as much fluid as possible from the reservoir using a syringe. The area is then prepared by placing rags underneath and prepping caps or bags to cover the Brake Lines once disconnected, taking care to avoid spilling the brake fluid which can damage paint. On manual transaxle models, the clutch master cylinder supply hose is detached from the brake fluid reservoir. Next, the fittings at the ends of the brake lines are loosened where they enter the brake master cylinder, using a flare-nut wrench to prevent rounding off the corners of the nuts. The brake lines are then pulled slightly away from the brake master cylinder and the ends plugged to avoid contamination. The electrical connector at the brake fluid level switch on the brake master cylinder reservoir is then disconnected, and the nuts attaching the brake master cylinder to the power booster removed. The brake master cylinder is then carefully pulled off the studs and out of the engine compartment. If a new brake master cylinder is being installed, the reservoir is removed from the brake master cylinder and transferred to the new one, taking care to install new seals during the transfer. Before installing, the new brake master cylinder is bled by mounting it in a vise and attaching bleeder tubes to the outlet ports. The reservoir is filled with recommended brake fluid, and the pistons slowly pushed into the brake master cylinder using a large Phillips screwdriver until no more air bubbles are present. The bleed tubes are then removed, and plugs installed in the open ports to prevent fluid leakage and air intake. The brake master cylinder is then installed over the studs on the power brake booster, with the attaching nuts tightened only finger tight. A new O-ring is installed into the sleeve of the brake master cylinder, and the brake line fittings threaded into the brake master cylinder, with the fittings tightened to avoid stripping the threads. After filling the brake master cylinder reservoir with fluid, the brake master cylinder and brake system are bled by having an assistant depress the brake pedal and hold it to the floor while loosening the fitting to allow air and fluid to escape. After rinsing the area under the brake master cylinder with clean water, the operation of the brake system is carefully tested before resuming normal service.
