How to remove and install a power steering pump on Ford Escape?

Disconnect the cable from the negative battery terminal. Using a large syringe or suction gun, suck as much fluid out of the power steering fluid reservoir as possible. Place a drain pan under the vehicle to catch any fluid that spills out when the hoses are disconnected. For a four cylinder engine, remove the drive belt. Disconnect the electrical connector at the power steering pump. Unscrew and remove the bolt securing the high pressure fluid line support bracket. Using a flare-nut wrench, unscrew the pressure line fitting from the pump. Disconnect the supply hose from the power steering pump. Unscrew and remove the four mounting bolls, and withdraw the power steering pump from its bracket. The pulley can be removed on the workbench, using a pulley removal tool. For a V6 engine, remove the ground wire. Loosen the right front wheel lug nuts. Raise the front of the vehicle and support it securely on jackstands, then remove the wheel. Install the wheel and lower the vehicle to the ground. Support the engine with a floor jack and block of wood. Remove the pulley from the power steering pump. Disconnect the fluid return hose from the pump, allowing the fluid to drain into a suitable container. Unplug the electrical connector from the power steering fluid pressure switch and remove the bolt securing the pressure line bracket. Disconnect the power steering pressure hose from the pump, allowing the fluid to drain into a suitable container. Use two wrenches; a backup wrench to hold the fitting on the pump tube, the other to loosen the fitting. Under the power steering reservoir, remove the refrigerant line bracket-to-body nut. Remove the upper engine mount. Unscrew the power steering mounting bolts, then remove the bracket and the pump. Installation is the reverse of removal, noting the following points: Tighten the bolts and unions securely. The O-ring on the high-pressure outlet should be replaced. Use a special tool or a tapered tube to slide the new O-ring onto the pipe union. On 3.0L V6 models, when installing the engine mounts. Install the drive belt. After you've reconnected the battery, the Power/rain Control Module (PCM) must relearn its idle and fuel mixture trim strategy for optimum driveability and performance. Fill the power steering reservoir with the recommended fluid. Bleed the power steering hydraulic system.

Genuine Ford Escape Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Power Steering Pumps found

View related parts
Ford Escape Pump Assy - Power Steering
Part Number: 6L8Z-3A696-BA
$181.66 MSRP: $298.18
You Save: $116.52 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering Pump
- Manufacturer Note: With Pulley
- Replaces: 5L8Z-3A696-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Escape | 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Pump Assy - Power Steering
Part Number: YL8Z-3A674-AB
$139.74 MSRP: $274.55
You Save: $134.81 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Less Pulley
- Replaced by: 6L8Z-3A696-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2004 Ford Escape | 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Pump Assy - Power Steering
Part Number: 5L8Z-3A696-BA
$181.66 MSRP: $298.18
You Save: $116.52 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: With Pulley
- Replaced by: 6L8Z-3A696-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford Escape | 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts

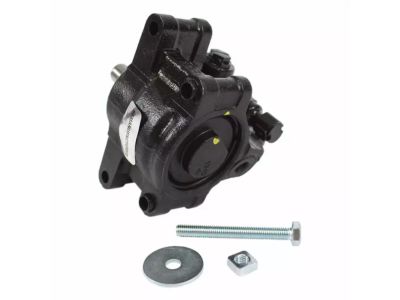

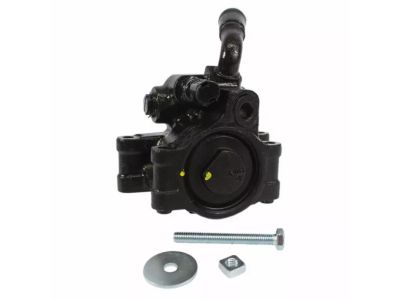

Ford Escape Pump Assy - Power Steering
Part Number: 5L8Z-3A674-AA
$126.87 MSRP: $207.27
You Save: $80.40 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 7L8Z-3A674-ARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford Escape | 4 Cyl 2.3L | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Pump Assy - Power Steering
Part Number: 7L8Z-3A674-A
$126.87 MSRP: $207.27
You Save: $80.40 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 7L8Z-3A674-ARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Ford Escape | 4 Cyl 2.3L | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Pump Assy - Power Steering
Part Number: 7L8Z-3A674-ARM
$131.43 MSRP: $207.27
You Save: $75.84 (37%)
Product Specifications
- Other Name: Power Steering Pump
- Replaces: 5L8Z-3A674-AA, 7L8Z-3A674-A, STP-208
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Escape | 4 Cyl 2.3L | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Pump Assy - Power Steering
Part Number: YL8Z-3A674-MARM
Product Specifications
- Other Name: Power Steering Pump
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2004 Ford Escape | 4 Cyl 2.0L Zetec EFI | 4AT CD4E, 5-Speed Manual Transmission, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)

Ford Escape Power Steering Pump

Power Steering Pump facilities the Ford Escape vehicles by transforming the engine energy to hydraulic energy to ease the steering process. By supplying hydraulic power to the steering system the pump lessens the force that must be applied when turning the steering wheel making it easier to control the car. Ford Escape Power Steering Pumps most often can be located in the engine compartment, are motor driven by a belt, and use high pressure hydraulic hoses to supply pressure fluid to the steering mechanism. Some of the problems faced in a power steering pump include leakage, high noise levels, no power assistance, and sensitivity is another problem that can be addressed once the technician begins to check on them to determine their state. In summary, the Power Steering Pump can be seen as one of the significant components in the vehicle since it helps the driver experience comfortable and flexibility in the wheels of the car.

We provide a wide range of Ford Escape Power Steering Pump at the best prices possible. If you need Ford Escape Power Steering Pump, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Escape Power Steering Pump Parts Questions & Experts Answers

Pump Assy - Power Steering
5L8Z-3A696-BA
Q: How to remove and install a power steering pump on Ford Escape?
A: Disconnect the cable from the negative battery terminal. Using a large syringe or suction gun, suck as much fluid out of the power steering fluid reservoir as possible. Place a drain pan under the vehicle to catch any fluid that spills out when the hoses are disconnected. For a four cylinder engine, remove the drive belt. Disconnect the electrical connector at the power steering pump. Unscrew and remove the bolt securing the high pressure fluid line support bracket. Using a flare-nut wrench, unscrew the pressure line fitting from the pump. Disconnect the supply hose from the power steering pump. Unscrew and remove the four mounting bolls, and withdraw the power steering pump from its bracket. The pulley can be removed on the workbench, using a pulley removal tool. For a V6 engine, remove the ground wire. Loosen the right front wheel lug nuts. Raise the front of the vehicle and support it securely on jackstands, then remove the wheel. Install the wheel and lower the vehicle to the ground. Support the engine with a floor jack and block of wood. Remove the pulley from the power steering pump. Disconnect the fluid return hose from the pump, allowing the fluid to drain into a suitable container. Unplug the electrical connector from the power steering fluid pressure switch and remove the bolt securing the pressure line bracket. Disconnect the power steering pressure hose from the pump, allowing the fluid to drain into a suitable container. Use two wrenches; a backup wrench to hold the fitting on the pump tube, the other to loosen the fitting. Under the power steering reservoir, remove the refrigerant line bracket-to-body nut. Remove the upper engine mount. Unscrew the power steering mounting bolts, then remove the bracket and the pump. Installation is the reverse of removal, noting the following points: Tighten the bolts and unions securely. The O-ring on the high-pressure outlet should be replaced. Use a special tool or a tapered tube to slide the new O-ring onto the pipe union. On 3.0L V6 models, when installing the engine mounts. Install the drive belt. After you've reconnected the battery, the Power/rain Control Module (PCM) must relearn its idle and fuel mixture trim strategy for optimum driveability and performance. Fill the power steering reservoir with the recommended fluid. Bleed the power steering hydraulic system.
