How to remove and install the instrument panel on Ford Explorer?

The change of the instrument panel is quite heavy and it requires quite some effort to change, thus it is wise for at least two people to change it. For 1994 and earlier models the procedure is essentially to unhook the cable from the negative terminal of the battery, and then there are screws that hold the hood release cable in place to the lower instrument panel cover, and also at the bottom of the lower cover and there are few more screws next to the top of the cover that screw into the instrument panel and the top is snapped off. Subsequently, take off the lower instrument panel cover reinforcement brace, ash trap and its holder, as well as insulation of the steering column. Go ahead and pull out the instrument cluster bezel and the instrument cluster as well, I also recall taking out inside A-pillar moldings and kick panel from both sides and passenger side lower insulation panel too. Remove the nut which fastens the instrument panel panel to the brake pedal support bracket and the wiring harness bolted to the steering column, and the bolts which secures each side of the instrument panel to the cowl sides and the screws fixating the cowl top. After having freed all the screws connected to the lights and switches and radio and the heater/air conditioning control assembly and the wires of the antenna to the radio and the vacuum hose and the control cables to the heater/air conditioning control assembly carefully pull the instrument panel back slightly to disconnect electrical connectors and then carefully take out the instrument panel from the car. For 1995 and later models remove the negative battery cable first, then the positive battery cable, and wait two minutes before moving further. Align the steering wheel in the lock position and make sure that it does not move during the process of this procedure to prevent case that would harm the airbag sliding contact. Take out the center console if installed, followed by the lower instrument panel cover, reinforcement panel, and the instrument cluster bezel after which you set the instrument cluster. Take out some plastic pushpins and rivets and take off the lower insulation panel on the passenger side together with A pillar moldings and both kick panels. Pull the glove box and remove the hinge to pull out the retaining screws of the glove box. Finally, take the two bolts which secures the passenger airbag and then sliding the unit out of the instrument panel and pulling away from it you will have to disconnect it from the electrical connector. Treat the airbag module gently so that the trim side is toward the bottom, and place the airbag module where the trim side is toward the top. Unscrew the center trim panel around the instrument panel and drag it out, and take out the radio connecting wires and the wires behind the heater/air conditioning control assembly. At the right of the throttle pedal, unscrew the bolts of the lower instrument panel brace and the bolts of the steering column mounting and lower and supporting the steering column. Pop open the fuse panel cover at the left corners of the instrument panel and then take out the two screws which are behind the cover, and the one screw on the lower right part of the instrument panel. Pop out the defroster bezels and then take out the screws which is on the upper region of the instrument panel. Slide the instrument panel gently backwards in order to empty all electrical connector or wiring harness clips connected to it. In the 1997 and later model, it is possible to disconnect the wiring harness from the body while still keeping the harness connected to the instrument panel and leave the harness attached to the body at different connectors including the electrical connector at brake pedal position switch and all the electrical harness connectors coupled with ground wires that are located at the /or panel. Last of all, installation is the exact process of the removal procedure with the only aspect of caution being not to reconnect the battery until all electrical connections have been tightened, notably the passenger airbag.

Genuine Ford Explorer Instrument Cluster

Speedometer Instrument Cluster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

176 Instrument Clusters found

View related parts

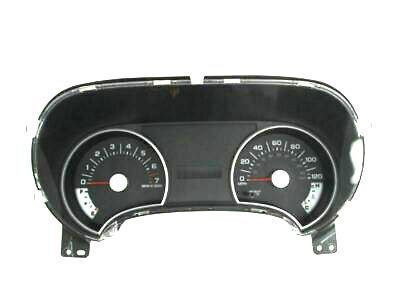

Ford Explorer Instrument Cluster
Part Number: 7L2Z-10849-BA
$350.37 MSRP: $468.45
You Save: $118.08 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

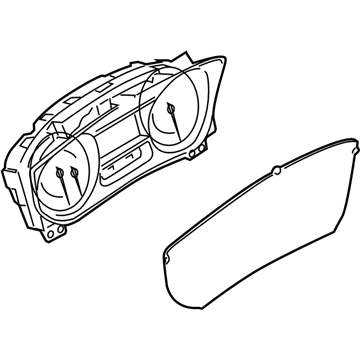

Ford Explorer Instrument Cluster
Part Number: EB5Z-10849-GA
$534.83 MSRP: $719.58
You Save: $184.75 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cluster Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014-2015 Ford Explorer | 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.3L TIVCT DI TC, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Explorer Instrument Cluster
Part Number: BB5Z-10849-GA
$552.08 MSRP: $743.06
You Save: $190.98 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cluster Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011 Ford Explorer | 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Explorer Instrument Cluster
Part Number: 9A2Z-10849-D
$346.29 MSRP: $462.89
You Save: $116.60 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2010 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: 6L2Z-10849-EB
$387.54 MSRP: $519.05
You Save: $131.51 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 6L2Z-10849-JA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: 8L2Z-10849-E
$370.02 MSRP: $495.20
You Save: $125.18 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: 6L2Z-10849-DB
$367.52 MSRP: $491.78
You Save: $124.26 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 6L2Z-10849-HA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: 7L2Z-10849-EA
$372.48 MSRP: $498.54
You Save: $126.06 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: 6L2Z-10849-BA
$401.12 MSRP: $537.54
You Save: $136.42 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: 6L2Z-10849-BB
$401.12 MSRP: $537.54
You Save: $136.42 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 6L2Z-10849-GA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: 8L2Z-10849-DB
$340.89 MSRP: $455.54
You Save: $114.65 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: EB5Z-10849-EA
$416.25 MSRP: $558.14
You Save: $141.89 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cluster Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014-2015 Ford Explorer | 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.3L TIVCT DI TC, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Explorer Instrument Cluster
Part Number: CB5Z-10849-GA
$552.08 MSRP: $743.06
You Save: $190.98 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cluster Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012 Ford Explorer | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Explorer Instrument Cluster
Part Number: 9A2Z-10849-C
$335.39 MSRP: $448.05
You Save: $112.66 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2010 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: 8L2Z-10849-CB
$337.54 MSRP: $450.97
You Save: $113.43 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: GB5Z-10849-JA
$402.81 MSRP: $539.83
You Save: $137.02 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cluster Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016 Ford Explorer | 4 Cyl 2.3L TIVCT DI TC, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Explorer Instrument Cluster
Part Number: DB5Z-10849-AA
$427.82 MSRP: $573.89
You Save: $146.07 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cluster Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013 Ford Explorer | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Explorer Instrument Cluster
Part Number: 4L2Z-10849-CA
$500.62 MSRP: $673.00
You Save: $172.38 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Order From Instrument Cluster Online Ordering System Using The Online 1878 Form
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2005 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L Romeo SOHC EFI | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: 5L2Z-10849-AA
$500.62 MSRP: $673.00
You Save: $172.38 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Order From Instrument Cluster Online Ordering System Using The Online 1878 Form
- Replaces: 4L2Z-10849-CB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005 Ford Explorer | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L Romeo SOHC EFI | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission 5R55W, 5-Speed Manual Transmission (M5R4), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Right Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Instrument Cluster
Part Number: HB5Z-10849-DB
$532.80 MSRP: $716.82
You Save: $184.02 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cluster Assembly
- Manufacturer Note: Export Dealers And Affiliates: Order Direct From FCSD-IDO
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017 Ford Explorer | 4 Cyl 2.3L TIVCT DI TC, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC T/C, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive

| Page 1 of 9 |Next >

1-20 of 176 Results

Ford Explorer Instrument Cluster

The Instrument Cluster is an important part in the Ford Explorer cars situated at the back portion of the steering wheel, dedicated to offer detailed information with regards to driving environment. It has the efficiency check instruments including the speedometer, tachometer as well as the fuel meter, additionally, the other lights for alerts and notices all encompassing the functioning of the vehicle, the engine and basic safety. During the years Ford Explorer has utilised different styles of Instrument Clusters, from simple analogue ones to more sophisticated digital ones. These make an improvement in functionality as it is possible to have real time updates on the fuel consumption and other parameters. The effective functionality of the Instrument Cluster is highly important in the context of providing accurate information to the drivers and providing safe driving experiences for the Ford Explorer automobiles. There may be some problems which may require one to replace the factory Instrument Cluster through getting a remanufactured Instrument Cluster.

We provide a wide range of Ford Explorer Instrument Cluster at the best prices possible. If you need Ford Explorer Instrument Cluster, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Explorer Instrument Cluster Parts Questions & Experts Answers

Instrument Cluster
XC2Z-10849-GA
Q: How to remove and install the instrument panel on Ford Explorer?
A: The change of the instrument panel is quite heavy and it requires quite some effort to change, thus it is wise for at least two people to change it. For 1994 and earlier models the procedure is essentially to unhook the cable from the negative terminal of the battery, and then there are screws that hold the hood release cable in place to the lower instrument panel cover, and also at the bottom of the lower cover and there are few more screws next to the top of the cover that screw into the instrument panel and the top is snapped off. Subsequently, take off the lower instrument panel cover reinforcement brace, ash trap and its holder, as well as insulation of the steering column. Go ahead and pull out the instrument cluster bezel and the instrument cluster as well, I also recall taking out inside A-pillar moldings and kick panel from both sides and passenger side lower insulation panel too. Remove the nut which fastens the instrument panel panel to the brake pedal support bracket and the wiring harness bolted to the steering column, and the bolts which secures each side of the instrument panel to the cowl sides and the screws fixating the cowl top. After having freed all the screws connected to the lights and switches and radio and the heater/air conditioning control assembly and the wires of the antenna to the radio and the vacuum hose and the control cables to the heater/air conditioning control assembly carefully pull the instrument panel back slightly to disconnect electrical connectors and then carefully take out the instrument panel from the car. For 1995 and later models remove the negative battery cable first, then the positive battery cable, and wait two minutes before moving further. Align the steering wheel in the lock position and make sure that it does not move during the process of this procedure to prevent case that would harm the airbag sliding contact. Take out the center console if installed, followed by the lower instrument panel cover, reinforcement panel, and the instrument cluster bezel after which you set the instrument cluster. Take out some plastic pushpins and rivets and take off the lower insulation panel on the passenger side together with A pillar moldings and both kick panels. Pull the glove box and remove the hinge to pull out the retaining screws of the glove box. Finally, take the two bolts which secures the passenger airbag and then sliding the unit out of the instrument panel and pulling away from it you will have to disconnect it from the electrical connector. Treat the airbag module gently so that the trim side is toward the bottom, and place the airbag module where the trim side is toward the top. Unscrew the center trim panel around the instrument panel and drag it out, and take out the radio connecting wires and the wires behind the heater/air conditioning control assembly. At the right of the throttle pedal, unscrew the bolts of the lower instrument panel brace and the bolts of the steering column mounting and lower and supporting the steering column. Pop open the fuse panel cover at the left corners of the instrument panel and then take out the two screws which are behind the cover, and the one screw on the lower right part of the instrument panel. Pop out the defroster bezels and then take out the screws which is on the upper region of the instrument panel. Slide the instrument panel gently backwards in order to empty all electrical connector or wiring harness clips connected to it. In the 1997 and later model, it is possible to disconnect the wiring harness from the body while still keeping the harness connected to the instrument panel and leave the harness attached to the body at different connectors including the electrical connector at brake pedal position switch and all the electrical harness connectors coupled with ground wires that are located at the /or panel. Last of all, installation is the exact process of the removal procedure with the only aspect of caution being not to reconnect the battery until all electrical connections have been tightened, notably the passenger airbag.
