How to remove and install fuel injectors and fuel rails on Ford F-150?

Relieve the system fuel pressure, then disconnect the cable from the negative battery terminal. For 4.2L V6 models, disconnect the fuel supply line spring-lock coupling from the fuel rail, the vacuum hose, and the electrical connector from the Fuel Rail Pressure Temperature (FRPT) sensor. Disconnect the electrical connectors from all six fuel injectors, detach the injector wiring harness retainers from the fuel rail, and remove the four fuel rail bolts. Remove the fuel rail and injectors as a single assembly, grasp each fuel injector firmly, and pull it out of the fuel rail. Remove the two old O-rings from each injector and install new upper and lower O-rings. Installation is the reverse of removal, ensuring to tighten the fuel rail mounting bolts to the specified torque. For 4.6L V8 models, remove the air intake duct, unscrew the threaded fitting at the upper end of the Exhaust Gas Recirculation (EGR) pipe, disconnect the power brake booster hose, and disconnect the electrical connectors from the throttle position sensor and electronic throttle control. Disconnect the electrical connector and vacuum hose from the EGR module, disconnect both ends of the PCV system's fresh air inlet hose, and remove the throttle body spacer and throttle body as a single assembly. Disconnect the electrical connector from the IPR sensor or the injection pressure and temperature sensor, disconnect the electrical connectors from the eight fuel injectors, and remove the fuel rail and injectors as a single assembly. For 5.4L V8 models, remove the air intake duct and air filter housing, disconnect the EVAP purge line quick-connect coupling, and disconnect the electrical connector from the heated PCV valve. Disconnect the quick-connect coupling for the Vapor Management Valve and the throttle position sensor electrical connectors. Remove the fuel rail and injectors as a single assembly, remove the old O-rings from each injector, and install new O-rings, applying clean engine oil to each upper and lower O-ring before installation. For 3.7L V6 and 5.0L V8 models, remove the upper intake manifold, detach the fuel feed line from the fuel rail, and disconnect the electrical connectors from the injectors. Remove the fuel rail and injectors as a single assembly, remove the old O-rings, and install new O-rings with clean engine oil. For 6.2L V8 models, disconnect the air intake duct and adapter from the throttle body, detach the fuel feed line from the fuel rail, and disconnect the electrical connectors from the injectors. Remove the fuel rail and injectors as a single assembly, remove the old O-rings, and install new O-rings with clean engine oil. For 3.5L V6 models, drain the cooling system, remove the intake manifold, detach the hoses from the thermostat housing, and remove the coolant pipe. Remove the high-pressure fuel tube bracket fasteners, detach the high-pressure fuel tube from the fuel rails and pump, and disconnect the fuel injector harness electrical connectors. Clean the valley between the cylinder banks, remove the fuel rail mounting bolts, and detach the left and right fuel rails and injectors. Clean the injector bores, remove the old combustion chamber Teflon sealing ring and O-rings, and install new Teflon seals using special tools or a socket method. Install the new support ring and lubricate the new upper O-ring with clean engine oil before installing the injectors in the cylinder head. Install a new spring steel retainer on each injector, install the fuel rail, and tighten the bolts to the specified torque. Clean the high-pressure fuel line fittings, apply clean engine oil to the threads, and install the new high-pressure fuel line. Install the thermostat housing and coolant crossover pipe, ensuring to tighten the bolts to the specified torque, and refill the cooling system.

Genuine Ford F-150 Fuel Injector

Gas Injector

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

41 Fuel Injectors found

View related parts
Ford F-150 Injector Assembly
Part Number: 3L3Z-9F593-DA
$103.40 MSRP: $170.91
You Save: $67.51 (40%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004 Ford F-150 | 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: 4L3Z-9F593-CA
$100.65 MSRP: $200.00
You Save: $99.35 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Ford F-150 | 6 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT, 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-150 Injector Assembly
Part Number: 9W7Z-9F593-A
$41.31 MSRP: $66.91
You Save: $25.60 (39%)
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2010 Ford F-150 | 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: FOTZ-9F593-C
$118.04 MSRP: $234.55
You Save: $116.51 (50%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Injector Assy
- Replaced by: FOTZ-9F593-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-2004 Ford F-150 | 6 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT, 4AT 4R100, 4AT 4R70W, 4AT E4OD, 5MT
View related parts
Ford F-150 Injector Assembly
Part Number: BR3Z-9F593-B
$46.63 MSRP: $74.36
You Save: $27.73 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2017 Ford F-150 | 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.7L PFI NA | 10-Speed Automatic Transmission (10R80), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: 9L3Z-9F593-B
$41.63 MSRP: $82.73
You Save: $41.10 (50%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2010 Ford F-150 | 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: BR3Z-9F593-A
$55.66 MSRP: $92.00
You Save: $36.34 (40%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2017 Ford F-150 | 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: BL3Z-9F593-B
$97.13 MSRP: $160.55
You Save: $63.42 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Replaces: CM-5202, BL3Z-9F593-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2016 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: AL3Z-9F593-B
$76.78 MSRP: $126.91
You Save: $50.13 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford F-150 | 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: 5C3Z-9F593-DC
$50.27 MSRP: $83.09
You Save: $32.82 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford F-150 | 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: 9L3Z-9F593-E
$41.84 MSRP: $66.73
You Save: $24.89 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2014 Ford F-150 | 8 Cyl 4.6L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: 7C3Z-9F593-A
$40.72 MSRP: $80.91
You Save: $40.19 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2008 Ford F-150 | 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: AL3Z-9F593-A
$44.80 MSRP: $71.45
You Save: $26.65 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010 Ford F-150 | 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: FT4Z-9F593-A
$86.93 MSRP: $172.73
You Save: $85.80 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector Assy; Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2017 Ford F-150 | 6 Cyl 2.7L | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Injector Assembly
Part Number: XL3Z-9F593-AA
$67.15 MSRP: $107.09
You Save: $39.94 (38%)
ADD TO CART
Product Specifications
- Other Name: Injector Assy
- Replaced by: XL3Z-9F593-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2004 Ford F-150 | 6 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT, 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-150 INJECTOR ASY
Part Number: ML3Z-9F593-D
$115.14 MSRP: $183.64
You Save: $68.50 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2023 Ford F-150
View related parts

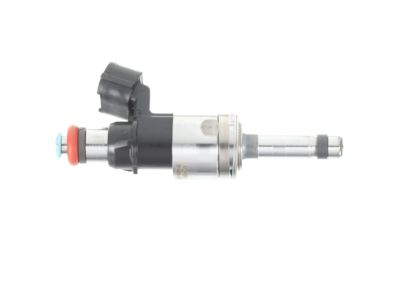

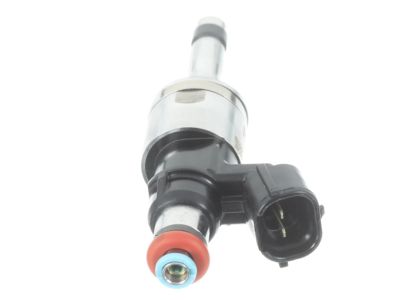

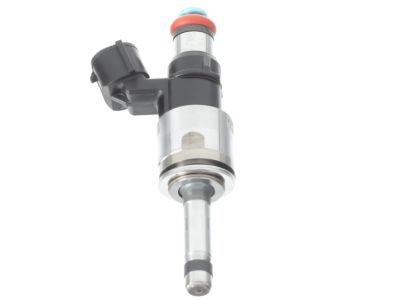

Ford F-150 INJECTOR ASY
Part Number: JT4Z-9F593-C
$71.83 MSRP: $118.73
You Save: $46.90 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector
- Replaces: CM-5271, JT4Z-9F593-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2020 Ford F-150 | 6 Cyl 2.7L | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 INJECTOR ASY
Part Number: ML3Z-9F593-C
$29.95 MSRP: $46.55
You Save: $16.60 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2023 Ford F-150
View related parts
Ford F-150 Injector Assembly
Part Number: 4L3Z-9F593-BA
$84.81 MSRP: $140.18
You Save: $55.37 (40%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Injector Assy
- Manufacturer Note: Romeo engine
- Replaced by: 4L3Z-9F593-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2008 Ford F-150 | 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Kit - Fuel Injection
Part Number: JL3Z-9H529-C
$174.78 MSRP: $214.29
You Save: $39.51 (19%)
Product Specifications
- Other Name: Injector
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2020 Ford F-150 | 6 Cyl 3.0L 4V DOHC TC DSL-LION B | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

| Page 1 of 3 |Next >

1-20 of 41 Results

Ford F-150 Fuel Injector

The Fuel Injector in Ford F-150 vehicles works the important function of supplying fuel to the engine cylinder in order to achieve a good mixture of air fuel in the engine. This system is fully controlled by the engine control unit which determines the time of injection as well as the quantity to be injected depending on the load being faced by the engine. Through the years of manufacturing F-150 models, Ford has explored various types of Fuel Injectors and mainly distinguished by direct and indirect injection. Direct injection kind sends fuel into the combustion chamber while indirect injection disperses fuel and air prior to entering the chamber. These variations improve the output and productivity of the engines and current designs include complicated methods of synchronization for fuel supply. Sometimes fuel injectors may develop faults and may not effectively supply fuel to the engine, and hence, it is vital for the Ford F-150's reliability to replace them on time.

We provide a wide range of Ford F-150 Fuel Injector at the best prices possible. If you need Ford F-150 Fuel Injector, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford F-150 Fuel Injector Parts Questions & Experts Answers

Injector Assembly
3L3Z-9F593-DA
Q: How to remove and install fuel injectors and fuel rails on Ford F-150?
A: Relieve the system fuel pressure, then disconnect the cable from the negative battery terminal. For 4.2L V6 models, disconnect the fuel supply line spring-lock coupling from the fuel rail, the vacuum hose, and the electrical connector from the Fuel Rail Pressure Temperature (FRPT) sensor. Disconnect the electrical connectors from all six fuel injectors, detach the injector wiring harness retainers from the fuel rail, and remove the four fuel rail bolts. Remove the fuel rail and injectors as a single assembly, grasp each fuel injector firmly, and pull it out of the fuel rail. Remove the two old O-rings from each injector and install new upper and lower O-rings. Installation is the reverse of removal, ensuring to tighten the fuel rail mounting bolts to the specified torque. For 4.6L V8 models, remove the air intake duct, unscrew the threaded fitting at the upper end of the Exhaust Gas Recirculation (EGR) pipe, disconnect the power brake booster hose, and disconnect the electrical connectors from the throttle position sensor and electronic throttle control. Disconnect the electrical connector and vacuum hose from the EGR module, disconnect both ends of the PCV system's fresh air inlet hose, and remove the Throttle Body spacer and throttle body as a single assembly. Disconnect the electrical connector from the IPR sensor or the injection pressure and temperature sensor, disconnect the electrical connectors from the eight fuel injectors, and remove the fuel rail and injectors as a single assembly. For 5.4L V8 models, remove the air intake duct and air filter housing, disconnect the EVAP purge line quick-connect coupling, and disconnect the electrical connector from the heated PCV valve. Disconnect the quick-connect coupling for the Vapor Management Valve and the throttle position sensor electrical connectors. Remove the fuel rail and injectors as a single assembly, remove the old O-rings from each injector, and install new O-rings, applying clean engine oil to each upper and lower O-ring before installation. For 3.7L V6 and 5.0L V8 models, remove the upper intake manifold, detach the fuel feed line from the fuel rail, and disconnect the electrical connectors from the injectors. Remove the fuel rail and injectors as a single assembly, remove the old O-rings, and install new O-rings with clean engine oil. For 6.2L V8 models, disconnect the air intake duct and adapter from the throttle body, detach the fuel feed line from the fuel rail, and disconnect the electrical connectors from the injectors. Remove the fuel rail and injectors as a single assembly, remove the old O-rings, and install new O-rings with clean engine oil. For 3.5L V6 models, drain the cooling system, remove the intake manifold, detach the hoses from the thermostat housing, and remove the coolant pipe. Remove the high-pressure fuel tube bracket fasteners, detach the high-pressure fuel tube from the fuel rails and pump, and disconnect the fuel injector harness electrical connectors. Clean the valley between the cylinder banks, remove the fuel rail mounting bolts, and detach the left and right fuel rails and injectors. Clean the injector bores, remove the old combustion chamber Teflon sealing ring and O-rings, and install new Teflon seals using special tools or a socket method. Install the new support ring and lubricate the new upper O-ring with clean engine oil before installing the injectors in the cylinder head. Install a new spring steel retainer on each injector, install the fuel rail, and tighten the bolts to the specified torque. Clean the high-pressure fuel line fittings, apply clean engine oil to the threads, and install the new high-pressure fuel line. Install the thermostat housing and coolant crossover pipe, ensuring to tighten the bolts to the specified torque, and refill the cooling system.
