Genuine Ford F-250 Transfer Case
Speed Transfer Case- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
12 Transfer Cases found

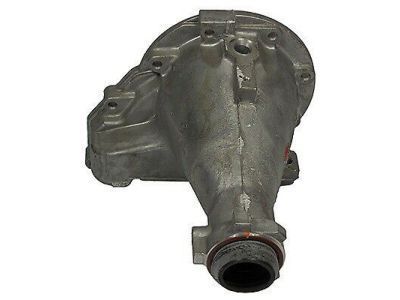

Ford F-250 Transmission Extension Housing
Part Number: F3LY-7A039-A$210.18 MSRP: $310.00You Save: $99.82 (33%)Ships in 1-3 Business Days

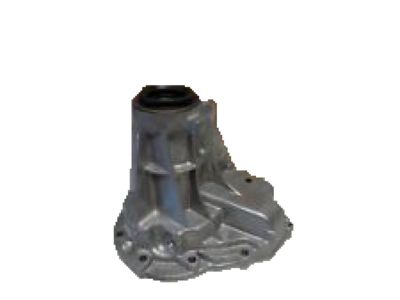

Ford F-250 Transmission Extension Housing
Part Number: F81Z-7A039-JA$231.56 MSRP: $321.68You Save: $90.12 (29%)Ships in 1-2 Business Days
Ford F-250 Case Assembly Transmission
Part Number: F6TZ7005F$689.80 MSRP: $958.24You Save: $268.44 (29%)Ships in 1-2 Business Days
Ford F-250 Transfer Case Parts Questions & Experts Answers
- Q: What is the function of the transfer cases mentioned on Ford F-250?A: Operationally, all transfer cases mentioned perform the same function. In 2WD mode, power is transferred from the transmission to the Input shaft of the transfer case, which then drives the output shaft through a non-functional planetary gear set. Shifting into 4WD mode locks a previously free wheeling gear onto the 2WD output shaft, connecting a second output shaft for the front driveshaft via a multi-row chain. This completes the transfer of power to the front wheels. Shifting into 4WD low activates the transfer case planetary gears for gear reduction of the 2WD output shaft, providing reduced gearing to both axles. The transfer cases differ in the mechanical means used for planetary gear reduction and shift mode mechanisms. Additionally, all transfer cases have an oil pump driven by the rear output shaft to maintain pressure during normal operation and towing.
- Q: What are the components of the Borg Warner 13-56 Electronic Shift Transfer Case and system on Ford F-250?A: The Borg Warner 13-56 Electronic Shift system has components like an electronic control module, 4WD switch, wire harness, Neutral Safety Switch, speed sensor, shift motor, front drive gear clutch, shift cam, and a transfer case. When you press the switch, the module looks at the sensors to make sure the vehicle is in 2WD mode and within the speed limit. If so, the module activates the clutch to synchronize the drive lines and the motor rotates the shift drum to engage 4WD. After the shift, the module verifies the mode and lights up the indicator. For 4WD low, the module ensures the vehicle is stationary and neutral before engaging the shift motor.
- Q: How do you remove the transfer case on Ford F-250?A: To remove the transfer case, start by raising the vehicle and supporting it securely on jackstands. Drain the transfer case fluid if necessary. Disconnect the 4WD drive Indicator switch electrical connector or the shift motor harness electrical connector, depending on the model. Remove the speedometer cable and gear assembly if applicable. Disconnect the vent hose from the transfer case. Disconnect the transfer case shift rod link. Remove the skid plate if equipped. Unbolt the heat shield from the transfer case. Disconnect the front and rear driveshafts and tie them securely out of the way. Support the transfer case with a transmission jack. Remove the bolts retaining the transfer case to the transmission adapter. Carefully move the transfer case to the rear until the input shaft clears the adapter, then lower the assembly from the vehicle and remove the gasket between the transfer case and adapter. To install, reverse the removal procedure, making sure to check and fill the transfer case with the correct grade and quantity of lubricant. Tighten the fasteners to the specified torque.
- Q: What are some suggestions for diagnosing and repairing a 4WD related problem with the transfer case on Ford F-250?A: Before attributing 4WD problems to the transfer case, eliminate any issues from engine, transmission, driveline, axles, brakes, hubs, or tires. Remember, driveline windup in 4WD mode can cause hop, skips, bounces, and delayed shifts, worsened by slightly different tire sizes or wear. If a transfer case overhaul is needed, consider replacement with a new or rebuilt unit. For DIY repairs, document disassembly, ensure cleanliness, pre-lubricate parts, test the case for abnormalities before reinstalling, and use the correct fluid. Avoid testing 4WD mode on the street; instead use dirt, sand, or mud.
