Genuine Ford Focus Brake Shoe
Brake Shoe Set- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
8 Brake Shoes found
Ford Focus Kit - Brake Lining
Part Number: BV6Z-2200-A$65.99 MSRP: $99.98You Save: $33.99 (34%)Ships in 1-2 Business Days
Ford Focus Kit - Brake Shoe And Lining
Part Number: 6S4Z-2200-B$45.59 MSRP: $66.65You Save: $21.06 (32%)
Ford Focus Kit - Brake Shoe And Lining
Part Number: YU2Z-2V200-BARM$45.59 MSRP: $66.65You Save: $21.06 (32%)
Ford Focus Kit - Brake Shoe And Lining

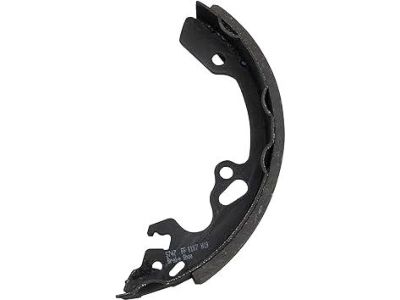

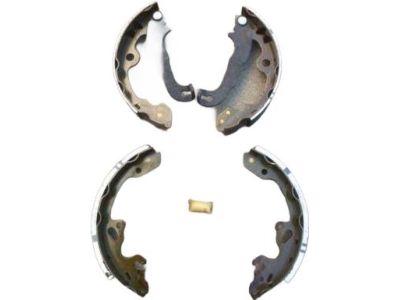

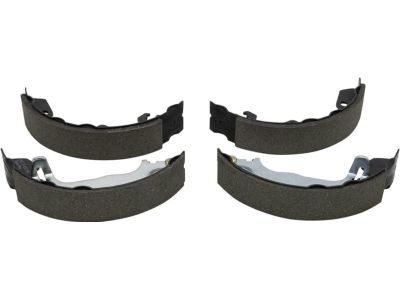

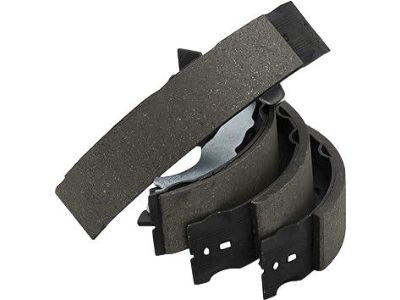

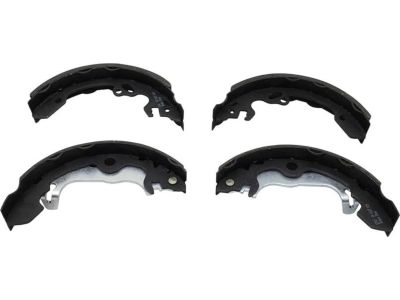

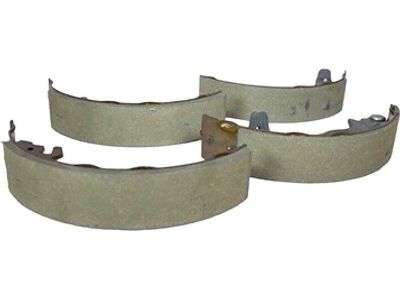

Part Number: 6S4Z-2200-A$45.59 MSRP: $66.65You Save: $21.06 (32%)
Ford Focus Brake Shoe
It is fit on the drum brake system to produce the friction needed to slow down the Ford Focus, said Brake Shoe. These consist of brake shoes that come into contact with a brake drum whereby they exert force and hence resistance that has the tendency of converting energy into heat energy. This mechanism is very important for a car's braking working for those that still use a drum brake system in the rear. In the past decade, the brake shoe front of Ford Focus car model has had a number of varieties of the non-servo and the dues servo. Duo-servo brake arrangement is also self energizing, but they have substantially better braking effect due to the design that allows the turning of the braking drum the pulling of the shoe closer to the drum. Checking and replacing the linings of the Brake Shoe every now and then is recommended to maintain high performance and to avoid accidents which may be caused by inefficiency of the brake system.
We provide a wide range of Ford Focus Brake Shoe at the best prices possible. If you need Ford Focus Brake Shoe, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.
Ford Focus Brake Shoe Parts Questions & Experts Answers
- Q: How do you replace the rear brake shoes on Ford Focus?A: Chock the front wheels, release the parking brake, and engage 1st gear or P. Loosen the relevant wheel nuts, jack up the rear of the vehicle, and support it on axle stands before removing the rear wheels. Work on one brake assembly at a time, using the assembled brake for reference if necessary. Disconnect the ABS wiring connector if installed, then remove the rear Brake Drum and hub assembly by unscrewing the four bolts at the rear of the hub assembly to prevent damage to the wheel bearings. Note the installed position of the springs and brake shoes, clean the components with brake cleaner, and allow them to dry while positioning a tray beneath the back plate to catch fluid and residue. Remove the two shoe hold-down springs using pliers to depress the ends, then take out the hold-down pins from the back plate. Disconnect the top ends of the shoes from the Wheel Cylinder, taking care not to damage the rubber boots, and to prevent the wheel cylinder pistons from being accidentally ejected, install a suitable elastic band or wire over the cylinder/pistons, avoiding pressing the brake pedal while the shoes are removed. Pull the bottom end of the brake shoes from the bottom anchor, using pliers or an adjustable wrench if needed, then pull the parking brake cable spring back from the operating lever on the rear of the trailing shoe, unhook the cable end from the cut-out in the lever, and remove the brake shoes. On a clean bench, move the bottom ends of the brake shoes together and unhook the lower return spring, noting the location holes. Pull the leading shoe from the strut and brake shoe adjuster, unhook the upper return spring, and pull the adjustment strut to release it from the trailing brake shoe while removing the strut support spring. Inspect the wheel cylinder for signs of fluid leakage or defects. Clean the back plate and apply small amounts of high-melting-point brake grease to the brake shoe contact points, avoiding grease on any friction surfaces. Lubricate the sliding components of the brake shoe adjuster with high-melting-point brake grease, leaving the serrations on the eccentric cam clean. Install the new brake shoes by reversing the removal procedure, setting the eccentric cam at its lowest position before assembling it to the trailing shoe, and inspect the drum before replacing it. With the drum in position and all securing bolts and nuts tightened to their specified torque, install the wheel and carry out the replacement procedure on the remaining rear brake. Lower the vehicle to the ground and tighten the wheel nuts to the specified torque. Depress the brake pedal several times to operate the self-adjusting mechanism and set the shoes at their normal operating position. Make several forward and reverse stops, operate the parking brake fully two or three times, and adjust the parking brake as required. Finally, conduct a road test to ensure the brakes are functioning correctly and to seat the new shoes to the contours of the drum, noting that full braking efficiency will not be achieved until they have seated.
