How to replace Rack and Pinion Boot on Ford Focus?

On 2008 and later models, the manufacturer also specifies that all suspension and steering system fasteners that should have specified torque are to be replaced with new ones any time that they are removed apart from subframe bolts. Commence the procedure by the removal of the tie-rod end and its lock nut while remembering the position of the tie-rod end to enable correct alignment of the front wheel upon reassembly. Subsequently, pop the outer and inner retaining clips and unclasp the Rack and Pinion Boot from the steering gear housing. Remove the breather from the boot and pull the boot off the tie-rod, releasing all the tension in the process. Gear grease should then be applied on the tie-rod inner joint and the seating areas on the steering gear housing as well as the tie-rod should be cleaned. Push the new boot over the tie-rod and steering gear housing and fit the breather pipe into the boot. Place new inner and outer retaining clips after that put the tie-rod end. Last of all, the front wheel alignment should be checked and readjusted as early as possible if it has been damaged.

Genuine Ford Focus Rack and Pinion Boot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Rack and Pinion Boots found

View related parts

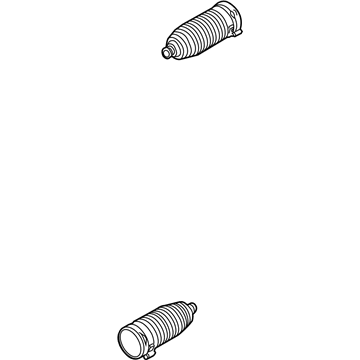

Ford Focus Kit - Boot
Part Number: 9S4Z-3K661-B
$34.56 MSRP: $47.23
You Save: $12.67 (27%)
ADD TO CART
Product Specifications
- Other Name: Boot, Tie Rod Boot
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2011 Ford Focus | 4 Cyl 2.0L Duratec HE | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

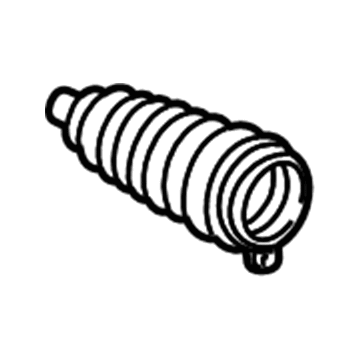

Ford Focus Boot
Part Number: 3M5Z-3K661-A
$26.33 MSRP: $37.50
You Save: $11.17 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tie Rod Boot
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2018 Ford Focus | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 2.0L DI TIVCT Petrol, 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.3L Ecoboost, Electric Motor | 1-Speed Transmission, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Boot
Part Number: 6S4Z-3K661-A
$50.82 MSRP: $70.60
You Save: $19.78 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tie Rod Boot
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2008 Ford Focus | 4 Cyl 2.0L Duratec HE, 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Boot
Part Number: YS4Z-3K661-BB
Product Specifications
- Other Name: Tie Rod Boot
- Replaces: YS4Z-3K661-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2006 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.0L CVH EFI, 4 Cyl 2.0L Duratec HE, 4 Cyl 2.0L Zetec EFI, 4 Cyl 2.0L Zetec VVT, 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, 4AT 4F27E, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 5MT, 6-Speed Manual Transmission, 6MT, Front-Wheel Drive (Left Hand Drive), Left Hand Drive

Ford Focus Rack and Pinion Boot

In this type of car manufacture, the Rack and Pinion Boot is essential in protecting the steering rack from all kinds of dirt and any other substance. One of these rubber part creates a shielding layer at both ends of the rack in a bid to keep the interior parts clean and operational. If the Rack and Pinion Boot is worn out or has developed crack on it then the rack and pinion system becomes more susceptible of failure. There are different types of Rack and Pinion Boot used in Ford Focus for the long period though, the differences of these types are not described here. The primary function remains consistent across all versions: in order to keep the path of movement clean and free of interference and preserve the structural soundness of the steering system. The Rack and Pinion Boot is one of the most important aspects in steering system of a Ford Focus and its maintenance is critically important in keeping the Ford Focus steering system functioning properly.

We provide a wide range of Ford Focus Rack and Pinion Boot at the best prices possible. If you need Ford Focus Rack and Pinion Boot, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Focus Rack and Pinion Boot Parts Questions & Experts Answers

Boot
YS4Z-3K661-BB
Q: How to replace Rack and Pinion Boot on Ford Focus?
A: On 2008 and later models, the manufacturer also specifies that all suspension and steering system fasteners that should have specified torque are to be replaced with new ones any time that they are removed apart from subframe bolts. Commence the procedure by the removal of the tie-rod end and its lock nut while remembering the position of the tie-rod end to enable correct alignment of the front wheel upon reassembly. Subsequently, pop the outer and inner retaining clips and unclasp the Rack and Pinion Boot from the steering gear housing. Remove the breather from the boot and pull the boot off the tie-rod, releasing all the tension in the process. Gear grease should then be applied on the tie-rod inner joint and the seating areas on the steering gear housing as well as the tie-rod should be cleaned. Push the new boot over the tie-rod and steering gear housing and fit the breather pipe into the boot. Place new inner and outer retaining clips after that put the tie-rod end. Last of all, the front wheel alignment should be checked and readjusted as early as possible if it has been damaged.
