How to remove and install the electronic speed sensor on Ford Focus?

The Focus features an electronic speedometer, utilizing an electronic sensor in the transaxle instead of the older cable-driven mechanical type. This sensor transmits the speed signal to the instrument panel through the engine management PCM, which also uses the signal for fuel system-related calculations. To access the speed sensor, apply the parking brake, loosen the left-hand front wheel nuts, and lift the front of the car on axle stands. After removing the left-hand front wheel and the fenderwell liner, the sensor can be found next to the right-hand drive axle at the rear of the transaxle. Disconnect the wiring plug from the top of the sensor, then use needle-nose pliers to remove the retaining pin at the base of the sensor, taking note of its installation. Carefully pull the sensor out of the transaxle, expecting some oil spillage, and recover the O-ring seal, replacing it if necessary. For installation, reverse the removal steps, ensuring to lightly oil the O-ring before placing the assembly back into the transaxle casing.

Genuine Ford Focus Vehicle Speed Sensor

VSS

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Vehicle Speed Sensors found

View related parts

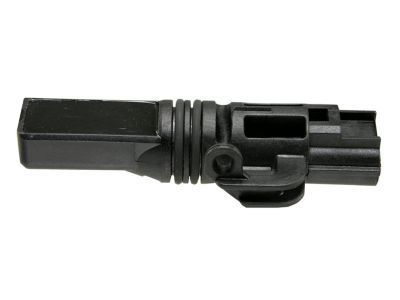

Ford Focus Sensor Assembly - Tripminder
Part Number: 97BZ-9E731-AA
$111.02 MSRP: $236.36
You Save: $125.34 (54%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assy - Tripminder; Sensor, Vehicle Speed Sensor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2011 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.0L CVH EFI, 4 Cyl 2.0L Duratec HE, 4 Cyl 2.0L Zetec EFI, 4 Cyl 2.0L Zetec VVT, 4 Cyl 2.3L | 4AT 4F27E, 5MT, 5-Speed Manual Transmission - MTX75, 6MT, 6-Speed Manual Transmission, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

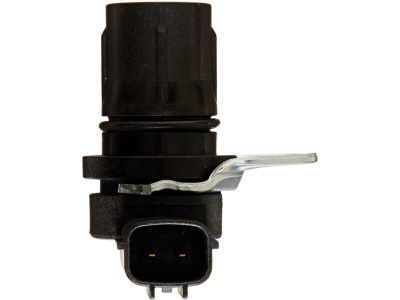

Ford Focus Sensor - Turbine Shaft Speed
Part Number: DL8Z-7M101-A
$25.54 MSRP: $40.73
You Save: $15.19 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Turbine Shaft Speed - Tss; Input Sensor, Vehicle Speed Sensor
- Manufacturer Note: Sensor - Turbine Shaft Speed
- Replaces: 9L8Z-7M101-B, 9L8Z-7M101-A, DY-1240
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2018 Ford Focus | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 2.0L DI TIVCT Petrol, 4 Cyl 2.0L EcoBoost (240PS) , Electric Motor | 6-Speed Automatic Transmission 6F15, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

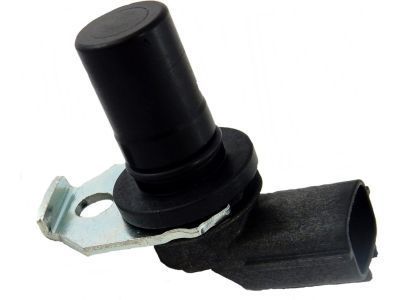

Ford Focus Sensor - Output Shaft Speed
Part Number: AE8Z-7H103-A
$49.39 MSRP: $81.64
You Save: $32.25 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Sensor - Output Shaft Speed
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2018 Ford Focus | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 2.0L DI TIVCT Petrol, 4 Cyl 2.0L EcoBoost (240PS) , Electric Motor | 6-Speed Automatic Transmission DPS6, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

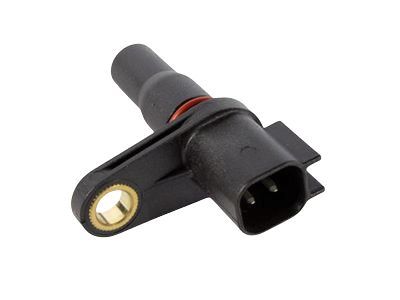

Ford Focus Sensor - Output Shaft Speed
Part Number: CC3Z-7H103-B
$54.23 MSRP: $89.64
You Save: $35.41 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Input Sensor, Output Sensor, Vehicle Speed Sensor
- Replaces: 9L8Z-7H103-B, DY-1220, CC3Z-7H103-A, DY-1224
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2018 Ford Focus | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 2.0L DI TIVCT Petrol, 4 Cyl 2.0L EcoBoost (240PS) , Electric Motor | 6-Speed Automatic Transmission 6F15, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Sensor Assembly - Engine Speed
Part Number: 8S4Z-7H103-A
$52.07 MSRP: $103.45
You Save: $51.38 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Vehicle Speed Sensor
- Replaces: 5S4Z-7H103-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2011 Ford Focus | 4 Cyl 2.0L Duratec HE, 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Sensor - Turbine Shaft Speed - TSS
Part Number: 8S4Z-7M101-A
$39.67 MSRP: $63.27
You Save: $23.60 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Vehicle Speed Sensor
- Manufacturer Note: Sensor - Turbine Shaft Speed
- Replaces: 5S4Z-7M101-AA, XS4Z-7M101-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2011 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.0L CVH EFI, 4 Cyl 2.0L Duratec HE, 4 Cyl 2.0L Zetec EFI, 4 Cyl 2.0L Zetec VVT, 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, 4AT 4F27E, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Sensor Assembly - Tripminder
Part Number: YS4Z-9E731-AB
$153.60 MSRP: $498.18
You Save: $344.58 (70%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assy - Tripminder; Vehicle Speed Sensor
- Replaces: YS4Z-9E731-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2004 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.0L CVH EFI | 4AT 4F27E, 5-Speed Manual Transmission - B5/IB5, 5MT, 6MT, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Sensor Assembly - Tripminder
Part Number: YS4Z-9E731-AA
$248.66 MSRP: $498.18
You Save: $249.52 (51%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Sensor Assy - Tripminder
- Manufacturer Note: Contactless sensor, non gear driven, 98AB-9E731-A*, SPI, IB5 5spd Manual Transmission
- Replaced by: YS4Z-9E731-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2003 Ford Focus | 4 Cyl 2.0L | 4AT 4F27E, 5MT, 6MT
View related parts
Ford Focus Sensor Assy - Engine Speed
Part Number: 5S4Z-7H103-AA
$52.07 MSRP: $103.45
You Save: $51.38 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 8S4Z-7H103-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Ford Focus | 4 Cyl 2.0L Duratec HE, 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, Front-Wheel Drive (Left Hand Drive), Left Hand Drive

Ford Focus Vehicle Speed Sensor

The case of Ford Focus vehicles would reveal that the Vehicle Speed Sensor was vital in the measurement of the vehicle's speed as well as the rotational speed of the wheels. This data is crucial for the vehicle Vehicle Speed Sensor (VSS) and wheel Vehicle Speed Sensors (WSS) in relaying information to a computer modules to modify specific functions of systems such as of the engine and the anti-lock braking system (ABS). In Ford Focus models, both passive and active types of wheel Vehicle Speed Sensors have been used in the course of years. Passive sensors create sinusoidal signals based on magnetic interference While active sensors add to this with signal conditioning of the different outputs. The development of these Vehicle Speed Sensors has enhanced their stability and efficacy of the performance of vehicles under different circumstances.

We provide a wide range of Ford Focus Vehicle Speed Sensor at the best prices possible. If you need Ford Focus Vehicle Speed Sensor, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Focus Vehicle Speed Sensor Parts Questions & Experts Answers

Sensor Assembly - Engine Speed
8S4Z-7H103-A
Q: How to remove and install the electronic speed sensor on Ford Focus?
A: The Focus features an electronic speedometer, utilizing an electronic sensor in the transaxle instead of the older cable-driven mechanical type. This sensor transmits the speed signal to the instrument panel through the engine management PCM, which also uses the signal for fuel system-related calculations. To access the speed sensor, apply the parking brake, loosen the left-hand front wheel nuts, and lift the front of the car on axle stands. After removing the left-hand front wheel and the fenderwell liner, the sensor can be found next to the right-hand drive axle at the rear of the transaxle. Disconnect the wiring plug from the top of the sensor, then use needle-nose pliers to remove the retaining pin at the base of the sensor, taking note of its installation. Carefully pull the sensor out of the transaxle, expecting some oil spillage, and recover the O-ring seal, replacing it if necessary. For installation, reverse the removal steps, ensuring to lightly oil the O-ring before placing the assembly back into the transaxle casing.
