How to remove and install Intake Manifold in four cylinder engine on Ford Fusion?

To remove the intake manifold, first relieve the fuel system pressure. If equipped, lift the engine cover off the ballstuds and remove it. Disconnect the cable from the negative battery terminal. Remove the air cleaner outlet hose and, for 1.5L models, take out the air filter housing. For 1.5L, 1.6L, and 2.3L engines, remove the alternator. Disconnect the electrical connectors for the swirl control, throttle body, MAP sensor, and oil pressure sender, then remove the air intake duct from the throttle body. On turbocharged models, remove the Charge Air Cooler (CAC) inlet and outlet tubes, and for 1.5L models, take out the CAC from the intake manifold. For 2.0L models, disconnect the electrical connectors for the throttle body, Fuel Rail Pressure (FRP) sensor, and the Manifold Absolute Pressure (MAP) sensor. Disengage the EVAP line and heater hose retainers underneath the manifold, then remove the EVAP canister purge valve. On later models, release the vacuum hoses from the intake manifold by depressing the red quick-connect lock ring while pulling the hose upward. For 2013 and later 2.5L models, squeeze the two crankcase vent oil separator tube tabs and disconnect the tube from the back side of the intake manifold. If equipped, disconnect the AIR pump connector and remove the pump. Release the harness clips and set aside the wiring harness at the top of the intake manifold. For 1.5L engines, remove the turbocharger outlet pipe. For 2.0L, 2.3L, and 2.5L engines, remove the fuel rail heat shield if equipped. Remove the intake manifold fasteners and pull the intake manifold away from the engine enough to access and disconnect the EGR pipe if equipped, and the crankcase vent hose from the oil separator, squeezing the two clips on the vent hose to release it. Note that there are two sizes of bolts, so make note of their original installation locations. For installation, 2.0L, 2.3L, and 2.5L engines require individual gaskets for each of the four ports of the intake manifold, while 1.5L and 1.6L engines use one gasket for all ports. Using new manifold gasket(s), install the intake manifold, tightening the bolts in sequence for 1.5L engines, and for other models, tighten the bolts and nuts in several stages, working from the center out. Installation is otherwise the reverse of removal.

Genuine Ford Fusion Intake Manifold

Engine Intake Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

23 Intake Manifolds found

View related parts

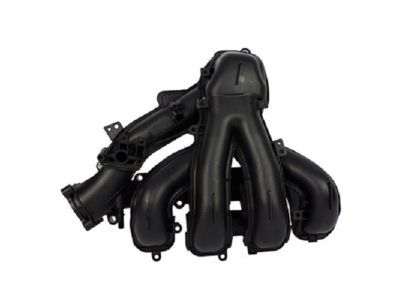

Ford Fusion Manifold Assembly - Inlet
Part Number: FT4Z-9424-A
$68.74 MSRP: $100.50
You Save: $31.76 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet
- Replaced by: FT4Z-9424-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Fusion | 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

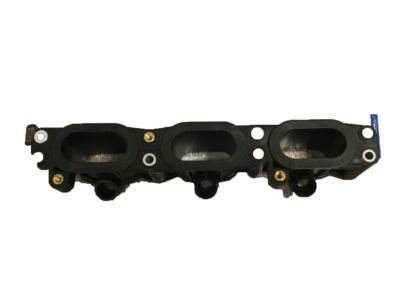

Ford Fusion Manifold Assembly - Inlet
Part Number: FT4Z-9424-E
$66.33 MSRP: $100.50
You Save: $34.17 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Replaces: FT4Z-9424-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

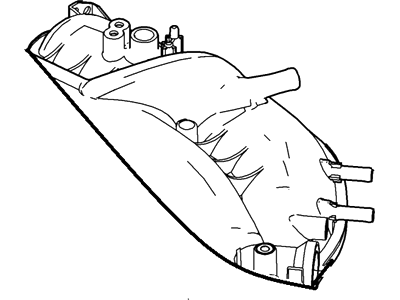

Ford Fusion Manifold Assembly - Inlet
Part Number: 9E5Z-9424-A
$147.62 MSRP: $183.33
You Save: $35.71 (20%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet
- Replaced by: 9E5Z-9424-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010 Ford Fusion | 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

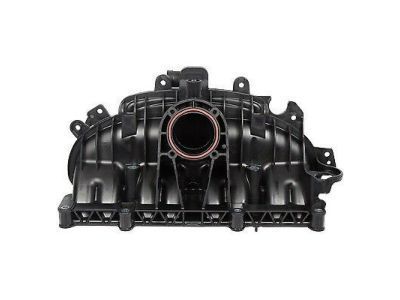

Ford Fusion Manifold Assembly - Inlet
Part Number: CJ5Z-9424-E
$39.53 MSRP: $72.00
You Save: $32.47 (46%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Fusion | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

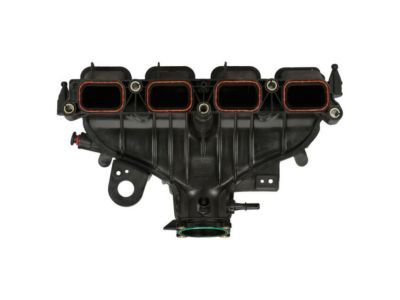

Ford Fusion Manifold Assembly - Inlet
Part Number: 9E5Z-9424-C
$125.40 MSRP: $183.33
You Save: $57.93 (32%)
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Replaces: 9E5Z-9424-A, 9E5Z-9424-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

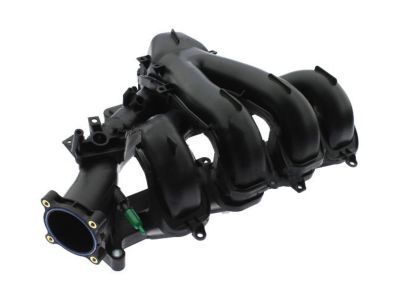

Ford Fusion Manifold Assembly - Inlet
Part Number: BM5Z-9424-A
$119.84 MSRP: $178.33
You Save: $58.49 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2015 Ford Fusion | 4 Cyl 1.6L PI TC ETHNL | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

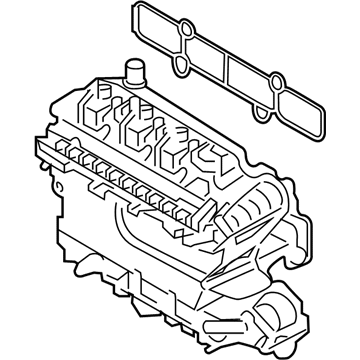

Ford Fusion Manifold Assembly - Inlet
Part Number: DS7Z-9424-C
$106.93 MSRP: $156.33
You Save: $49.40 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet
- Replaced by: DS7Z-9424-M
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014-2019 Ford Fusion | 4 Cyl 1.5L GTDI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

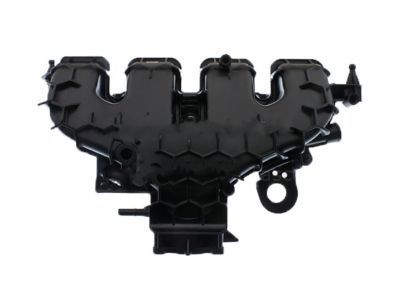

Ford Fusion Manifold Assembly - Inlet
Part Number: 9L8Z-9424-A
$104.65 MSRP: $153.00
You Save: $48.35 (32%)
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | 6 Cyl 3.0L OHC Duratec | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: CJ5Z-9424-G
$54.87 MSRP: $78.83
You Save: $23.96 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Replaces: CJ5Z-9424-B, CJ5Z-9424-C, CJ5Z-9424-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L GAS | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- 2013 Ford Fusion | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: CJ5Z-9424-D
$54.87 MSRP: $78.83
You Save: $23.96 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet
- Replaced by: CJ5Z-9424-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Fusion | 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: DS7Z-9424-A
$52.70 MSRP: $96.00
You Save: $43.30 (46%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet
- Replaced by: DS7Z-9424-L
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Fusion | 4 Cyl 2.0L Duratec Hybrid (130kW) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: DS7Z-9424-L
$52.70 MSRP: $96.00
You Save: $43.30 (46%)
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Replaces: DS7Z-9424-A, DS7Z-9424-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.5 L GAS | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: CJ5Z-9424-C
$54.87 MSRP: $78.83
You Save: $23.96 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet
- Replaced by: CJ5Z-9424-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013 Ford Fusion | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet

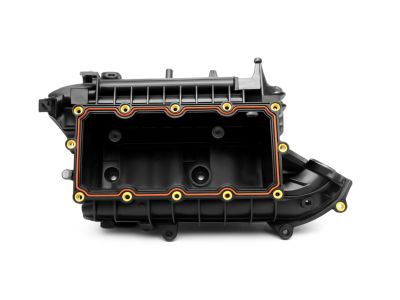

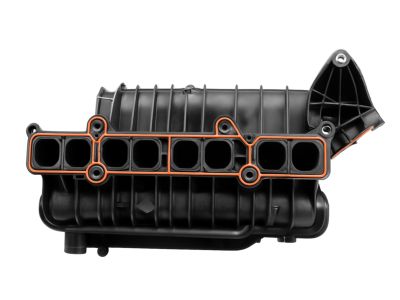

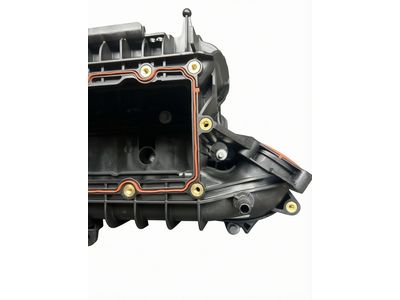

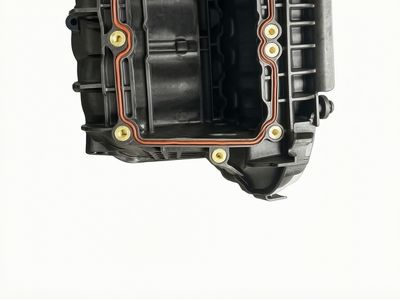

Part Number: DS7Z-9424-M
$106.93 MSRP: $156.33
You Save: $49.40 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MANIFOLD ASY - INLET; Intake Manifold
- Replaces: DS7Z-9424-E, DS7Z-9424-G, DS7Z-9424-J, DS7Z-9424-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: DS7Z-9424-D
$193.80 MSRP: $283.33
You Save: $89.53 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Replaces: DS7Z-9424-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: 9E5Z-9424-B
$125.40 MSRP: $183.33
You Save: $57.93 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assy - Inlet
- Replaced by: 9E5Z-9424-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011 Ford Fusion | 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: 7T4Z-9424-C
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Position: Lower
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2012 Ford Fusion | 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: 7T4Z-9424-D
$129.96 MSRP: $190.00
You Save: $60.04 (32%)
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold, Intake Plenum
- Position: Upper
- Replaces: 7T4Z-9424-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2008 Ford Fusion | 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: 3F1Z-9424-AC
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Replaces: 3F1Z-9424-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2009 Ford Fusion | 6 Cyl 3.0L DOHC EFI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Manifold Assembly - Inlet
Part Number: 6E5Z-9424-BA
Product Specifications
- Other Name: Manifold Assy - Inlet; Intake Manifold
- Replaces: 5M8Z-9424-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2009 Ford Fusion | 6 Cyl 3.0L DOHC EFI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive

| Page 1 of 2 |Next >

1-20 of 23 Results

Ford Fusion Intake Manifold

The Intake Manifold of Ford Fusion vehicles acts an essential factor that has the responsibility of delivering the air or air/fuel mixture to the cylinders within a specific engine so as to enhance the power in relation to the performance of the engine. It is aimed at providing the optimal possible intake air, using a range of technologies inclusive of variable length intake manifold (VLIM) that seeks to optimize the intake tract length according to the loads experienced by the engine. In the past, the Ford Fusion intake manifolds were either made from cast iron or aluminum but as of late, they have adopted a more light-weighted plastic material composite which is always more efficient both in fuel consumption and the temperatures of the air for better combustion. The sensors that are incorporated in the intake manifold help in enhancing the monitoring of the performance of engines. In a nutshell, both the design and the materials used in the Ford Fusion intake manifold have received some improvements that significantly improves the efficiency as well as the power output of the vehicle.

We provide a wide range of Ford Fusion Intake Manifold at the best prices possible. If you need Ford Fusion Intake Manifold, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Fusion Intake Manifold Parts Questions & Experts Answers

Manifold Assembly - Inlet
9L8Z-9424-A
Q: How to remove and install Intake Manifold in four cylinder engine on Ford Fusion?
A: To remove the intake manifold, first relieve the fuel system pressure. If equipped, lift the engine cover off the ballstuds and remove it. Disconnect the cable from the negative battery terminal. Remove the air cleaner outlet hose and, for 1.5L models, take out the air filter housing. For 1.5L, 1.6L, and 2.3L engines, remove the alternator. Disconnect the electrical connectors for the swirl control, throttle body, MAP sensor, and oil pressure sender, then remove the air intake duct from the throttle body. On turbocharged models, remove the Charge Air Cooler (CAC) inlet and outlet tubes, and for 1.5L models, take out the CAC from the intake manifold. For 2.0L models, disconnect the electrical connectors for the throttle body, Fuel Rail Pressure (FRP) sensor, and the Manifold Absolute Pressure (MAP) sensor. Disengage the EVAP line and heater hose retainers underneath the manifold, then remove the EVAP canister purge valve. On later models, release the vacuum hoses from the intake manifold by depressing the red quick-connect lock ring while pulling the hose upward. For 2013 and later 2.5L models, squeeze the two crankcase vent oil separator tube tabs and disconnect the tube from the back side of the intake manifold. If equipped, disconnect the AIR pump connector and remove the pump. Release the harness clips and set aside the wiring harness at the top of the intake manifold. For 1.5L engines, remove the turbocharger outlet pipe. For 2.0L, 2.3L, and 2.5L engines, remove the fuel rail heat shield if equipped. Remove the intake manifold fasteners and pull the intake manifold away from the engine enough to access and disconnect the EGR pipe if equipped, and the crankcase vent hose from the oil separator, squeezing the two clips on the vent hose to release it. Note that there are two sizes of bolts, so make note of their original installation locations. For installation, 2.0L, 2.3L, and 2.5L engines require individual gaskets for each of the four ports of the intake manifold, while 1.5L and 1.6L engines use one gasket for all ports. Using new manifold gasket(s), install the intake manifold, tightening the bolts in sequence for 1.5L engines, and for other models, tighten the bolts and nuts in several stages, working from the center out. Installation is otherwise the reverse of removal.
