How to remove and install the shift cable, and how do you adjust it on Lincoln Navigator?

To reinstall or replace the shift cable, one has to disengage the cable from the steering column shift tube lever or the steering column bracket followed by the rubber grommet and the cable shift through the firewall. If the car has an air suspension, it is necessary to turn the mode off again, and the button for this is located near the right kick panel. Lift the vehicle well on jackstands and then disconnect the shift cable from the manual lever, When doing this use the cover on the 2005 and later model, Expedition/Navigatior to access the ball-stud. Next, shift the reverse cable away for the reverse cable bracket. For installation, backtrack the removal process but before connecting the cable back to the manual lever, ensure that the cable is in the correct position and if it is an air suspension system, then bring it back to functionality. For adjustment, slide the shift lever to the Drive position, tape an eight-pound weight on the lever to keep it in place, turn the air suspension off if it exists and then jack up the vehicle on stands. Pull off the shift cable from the manual lever, turn the lock tab and place the manual lever to the 1st gear and then return to the drive. Bolt the shift cable back in place and engage the locking tab, finally, the air suspension should be turned back on if it has been deactivated. Lower the car and with the weight off the shift lever establish proper likeness between the gear indicator and lever position, whereby the engine should start only in the Park and Neutral and the back-up lights should go on in reverse. It is suggested that changing the position of the cable in such a manner that it satisfies these conditions or alteration in the transmission range sensor if necessary would be carried out.

Genuine Lincoln Navigator Shift Cable

Transmission Shift Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Shift Cables found

View related parts

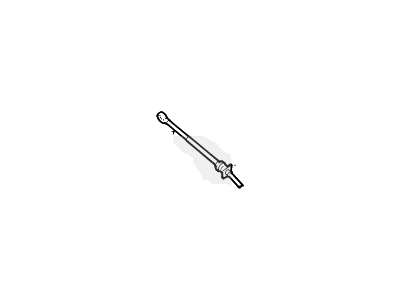

Lincoln Navigator Transmission Shift Control Cable Assembly
Part Number: YL3Z-7E395-AC
$71.48 MSRP: $104.50
You Save: $33.02 (32%)
ADD TO CART
Product Specifications
- Other Name: Cable Assy - Selector Lever Control; Shift Control Cable
- Manufacturer Note: 4R100, FROM 7/19/00
- Replaces: XL3Z-7E395-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2002 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100
View related parts

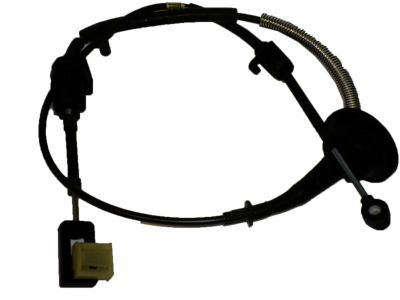

Lincoln Navigator Automatic Trans Shifter Cable
Part Number: FL1Z-7E395-B
$101.46 MSRP: $148.33
You Save: $46.87 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly - Selector Lever Control; Cable, Shift Control Cable
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2017 Lincoln Navigator | 6 Cyl 3.5L GTDI, 8 Cyl 5.4L | 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

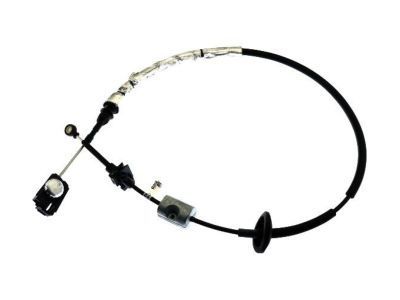

Lincoln Navigator Selector Lever Control Cable Assembly
Part Number: 7L1Z-7E395-D
$86.75 MSRP: $126.83
You Save: $40.08 (32%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly - Selector Lever Control; Cable, Shift Control Cable
- Replaces: 7L1Z-7E395-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2014 Lincoln Navigator | 8 Cyl 5.4L | 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

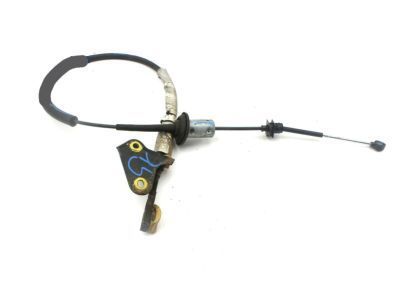

Lincoln Navigator Selector Lever Control Cable Assembly
Part Number: 2L7Z-7E395-AA
$87.01 MSRP: $131.83
You Save: $44.82 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assy - Selector Lever Control
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

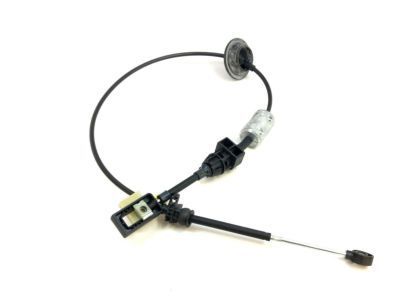

Lincoln Navigator Selector Lever Control Cable Assembly
Part Number: XL3Z-7E395-AB
$71.48 MSRP: $104.50
You Save: $33.02 (32%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly - Selector Lever Control
- Replaced by: YL3Z-7E395-AC
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2000 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100
View related parts

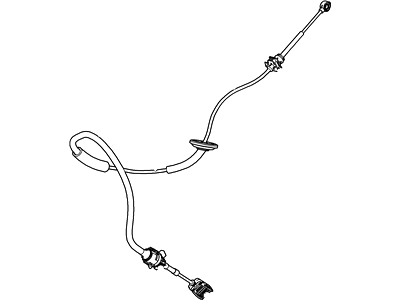

Lincoln Navigator Selector Lever Control Cable Assembly
Part Number: 7L1Z-7E395-C
$86.75 MSRP: $126.83
You Save: $40.08 (32%)
ADD TO CART
Product Specifications
- Other Name: Cable Assy - Selector Lever Control
- Replaced by: 7L1Z-7E395-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Lincoln Navigator | 8 Cyl 5.4L | 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

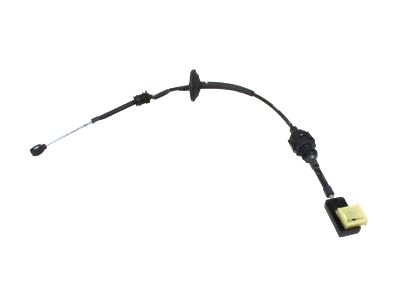

Lincoln Navigator Selector Lever Control Cable Assembly
Part Number: 5L7Z-7E395-AA
Product Specifications
- Other Name: Cable Assy - Selector Lever Control; Shift Control Cable
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Lincoln Navigator | 8 Cyl 5.4L | 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

Lincoln Navigator Shift Cable

We provide a wide range of Lincoln Navigator Shift Cable at the best prices possible. If you need Lincoln Navigator Shift Cable, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Lincoln Navigator Shift Cable Parts Questions & Experts Answers

Transmission Shift Control Cable Assembly
YL3Z-7E395-AC
Q: How to remove and install the shift cable, and how do you adjust it on Lincoln Navigator?
A: To reinstall or replace the shift cable, one has to disengage the cable from the steering column shift tube lever or the steering column bracket followed by the rubber grommet and the cable shift through the firewall. If the car has an air suspension, it is necessary to turn the mode off again, and the button for this is located near the right kick panel. Lift the vehicle well on jackstands and then disconnect the shift cable from the manual lever, When doing this use the cover on the 2005 and later model, Expedition/Navigatior to access the ball-stud. Next, shift the reverse cable away for the reverse cable bracket. For installation, backtrack the removal process but before connecting the cable back to the manual lever, ensure that the cable is in the correct position and if it is an air suspension system, then bring it back to functionality. For adjustment, slide the shift lever to the Drive position, tape an eight-pound weight on the lever to keep it in place, turn the air suspension off if it exists and then jack up the vehicle on stands. Pull off the shift cable from the manual lever, turn the lock tab and place the manual lever to the 1st gear and then return to the drive. Bolt the shift cable back in place and engage the locking tab, finally, the air suspension should be turned back on if it has been deactivated. Lower the car and with the weight off the shift lever establish proper likeness between the gear indicator and lever position, whereby the engine should start only in the Park and Neutral and the back-up lights should go on in reverse. It is suggested that changing the position of the cable in such a manner that it satisfies these conditions or alteration in the transmission range sensor if necessary would be carried out.
