How to remove and replace the compressor in a Mercury Cougar?

Ford recommends replacing the orifice tube and accumulator whenever the compressor is replaced. To remove the compressor, first have the air conditioning system discharged and disconnect the negative battery cable. Then, disconnect the compressor clutch wiring harness and remove the drivebelt. Disconnect the refrigerant lines from the rear of the compressor, either by using a special tool for "spring lock" type couplings or by unbolt the lines. Make sure to plug the open fittings to prevent dirt and moisture from entering. Unbolt the compressor from the mounting brackets and lift it out of the vehicle. If installing a new compressor, follow the directions for draining excess oil. When installing, replace any O-rings with new ones made for the purpose and lubricate them with refrigerant oil. Finally, have the system evacuated, recharged, and leak tested by the shop that discharged it.

Genuine Mercury Cougar A/C Compressor

Air Conditioning Compressor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 A/C Compressors found

View related parts

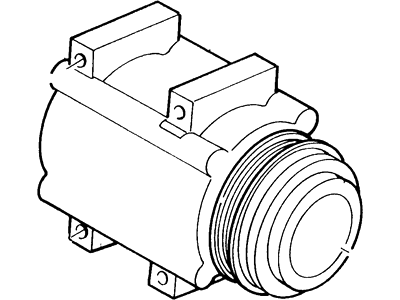

Mercury Cougar Compressor Assembly
Part Number: 5U2Z-19V703-HD
Product Specifications
- Other Name: Compressor Assy
- Manufacturer Note: New Loaded Compressor Assembly. Includes Clutch (19D786), Coil (19D798), Pulley (19D784) And Oil
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1997 Mercury Cougar | 6 Cyl 3.8L | 4AT, 4AT 4R70W, 4AT AOD, 4AT AODE, 5MT
View related parts
Mercury Cougar Compressor Assembly
Part Number: 5U2Z-19V703-JD
Product Specifications
- Other Name: Compressor Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1991-1993 Mercury Cougar | 8 Cyl 5.0L | 4AT AOD
View related parts

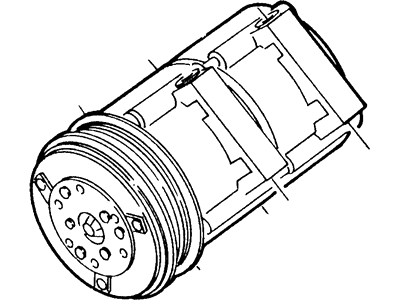

Mercury Cougar Compressor Assembly
Part Number: 5U2Z-19V703-RA
Product Specifications
- Other Name: Compressor Assy
- Manufacturer Note: New Loaded Compressor Assembly. Includes Clutch (19D786), Coil (19D798), Pulley (19D784) And Oil
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2002 Mercury Cougar | 4 Cyl 2.0L | 4AT CD4E, 5MT
View related parts
Mercury Cougar Compressor Assembly
Part Number: 5U2Z-19V703-TA
Product Specifications
- Other Name: Compressor Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2002 Mercury Cougar | 6 Cyl 2.5L | 4AT CD4E, 5MT

Mercury Cougar A/C Compressor Parts Questions & Experts Answers

Compressor Assembly
5U2Z-19V703-HD
Q: How to remove and replace the compressor in a Mercury Cougar?
A: Ford recommends replacing the orifice tube and accumulator whenever the compressor is replaced. To remove the compressor, first have the air conditioning system discharged and disconnect the negative battery cable. Then, disconnect the compressor clutch wiring harness and remove the drivebelt. Disconnect the refrigerant lines from the rear of the compressor, either by using a special tool for "spring lock" type couplings or by unbolt the lines. Make sure to plug the open fittings to prevent dirt and moisture from entering. Unbolt the compressor from the mounting brackets and lift it out of the vehicle. If installing a new compressor, follow the directions for draining excess oil. When installing, replace any O-rings with new ones made for the purpose and lubricate them with refrigerant oil. Finally, have the system evacuated, recharged, and leak tested by the shop that discharged it.
