Genuine Mercury Grand Marquis Axle Shaft
Car Axle Shaft- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
8 Axle Shafts found

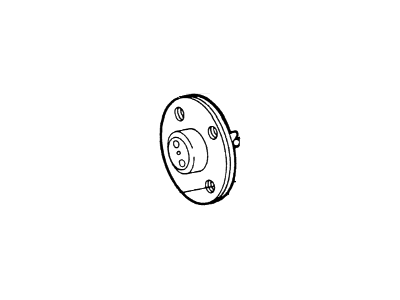

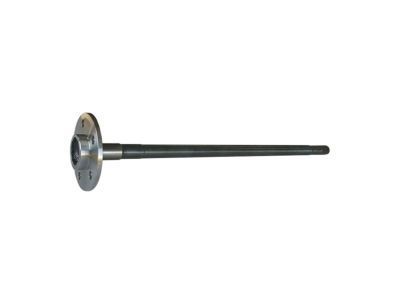

Mercury Grand Marquis Shaft Assembly - Rear Axle
Part Number: 3W1Z-4234-KA$202.37 MSRP: $371.67You Save: $169.30 (46%)
Mercury Grand Marquis Axle Shaft Parts Questions & Experts Answers
- Q: How do you remove the rear axle assembly on Mercury Grand Marquis?A: To remove the rear axle assembly, disconnect the battery cable, loosen lug nuts, raise the vehicle, remove wheels, brake components, and axle cover. Disconnect ABS sensors, axleshafts, brake lines, and backing plates. Unbolt driveshaft, raise axle, disconnect safety chain or air springs, remove shock absorbers and suspension arm bolts. Disconnect axle-locating arms, Watts-linkage assembly, and height sensor if applicable. Lower axle housing, remove coil springs or air springs. Lower suspension arm bolts, remove axle housing. For installation, raise axle, secure with suspension arm bolts, install springs, connect lower suspension arms. Raise axle to normal height, tighten suspension arm bolts, reattach height sensor if applicable. Connect shock absorbers, driveshaft, and backing plates. Reconnect sensor wires, brake lines, and parking brake cables. Install axleshafts, brake components, axle cover, and fill differential. Install wheels, lower vehicle, and tighten lug nuts.
- Q: How to remove and install the Axle Shaft on Mercury Grand Marquis?A: Loosen the wheel lug nuts, raise the rear of the vehicle, support it securely on jackstands and remove the wheel. Also remove the brake drum, or the caliper and disc. Remove the cover from the differential carrier and allow the lubricant to drain into a container. Remove the lock bolt from the differential pinion shaft. Slide the notched end of the pinion shaft out of the differential case as far as ii will go. Position a large screwdriver between the rear axle case and a ring gear bolt to keep the differential case from turning when removing the pinion shaft lock bolt. Rotate the differential case 180-degrees and slide the pinion shaft out of the case until the stepped part of the shaft contacts the ring gear. Push the outer (flanged) end of the axleshaft in and remove the C-lock from the inner end of the shaft. Take care to not damage the 0- rings in the axleshaft grooves when removing the C-clips. Withdraw the axleshaft, taking care not to damage the oil seal in the end of the axle housing as the splined end of the axleshaft passes through it. Do not rotate the differential while the pinion shaft is out, or the pinion gears could fall out. Installation is the reverse of removal. Tighten the differential pinion shaft lock bolt to the torque Specifications. Install the differential cover. Refill the axle with the correct quantity and grade of lubricant.
