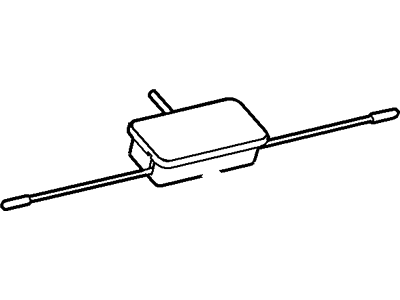

Ford 9G1Z-15603-A Aerial Assembly

You can Select Your Vehicle to check if 9G1Z-15603-A fits your vehicle.

If you do not have a fender mounted antenna, the AM/FM antenna is integrated into the windshield and is not serviceable on its own. The fender mounted antenna is specifically for AM and FM reception. To remove it, first take off the right front inner fender splash shield, then remove the antenna mast, boot, and bolt, followed by disconnecting the cable and removing the antenna. Installation follows the reverse order of removal. For the satellite antenna, the antenna cable runs from the radio up through the passenger-side windshield pillar under the headliner. To access it, lower the headliner, disconnect the antenna cable, remove the bolt securing the antenna to the roof, and then take the antenna off the roof, with installation also following the reverse order of removal.

2003 and later Expedition/Navigator models feature an antenna grid on the left-rear quarter-glass, eliminating the need for a mechanical antenna. To begin, remove the right front tire and the right front inner fenderwell. In the inner fenderwell opening, detach the antenna cable from the antenna base. If replacing the antenna, use a small wrench to remove the mast, pry off the antenna trim cap, and take out the screws securing the antenna to the body, ensuring to cover the fender with a rag or tape to prevent paint damage. For replacing the antenna cable, remove the cable retaining clip and push the cable and grommet assembly into the passenger compartment. Detach the radio and disconnect the antenna lead from the rear side of the radio. Remove any remaining cable retaining clips and pull the antenna cable out from under the dash. Installation follows the reverse order of removal.

Remove the antenna mast with a 10 mm wrench from its mounting base. Remove The Right scuff plate and right lower A-pillar trim panel. Working Under the right end of the dash, detach the two antenna cable clips and disconnect the antenna cable connector. Loosen The right front wheel lug nuts. Raise the vehicle and place it securely on jackstands. Remove the right front wheel. Remove the right inner fender splash shield. Working inside the fender area, remove the antenna cable grommet, pull the antenna cable into the fender area, remove the antenna support bracket nut, then pull the antenna mounting base down through its hole in the fender and remove the mounting base, support bracket and antenna as a single assembly. Remove The Electrical tape securing the antenna cable to the support bracket and discard the old antenna base and cable. Installation Is the reverse of removal. Remove the radio. Remove the right scuff plate and kick panel, then disconnect the inside part of the antenna cable from the outside cable. Remove the glove box. Detach the three pin-type retainers that secure the cable to the horizontal support brace located on the lower edge of the glove box recess. There are two more pin-type retainers securing the antenna cable to the vertical support brace that's located on the right side of the radio recess. Detach both of them. Remove the inside antenna cable. Installation is the reverse of removal.

2003 and later Expedition/Navigator models feature an antenna grid on the left-rear quarter-glass, eliminating the need for a mechanical antenna. To begin, remove the right front tire and the right front inner fenderwell. In the inner fenderwell opening, detach the antenna cable from the antenna base. If replacing the antenna, use a small wrench to remove the mast, pry off the antenna trim cap, and take out the screws securing the antenna to the body, ensuring to cover the fender with a rag or tape to prevent paint damage. For replacing the antenna cable, remove the cable retaining clip and push the cable and grommet assembly into the passenger compartment. Detach the radio and disconnect the antenna lead from the rear side of the radio. Remove any remaining cable retaining clips and pull the antenna cable out from under the dash. Installation follows the reverse order of removal.

Installation is a reversal of the removal procedure.

Remove the following components: Right kick panel Glove box Radio.

Remove the screws securing the antenna base to the body and slowly pull the antenna cable out through the body opening. Remove the antenna base and gasket.

Remove the radio. Disconnect the antenna cable from the back of the radio unit.

Pull the cable through the grommet hole into the wheel well.

If the antenna is damaged, it can be removed by turning it counterclockwise.

Detach the antenna lead retaining clips in the engine compartment.

The antenna cable runs from the radio up through the passenger-side windshield pillar under the headliner.

Working under the right end of the dash, detach the two antenna cable clips and disconnect the antenna cable connector.

Remove the radio and unplug the antenna lead cable.

1. Remove the glove box. 2. Disconnect the inner antenna cable from the outer antenna cable. 3. Detach the two inner antenna cable locator clips from the trim piece right below the glove box opening by carefully prying them loose with a trim removal tool. 4. Remove the radio and disconnect the inner antenna cable from the backside of the radio. 5. Installation is the reverse of removal.
