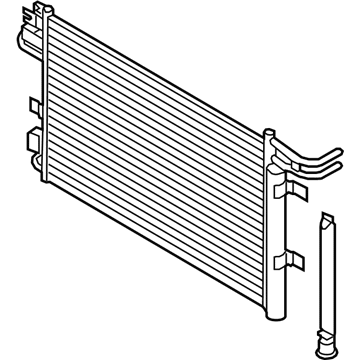

Ford DG1Z-19712-D Condenser Assembly

You can Select Your Vehicle to check if DG1Z-19712-D fits your vehicle.

The air conditioning condenser has an integrated receiver/drier, equipped with a receiver/drier desiccant bag. The receiver/drier desiccant bag may be removed and replaced with a new one (available from the dealer). Removal: Have the air conditioning system dis-charged by a dealer service department or an automotive air conditioning shop before proceeding. Remove the upper radiator grill and sight shield (if equipped). On 2007 and earlier models, unbolt the horn assembly and move it aside. On four-cylinder models, remove the radiator grille shutter. On V6 models, remove the radiator. On 2008 and later models, disconnect the transaxle cooler line clamps and disconnect the lines from the condenser core. Disconnect the refrigerant inlet and outlet pipes from the condenser, capping the lines to prevent contamination. Remove the bolt or nut securing the pipe fitting to the condenser. Remove the condenser. If reinstalling the original condenser, store it with the line fittings facing up to prevent oil from draining out. Installation: If installing a new condenser, pour one ounce of refrigerant oil of the correct type into it prior to installation. Before reconnecting the refrigerant lines to the condenser, coat a pair of new O-ring with refrigerant oil, install them in the refrigerant line fittings and tighten the condenser inlet and outlet nuts securely. Refill the transmission fluid as needed to the correct level. Installation is otherwise the reverse of removal. Have the system evacuated, recharge and leak tested by the shop that discharged it. Receiver/drier desiccant bag-replacement: Remove the condenser as previously described. Remove the threaded plug at the bottom left of the condenser. Using needle nose pliers, pull the desiccant bag out of the receiver/drier. Insert a new bag into the receiver drier. Install the plug and tighten it securely.
