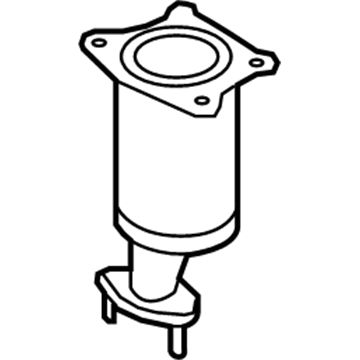

Ford 7T4Z-5E212-BC Catalytic Converter Assembly

You can Select Your Vehicle to check if 7T4Z-5E212-BC fits your vehicle.

To remove the catalytic converter on 2010 and later models with a 2SL four-cylinder engine and Non-Partial Zero Emissions (PZEV) vehicles, raise the vehicle and place it securely on jackstands. Disconnect the downstream oxygen sensor's electrical connector, unscrew and remove the downstream oxygen sensor from the catalyst. Remove the nuts and bolts securing the flange at the front end of the catalyst to the exhaust down pipe. Loosen the fasteners on the clamp securing the rear end of the catalyst to the exhaust system. Remove the catalytic converter and old gasket between the exhaust down pipe and the catalyst mounting flange. Installation is the reverse of removal, using a new gasket and, if necessary, new fasteners.

To replace the catalytic converter in four-cylinder engines, start by raising the vehicle and placing it securely on jackstands. Locate and disconnect the downstream oxygen sensor on the upper central part of the catalyst. Unscrew and remove the downstream oxygen sensor/catalyst sensor from the catalyst. Loosen the fasteners on the clamp that secures the front end of the catalyst to the turbocharger. Remove the nuts and bolts that secure the flange at the rear end of the catalyst to the exhaust pipe. Remove the catalytic converter and discard the old gasket between the exhaust down pipe and the catalyst mounting flange. Installation is the reverse of removal, using a new gasket and new fasteners if necessary.

To replace the catalytic converter in V6 engines, start by raising the front of the vehicle and placing it securely on jackstands. Remove the engine under-cover. Locate and disconnect the upstream and downstream oxygen sensors. Remove both oxygen sensors. If there is a heat shield on the catalyst or exhaust manifold, remove the heat shield bolts and remove the heat shield. Remove the fasteners that secure the heat shield mounting bracket and remove the bracket. Remove the fasteners that secure the catalyst's upper mounting flange to the exhaust manifold. Remove the fasteners that secure the lower mounting flange to the exhaust pipe. Pull the exhaust pipe down enough to clear the lower end of the catalyst. Remove the catalyst from the exhaust manifold and discard the old gaskets between the exhaust manifold flange and the upper catalyst flange, as well as between the lower catalyst flange and the exhaust pipe flange. Installation is the reverse of removal, using new flange gaskets.
