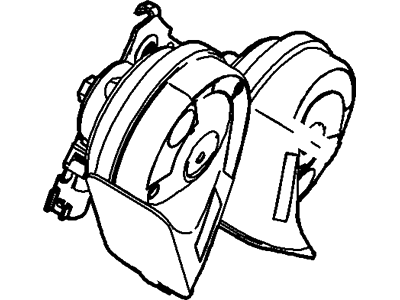

Ford 4S4Z-13832-BA Horn Assembly

You can Select Your Vehicle to check if 4S4Z-13832-BA fits your vehicle.

For 2009 and earlier models the horn is located behind the right side of the radiator grille. The first step is to pop off the radiator grille, next to disconnect the cables and to unbolt the horn. Fourth, I would pull the horn mounting bolt and take the horn off the bracket and finally the installation would be the reverse of the above process. On the 2010 and later models of Ranger, the horn assembly is found at the front of the vehicle at the lower part of the radiator support. To start with, lift the front part of the car to a suitable height and place jackstands that are firm and reliable. The horn assembly mounting bolt is removed next together with the electrical connectors, and the horn assembly is promptly pulled out from the truck; and, the process of installation is exactly the opposite of the mentioned steps.

For models from 2010 and earlier, the horns are located between the grille and the radiator. To access the horn, first remove the upper radiator cover. Next, take out the four radiator support bracket bolts and the two radiator support brackets, then push the upper end of the radiator and the condenser toward the engine. For 2011 and later models, raise the vehicle and support it securely on jackstands, then remove the lower splash shield underneath the radiator. For all models, remove the horn mounting bracket nuts or bolt to detach the horn assembly, then disconnect the electrical connector. Installation is the reverse of removal.

To remove the horn, unscrew the mounting bolt(s) and withdraw the horn with its mounting bracket from under the vehicle.
