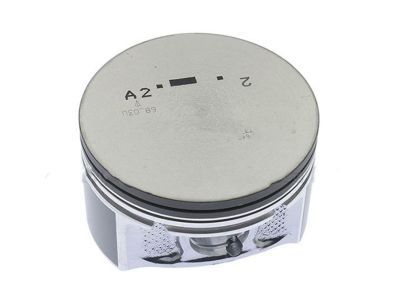

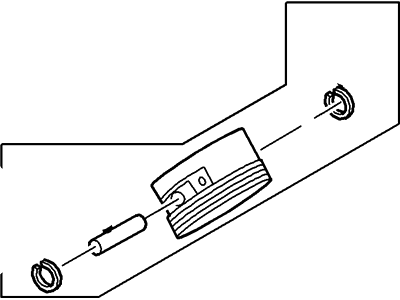

Ford 3L3Z-6108-CC Piston

You can Select Your Vehicle to check if 3L3Z-6108-CC fits your vehicle.

Before, the piston and connecting rod assemblies can be removed, the cylinder head(s), oil pan and oil pump on 5.4L engines have to be taken off depending on the type of engines being overhauled. A few of those models may include a sheet metal oil baffle plate secured with nuts to the main cap studs that must be removed. Push with the edge of a fingernail along a line 1 / 4 inch below the top of each cylinder where there should be a ring ridge; if the latter is worn or clogged with carbon, it must be machined out with a reamer before trying to extract the piston and its associated connecting rod as the former may break. After that, after the removal of the ridges, flip the engine over with the crankshaft horizontal. When the connecting rods are ready to be removed, check the end play with dial indicator or feeler gauges; the end play should not be over the service limit; if it is so, it means that a new set of connecting rods may be required. Tag the connecting rods and caps, turn the cap bolts with progressively lesser strength until they can be hand-turned. Both the connecting rod cap and the bearing insert must be taken off, but the latter part should be done carefully, as it is easy to lose it. The V6 and VS engines incorporate a fractured cap process in that the rod cap is matched to the connecting rod so that one cap will not fit another. As it is difficult to avoid scratches on the rod journals when disassembling or assembling, two of the rod cap bolts are to be machined to act as sleeves for the journals to reduce chances of scratching. New torque to yield design bolts will be used during the assembly request while the old ones should be disposed. Force the connecting rod/piston assembly through the top of the engine with a wooden or plastic hammer handle, if there is still some resistance, be sure to knock off all the ridges. Perform the same for the other cylinders as well Continue on this process until all the cylinders have been tested. After removal, reinsert the connecting rod caps and bearing inserts into its corresponding connecting rods ensuring that the cap nuts are only tightened by hand in order not to mar the bearing interfaces. It is for this reason that one has not to disconnect the pistons from the connecting rods.

Before, the piston and connecting rod assemblies can be removed, the cylinder head(s), oil pan and oil pump on 5.4L engines have to be taken off depending on the type of engines being overhauled. A few of those models may include a sheet metal oil baffle plate secured with nuts to the main cap studs that must be removed. Push with the edge of a fingernail along a line 1 / 4 inch below the top of each cylinder where there should be a ring ridge; if the latter is worn or clogged with carbon, it must be machined out with a reamer before trying to extract the piston and its associated connecting rod as the former may break. After that, after the removal of the ridges, flip the engine over with the crankshaft horizontal. When the connecting rods are ready to be removed, check the end play with dial indicator or feeler gauges; the end play should not be over the service limit; if it is so, it means that a new set of connecting rods may be required. Tag the connecting rods and caps, turn the cap bolts with progressively lesser strength until they can be hand-turned. Both the connecting rod cap and the bearing insert must be taken off, but the latter part should be done carefully, as it is easy to lose it. The V6 and VS engines incorporate a fractured cap process in that the rod cap is matched to the connecting rod so that one cap will not fit another. As it is difficult to avoid scratches on the rod journals when disassembling or assembling, two of the rod cap bolts are to be machined to act as sleeves for the journals to reduce chances of scratching. New torque to yield design bolts will be used during the assembly request while the old ones should be disposed. Force the connecting rod/piston assembly through the top of the engine with a wooden or plastic hammer handle, if there is still some resistance, be sure to knock off all the ridges. Perform the same for the other cylinders as well Continue on this process until all the cylinders have been tested. After removal, reinsert the connecting rod caps and bearing inserts into its corresponding connecting rods ensuring that the cap nuts are only tightened by hand in order not to mar the bearing interfaces. It is for this reason that one has not to disconnect the pistons from the connecting rods.

Piston-to-bore clearance is checked by measuring the bore and the piston diameter. The piston should be measured across the skirt, at a 90-degree angle to, and in line with the piston pin. The clearance is obtained by subtracting the piston diameter from the bore diameter.

Rotate the crankshaft a number of times by hand to check for any obvious binding.

Tap the top edge of the ring compressor to ensure it's contacting the block around its entire circumference.

Piston ring side clearance is measured by laying a new piston ring in each ring groove and using a feeler gauge beside it. The clearance should be checked at several points around the groove, ensuring the correct ring is used for each groove.

If the gap is too small, it must be enlarged by carefully filing the ring ends with a fine file. Ensure to file only by pushing the ring from the outside end of the file towards the vise.
