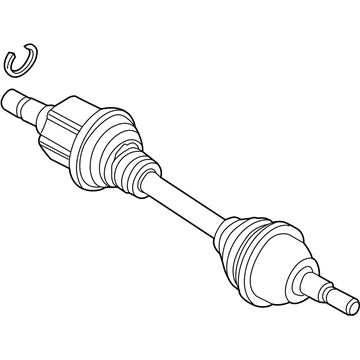

Ford F2GZ-3B437-H Front Axle Shaft

You can Select Your Vehicle to check if F2GZ-3B437-H fits your vehicle.

Depending on the model year and type of vehicle, drive axles may have different configurations: On 2014 and earlier models, the right-side drive axle connects to the intermediate shaft. On 2015-2018 models and 2019 FWD models, the right-side drive axle and intermediate shaft form a single unit with a retaining strap. On 2019 AWD models, the intermediate shaft is attached to the transfer case, and the right-side drive axle connects to it.

To install a new drive axle: Replace the spring clip at the inner end. Lubricate the seals and insert the drive axle into the differential or intermediate shaft, ensuring the spring clip locks in place. For the left-side drive axle, position the clip gap at 6 o'clock for easier insertion. Apply grease to the outer CV joint splines. Secure the knuckle assembly and connect the lower control arm. Seat the drive axle with the old drive axle/hub nut, tighten it while preventing rotation, then replace it with a new nut, tightening within five minutes of initial threading. Install the wheel, lower the vehicle, and tighten the lug nuts.
