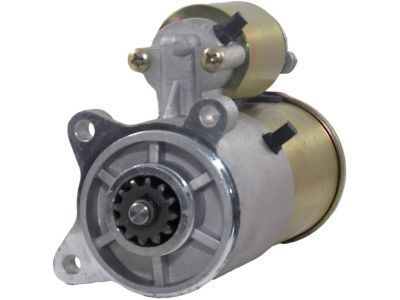

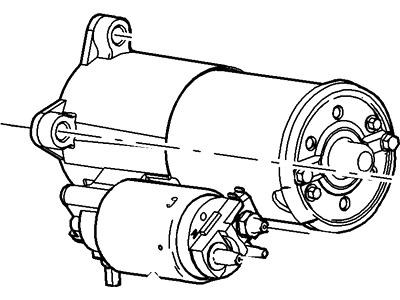

Ford 5L3Z-11002-A Starter Motor Assembly

You can Select Your Vehicle to check if 5L3Z-11002-A fits your vehicle.

Before diagnosing starter issues, ensure a fully charged battery. If the starter motor doesn't turn, check the shift lever is in Neutral or Park and that the battery is charged with secure cables. If the motor spins but the engine doesn't turn over, the starter motor may need replacing. If the motor doesn't operate but the solenoid clicks, the problem could be the battery, solenoid contacts, or motor connections. If the solenoid doesn't click, the defect could be in the solenoid, relay, ignition switch, Transmission Range sensor, clutch switch, or wiring. Check the starter circuit and test the relay with a jumper wire. If the motor operates, the relay is fine and the issue may be in the ignition switch, Transmission Range sensor, Clutch Pedal Position switch, or wiring. If the motor doesn't operate, check for voltage to the relay and inspect the Mega Fuses, main battery fuses, and cable to the relay. If voltage is present, replace the starter assembly. If not, trace the wiring for an open circuit. If the motor cranks slowly, ensure a fully charged battery and clean, tight terminal connections. Check the solenoid and battery ground connections. If the engine cranks slowly, it may be partially seized or have the wrong oil viscosity.

If a malfunction occurs in the starting circuit, do not immediately assume that the starter is causing the problem. First, check that the battery cable clamps are clean and tight at the battery terminals, inspect the condition of the battery cables and replace any that are defective, and test the battery's condition, replacing it if it does not pass all tests. Inspect the starter solenoid wiring and connections, ensure the starter mounting bolts are tight, and verify that the starter is receiving voltage on the S terminal of the starter solenoid when the ignition key is turned to Start. Check the operation of the Digital Transmission Range sensor or clutch start switch, ensuring the shift lever is in PARK or NEUTRAL for automatic transmissions or the clutch pedal is pressed for manual transmissions, as these must operate correctly to provide battery voltage to the ignition switch. Also, check the starter relay located in the fuse and relay box. If the starter does not actuate when the ignition switch is turned to START, check for battery voltage to the solenoid using a test light or voltmeter. If there is no voltage, check the ignition switch fuse and the starter relay. If there is voltage at the solenoid but the starter motor does not operate, remove the starter and bench test it. If the starter turns over slowly, check the starter cranking voltage and current draw from the battery, ensuring the voltage does not drop below specified levels and the current draw remains within the correct range. If the starter is getting voltage but doesn't operate, remove the starter/solenoid assembly and test it on the bench, checking for solenoid defects or potential engine seizure. With the assembly mounted in a vise, connect jumper cables to test the solenoid's operation; if the solenoid plunger extends and rotates the pinion drive, the assembly is functioning properly, while other outcomes indicate defects in the solenoid or starter motor.

Some models are equipped with self-leveling suspension systems, and failure to disconnect electrical power may result in unexpected shifting or movement of the vehicle, which could cause personal injury.

Raise the vehicle and support it securely on jackstands.
