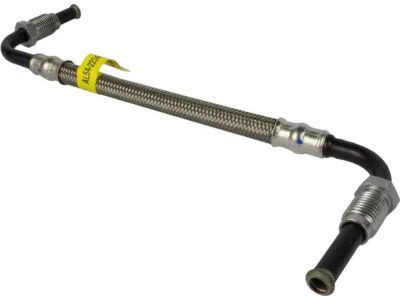

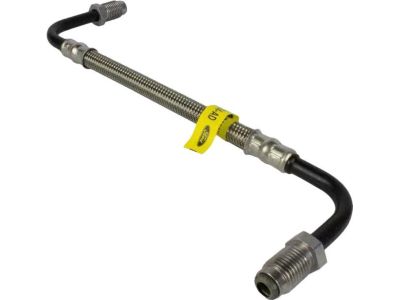

Ford AL5Z-2234-A Brake Tube Assembly

You can Select Your Vehicle to check if AL5Z-2234-A fits your vehicle.

1. Remove the rear brake drums. 2. Note the thickness of the lining material on the rear brake shoes and look for signs of contamination by brake fluid or grease. If the lining material is within 1/16-inch of the recessed rivets or metal shoes, replace the brake shoes with new ones. The shoes should also be replaced if they are cracked, glazed (shiny lining surfaces), or contaminated with brake fluid or grease. 3. Check the shoe return and hold-down springs and the adjusting mechanism to make sure they are installed correctly and in good condition. Deteriorated or distorted springs, if not replaced, could allow the linings to drag and wear prematurely. 4. Check the wheel cylinders for leakage by carefully peeling back the rubber boots. Slight moisture behind the boots is acceptable. If brake fluid is noted behind the boots or if it runs out of the wheel cylinder, the wheel cylinders must be overhauled or replaced. 5. Check the drums for cracks, score marks, deep scratches, and hard spots, which will appear as small discolored areas. If imperfections cannot be removed with emery cloth, the drums must be resurfaced by an automotive machine shop. 6. Install the brake drums. 7. Install the wheels, but don't lower the vehicle yet.

Prefabricated brake lines with tube ends already flared and fittings installed are available, and these lines are sometimes bent to the proper shapes.

Prefabricated brake lines with the tube ends already flared and fittings installed, sometimes bent to the proper shapes.
