Genuine Ford Bronco Fuel Pump
Gas Pump- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
8 Fuel Pumps found

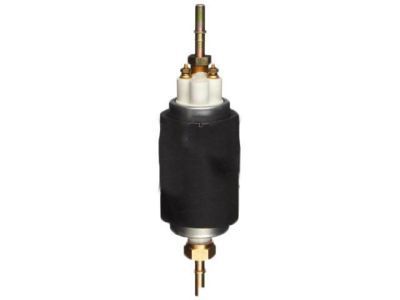

Ford Bronco PUMP ASY - FUEL
Part Number: ML3Z-9350-C$419.65 MSRP: $641.67You Save: $222.02 (35%)Ships in 1-2 Business Days

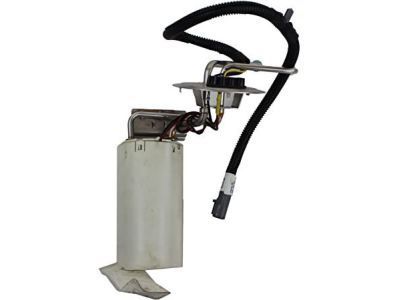

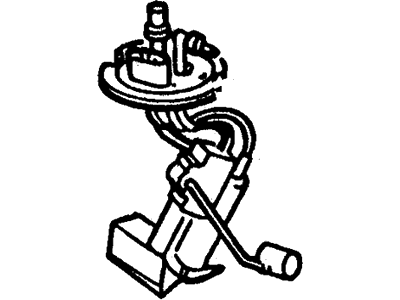

Ford Bronco SENDER AND PUMP ASY
Part Number: MB3Z-9H307-R$235.04 MSRP: $346.67You Save: $111.63 (33%)Ships in 1-2 Business Days
Ford Bronco SENDER AND PUMP ASY
Part Number: MB3Z-9H307-Q$204.06 MSRP: $298.33You Save: $94.27 (32%)Ships in 1-2 Business Days
Ford Bronco SENDER ASY - FUEL TANK
Part Number: MB3Z-9A299-B$42.22 MSRP: $60.67You Save: $18.45 (31%)Ships in 1-2 Business Days
Ford Bronco Fuel Pump Parts Questions & Experts Answers
- Q: How to check the electric Fuel Pump on Ford Bronco?A: In F-series and Bronco, three types of electric fuel pump configurations are available, those for Hot Fuel carbureted 7.5L engines have an in-tank low-pressure fuel pump controlled by a relay connected to a fuel pump switch that is triggered by the engine oil pressure switch and powered through an inertia switch. There is a pre-1990 model with early EFI system that consists of an externally mounted high-pressure pump and a low-pressure in-tank pump regulated by the Fuel Rail pressure regulator. 1990 models and beyond have the FDM (fuel delivery module) that houses various components such as a high-pressure fuel pump, venturi jet pump, relief check valves, and shuttle selector valve.
- Q: How to remove and install the fuel pump on Ford Bronco?A: If it is necessary to remove mechanical fuel pump on carbureted models, unplug the battery cable and place drain pan under. To eliminate leakage, shut off the end of inlet pipe and line. Then remove four screws that connect fuel pump with gasket. Clean surfaces in contact with each other. For replacement, use new one covered with RTV sealant, oil rocker arm of fuel pump, set up pump and tighten bolts. Reconnect lines, reconnect battery cable and start engine checking for leaks on electric fuel pump installed externally for 1987-1989 fuel injected models. Relieve pressure from the fuel system and disconnect battery cables if it's a problem of electric fuel pumps which are mounted externally to frame rails on right side for 1990-1993 models inclusive. To locate them along the left-side frame rail, first identify fuel pumps by their specific appearances. Remove mounting bolts, disconnect electrical connectors and fuel lines before removing these pumps.
