How to remove and install rear coil springs on Ford Crown Victoria?

Loosen the wheel lug nuts, raise the rear of the vehicle and support it securely on jackstands placed under the frame. Remove the wheel and block the front wheels. Remove the rear stabilizer bar. Support the rear axle assembly with a jack placed under the axle housing. Position a safety chain through one of the spring coils and around a convenient frame member. This will prevent the spring from flying out before it's fully extended. Unsnap the right parking brake cable clip from the right upper suspension arm. Disconnect the lower studs of the two rear shock absorbers from their mounting brackets on the axle tube. Detach the height sensor connector link from the upper control arm. On 1998 and later models, the lateral arms that are part of the Watts linkage must be disconnected at the chassis ends. Slowly lower the jack until the spring is fully extended. Remove the safety chain, coil spring and insulators from between the suspension arm and the spring upper seat. Set the upper insulator on top of the spring, using tape to hold it in place, if necessary. Place the spring between its seat on the axle tube and the frame seat, so that the pigtail (the lower end of the spring) is pointing toward the left side of the vehicle. Raise the axle assembly with the floor jack and insert the studs on the lower ends of the shocks into their holes in the brackets on the axle tubes. Install the stud retaining nuts, but don't fully tighten them yet. Snap the right parking brake cable into the upper suspension arm retainer. Install the rear stabilizer bar. Connect the height sensor connector link to the upper control arm. Remove the jackstands and lower the vehicle. Before attempting to drive a vehicle equipped with air suspension, turn the air suspension switch to On, start the engine and allow the compressor to inflate the air suspension springs (they deflate automatically when the rear of the vehicle is raised).

How do you remove and install front coil springs on Ford Crown Victoria?

This procedure only applies to models from 2002 and older. Coil spring removal and installation on 2003+ models are included with shock absorber replacement. To remove the coil spring: loosen wheel lug nuts, raise and support the vehicle, remove the wheels, disconnect the stabilizer bar (on 1988-1991 models), remove the shock absorber, disconnect the center link from the Pitman arm, use a spring compressor to relieve tension, remove the bolts securing the lower control arm to the frame, slowly lower the control arm, and remove the spring and compressor. If replacing the spring, loosen the compressor tool slowly to release tension. To install spring, place the upper insulator on it and secure it with tape, compress the spring with a compressor, position it on the lower control arm. Then, raise the control arm while aligning the inner end with bolt holes; install pivot bolts and loosely attach nuts, attach a center link to Pitman's arm. Attach the lower end of the shock absorber to control arm and attach the stabilizer bar (on 1988-1991 models).

Genuine Ford Crown Victoria Coil Springs

Strut Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

41 Coil Springs found

View related parts
Ford Crown Victoria Spring - Rear
Part Number: 3W7Z-5560-CA
$80.28 MSRP: $111.50
You Save: $31.22 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Rear
- Replaces: F4AZ-5560-A, F8AZ-5560-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-2011 Ford Crown Victoria | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4AT, 4AT 4R70W, 4AT 4R75W, 4AT AOD-E, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Crown Victoria Spring - Rear
Part Number: 3W7Z-5560-BA
$84.77 MSRP: $115.82
You Save: $31.05 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Spring code - C, spring tag(Orange)CPG
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W, 4AT 4R75W
View related parts
Ford Crown Victoria Spring - Front
Part Number: 3W1Z-5310-BA
$97.90 MSRP: $135.99
You Save: $38.09 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Ford Crown Victoria | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT, 4AT 4R70W, 4AT 4R75W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Crown Victoria Spring - Front
Part Number: 9W7Z-5310-C
$106.25 MSRP: $155.33
You Save: $49.08 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Front
- Replaces: 3W1Z-5310-EA, 3W1Z-5310-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Ford Crown Victoria | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4AT, 4AT 4R70W, 4AT 4R75W, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Crown Victoria Spring - Front
Part Number: 3W1Z-5310-DA
$106.25 MSRP: $155.33
You Save: $49.08 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Spring
- Manufacturer Note: Module ID: 3W73-18B036-S*, "EHD", Red., with sport equipment package
- Position: Front
- Replaced by: 9W7Z-5310-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W, 4AT 4R75W
View related parts
Ford Crown Victoria Spring - Front
Part Number: 3W1Z-5310-EA
$106.25 MSRP: $155.33
You Save: $49.08 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Front
- Replaced by: 9W7Z-5310-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2010 Ford Crown Victoria | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT, 4AT 4R70W, 4AT 4R75W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Crown Victoria Spring - Rear
Part Number: F4AZ-5560-A
$89.78 MSRP: $111.50
You Save: $21.72 (20%)
ADD TO CART
Product Specifications
- Manufacturer Note: Spring Code - J
- Position: Rear
- Replaced by: 3W7Z-5560-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1997 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W, 4AT AOD-E
View related parts

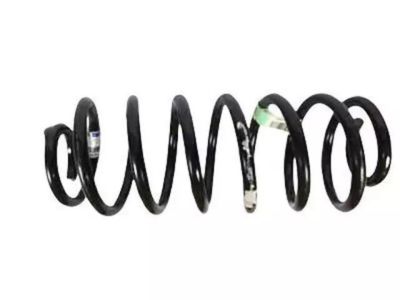

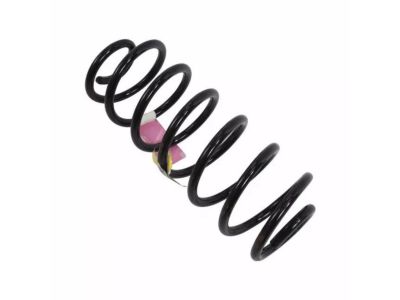

Ford Crown Victoria Spring - Rear
Part Number: F8AZ-5560-DA
$89.78 MSRP: $111.50
You Save: $21.72 (20%)
ADD TO CART
Product Specifications
- Manufacturer Note: Spring code - D, spring tag(yellow) DMV
- Position: Rear
- Replaced by: 3W7Z-5560-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2004 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W, 4AT 4R75W
View related parts
Ford Crown Victoria Spring - Front
Part Number: 3W7Z-5310-BA
Product Specifications
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Ford Crown Victoria | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT 4R75W
View related parts
Ford Crown Victoria Spring - Rear
Part Number: 6W7Z-5560-B
$0.00
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2011 Ford Crown Victoria | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT, 4AT 4R75W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Crown Victoria Spring - Front
Part Number: 3W1Z-5310-HA
Product Specifications
- Position: Front
- Replaced by: 9W7Z-5310-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Ford Crown Victoria | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT, 4AT 4R70W, 4AT 4R75W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Crown Victoria Spring - Rear
Part Number: 6W7Z-5560-A
$0.00
Product Specifications
- Other Name: Coil Spring, Spring
- Position: Rear
- Replaces: 3W7Z-5560-DA, F8AZ-5560-FA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2011 Ford Crown Victoria | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4AT, 4AT 4R75W, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- 1998-2004 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W, 4AT 4R75W
View related parts
Ford Crown Victoria Spring - Front
Part Number: 1W7Z-5310-AA
Product Specifications
- Manufacturer Note: Spring Code - 5, Red tape, ID tag: ALT, AFTER 02/05/01
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Ford Crown Victoria Spring - Front
Part Number: 1W7Z-5310-BA
Product Specifications
- Manufacturer Note: Spring Code - 6, Red tape, ID tag: AMT, AFTER 02/05/01
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Ford Crown Victoria Spring
Part Number: 3U2Z-5580-BA
Product Specifications
- Other Name: Air Spring
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-1996 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W, 4AT AOD, 4AT AOD-E
View related parts

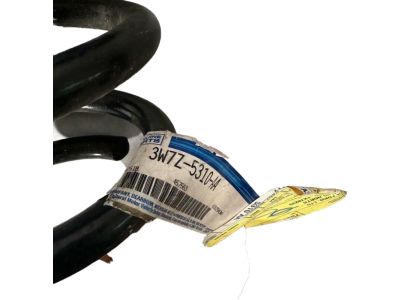

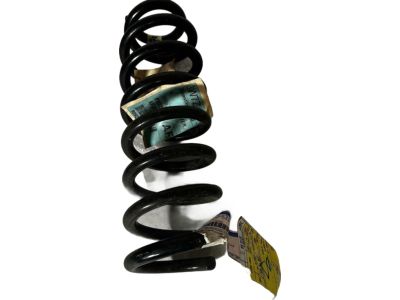

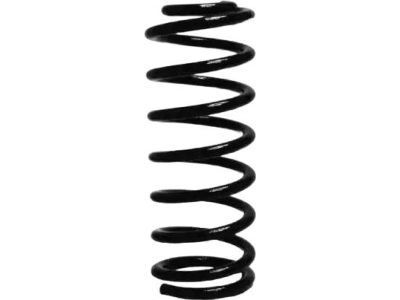

Ford Crown Victoria Spring - Front
Part Number: 3W7Z-5310-AA
Product Specifications
- Other Name: Coil Spring
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Ford Crown Victoria | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT, 4AT 4R70W, 4AT 4R75W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Crown Victoria Spring - Front
Part Number: 3W7Z-5310-DA
Product Specifications
- Other Name: Coil Spring
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2011 Ford Crown Victoria | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4AT, 4AT 4R75W, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- 2003 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Ford Crown Victoria Spring - Rear
Part Number: 3W7Z-5560-AA
Product Specifications
- Other Name: Coil Spring, Spring
- Manufacturer Note: Spring code , B, spring tag(red) BMF
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W, 4AT 4R75W
View related parts
Ford Crown Victoria Spring - Rear
Part Number: 3W7Z-5560-DA
Product Specifications
- Manufacturer Note: Spring code - F, spring tag(blue) FTP, CNG
- Position: Rear
- Replaced by: 6W7Z-5560-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Ford Crown Victoria | 8 Cyl 4.6L | 4AT 4R70W, 4AT 4R75W
View related parts
Ford Crown Victoria Spring - Rear
Part Number: 3W7Z-5560-FA
Product Specifications
- Manufacturer Note: Spring code - H, spring tag (green) HAP
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Ford Crown Victoria | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT 4R75W

| Page 1 of 3 |Next >

1-20 of 41 Results

Ford Crown Victoria Coil Springs Parts Questions & Experts Answers

Spring - Rear
F8AZ-5560-CA
Q: How to remove and install rear coil springs on Ford Crown Victoria?
A: Loosen the wheel lug nuts, raise the rear of the vehicle and support it securely on jackstands placed under the frame. Remove the wheel and block the front wheels. Remove the rear stabilizer bar. Support the rear axle assembly with a jack placed under the axle housing. Position a safety chain through one of the spring coils and around a convenient frame member. This will prevent the spring from flying out before it's fully extended. Unsnap the right parking brake cable clip from the right upper suspension arm. Disconnect the lower studs of the two rear Shock Absorbers from their mounting brackets on the axle tube. Detach the height sensor connector link from the upper control arm. On 1998 and later models, the lateral arms that are part of the Watts linkage must be disconnected at the chassis ends. Slowly lower the jack until the spring is fully extended. Remove the safety chain, coil spring and insulators from between the suspension arm and the spring upper seat. Set the upper insulator on top of the spring, using tape to hold it in place, if necessary. Place the spring between its seat on the axle tube and the frame seat, so that the pigtail (the lower end of the spring) is pointing toward the left side of the vehicle. Raise the axle assembly with the floor jack and insert the studs on the lower ends of the shocks into their holes in the brackets on the axle tubes. Install the stud retaining nuts, but don't fully tighten them yet. Snap the right parking brake cable into the upper suspension arm retainer. Install the rear stabilizer bar. Connect the height sensor connector link to the upper control arm. Remove the jackstands and lower the vehicle. Before attempting to drive a vehicle equipped with air suspension, turn the air suspension switch to On, start the engine and allow the compressor to inflate the air suspension springs (they deflate automatically when the rear of the vehicle is raised).
Spring - Front
6W7Z-5310-E
Q: How do you remove and install front coil springs on Ford Crown Victoria?
A: This procedure only applies to models from 2002 and older. Coil spring removal and installation on 2003+ models are included with Shock Absorber replacement. To remove the coil spring: loosen wheel lug nuts, raise and support the vehicle, remove the wheels, disconnect the stabilizer bar (on 1988-1991 models), remove the shock absorber, disconnect the center link from the Pitman arm, use a spring compressor to relieve tension, remove the bolts securing the lower Control Arm to the frame, slowly lower the control arm, and remove the spring and compressor. If replacing the spring, loosen the compressor tool slowly to release tension. To install spring, place the upper insulator on it and secure it with tape, compress the spring with a compressor, position it on the lower control arm. Then, raise the control arm while aligning the inner end with bolt holes; install pivot bolts and loosely attach nuts, attach a center link to Pitman's arm. Attach the lower end of the shock absorber to control arm and attach the stabilizer bar (on 1988-1991 models).
