How do you remove the air conditioning Compressor on Ford Edge?

To remove the air conditioning system, start by having it recovered by a dealer service department or automotive air conditioning shop. Then, loosen the lug nuts on the right front wheel and raise the vehicle on jackstands. Remove the wheel, as well as the right front fender splash shield and engine splash shield. Take off the drivebelt and, for four-cylinder models, remove the mounting nut and stud from the rear of the compressor. Disconnect the electrical connector from the compressor clutch field coil and the inlet and outlet lines from the compressor, discarding the old O-rings. Remove the compressor mounting bolts and take out the compressor. For V6 models, on 2015 and later 3.5L models, remove the cooling fan shroud assembly. Then, follow the same steps as for four-cylinder models to remove the compressor. To install a new compressor, drain excess oil if necessary and transfer the clutch from the original compressor. Replace all O-rings and lubricate them with refrigerant oil before reconnecting the inlet and outlet lines. Finally, reverse the removal steps and have the system evacuated, recharged, and leak-tested by a professional shop.

Genuine Ford Edge A/C Compressor

Air Conditioning Compressor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 A/C Compressors found

View related parts
Ford Edge Compressor Assembly
Part Number: DG9Z-19703-L
$417.47 MSRP: $696.36
You Save: $278.89 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy; Compressor
- Replaces: DG9Z-19703-C, YCC-309
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2018 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Compressor Assembly
Part Number: BT4Z-19703-A
$345.53 MSRP: $576.36
You Save: $230.83 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy; Compressor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Compressor Assembly
Part Number: DG9Z-19703-C
$417.47 MSRP: $696.36
You Save: $278.89 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy
- Replaced by: DG9Z-19703-L
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2016 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Compressor Assembly
Part Number: F2GZ-19703-B
$499.22 MSRP: $832.73
You Save: $333.51 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy; Compressor
- Replaced by: F2GZ-19703-R
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2018 Ford Edge | 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Compressor Assembly

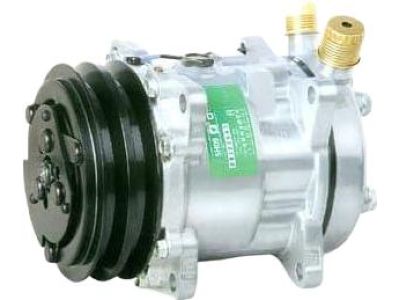

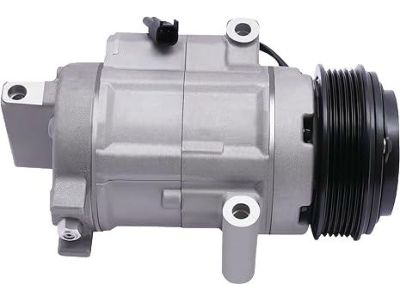

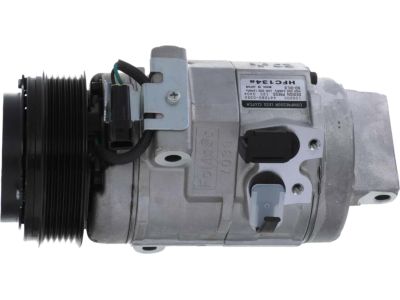

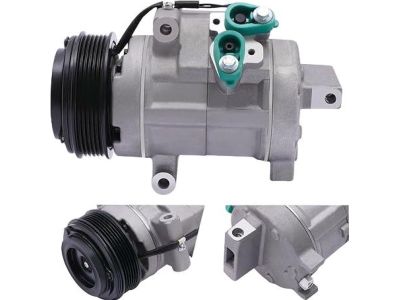

Part Number: 8T4Z-19703-A
$320.46 MSRP: $534.55
You Save: $214.09 (41%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Compressor Assy; Compressor
- Replaces: 7T4Z-19703-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Compressor Assembly
Part Number: CT4Z-19703-C
$537.37 MSRP: $896.36
You Save: $358.99 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy; Compressor
- Manufacturer Note: Complete Assembly Includes A/C Compressor And Clutch
- Replaces: CT4Z-19703-B, YCC-280
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Compressor Assembly
Part Number: 7T4Z-19703-A
$320.46 MSRP: $534.55
You Save: $214.09 (41%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Compressor Assy
- Replaced by: 8T4Z-19703-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Compressor Assembly
Part Number: CT4Z-19703-B
$537.37 MSRP: $896.36
You Save: $358.99 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy
- Manufacturer Note: Complete Assembly Includes A/C Compressor And Clutch
- Replaced by: CT4Z-19703-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Compressor Assembly

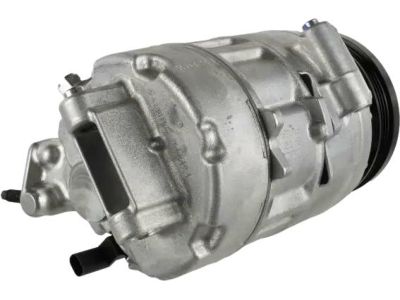

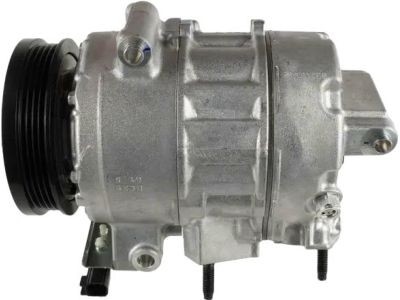

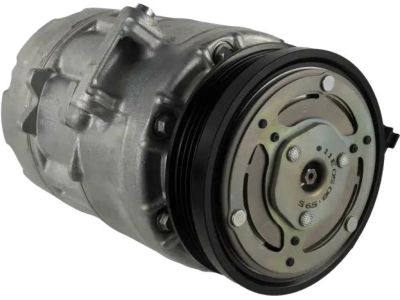

Part Number: K2GZ-19703-A
$377.42 MSRP: $607.27
You Save: $229.85 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2024 Ford Edge | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Compressor Assembly
Part Number: K2GZ-19703-B
$557.76 MSRP: $905.45
You Save: $347.69 (39%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2024 Ford Edge | 6 Cyl 2.7 L GAS, 6 Cyl 2.7L | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)

Ford Edge A/C Compressor Parts Questions & Experts Answers

Compressor Assembly
BT4Z-19703-A
Q: How do you remove the air conditioning Compressor on Ford Edge?
A: To remove the air conditioning system, start by having it recovered by a dealer service department or automotive air conditioning shop. Then, loosen the lug nuts on the right front wheel and raise the vehicle on jackstands. Remove the wheel, as well as the right front fender splash shield and engine splash shield. Take off the drivebelt and, for four-cylinder models, remove the mounting nut and stud from the rear of the compressor. Disconnect the electrical connector from the compressor clutch field coil and the inlet and outlet lines from the compressor, discarding the old O-rings. Remove the compressor mounting bolts and take out the compressor. For V6 models, on 2015 and later 3.5L models, remove the cooling fan shroud assembly. Then, follow the same steps as for four-cylinder models to remove the compressor. To install a new compressor, drain excess oil if necessary and transfer the clutch from the original compressor. Replace all O-rings and lubricate them with refrigerant oil before reconnecting the inlet and outlet lines. Finally, reverse the removal steps and have the system evacuated, recharged, and leak-tested by a professional shop.
