How to replace the CHT sensor in Ford Edge?

The CHT sensor is a crucial component of the Fail Safe Cooling system. It adjusts its voltage output based on temperature changes, with resistance values affecting the voltage signal. If the sensor temperature drops, resistance values increase and voltage rises. When the cylinder head temperature surpasses 265-degrees F, the PCM disables half of the fuel injectors at a time, with the non-fueled cylinders acting as cooling air pumps for the others. If the temperature exceeds 330-degrees F, all fuel injectors are disabled. A problem in the CHT sensor circuit triggers a diagnostic trouble code. For four-cylinder models, disconnect the negative battery terminal cable, remove the air filter outlet duct, disconnect the charge air cooler inlet pipe, pull back the rubber weather cover from the CHT sensor electrical connector, disconnect the connector, and unscrew the CHT sensor from the cylinder head. For V6 2.7L models, remove the two fasteners on the engine cover, lift up at the front, unhook the retainers at the rear, locate the CHT sensor in the driver cylinder head, disconnect the electrical connector, unscrew the CHT sensor, and install a new one. For 3.5L and 3.7L models, disconnect the negative battery terminal cable, remove the lower intake manifold, disconnect the CHT sensor electrical connector, unscrew and remove the CHT sensor, and install a new one.

Genuine Ford Edge Cylinder Head Temperature Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Cylinder Head Temperature Sensors found

View related parts

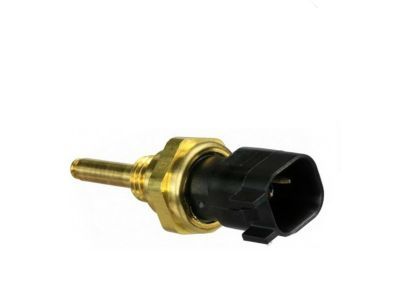

Ford Edge Sensor Assembly
Part Number: 9L8Z-6G004-E
$33.66 MSRP: $38.00
You Save: $4.34 (12%)
ADD TO CART
Product Specifications
- Other Name: Sensor Assy
- Replaces: 9L8Z-6G004-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2019 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts

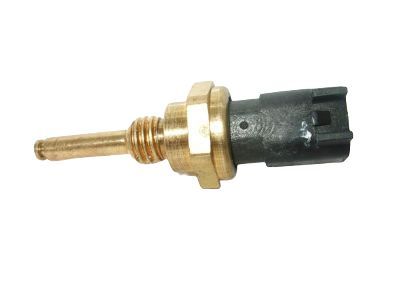

Ford Edge Sensor Assembly
Part Number: 9L8Z-6G004-F
$33.95 MSRP: $38.33
You Save: $4.38 (12%)
ADD TO CART
Product Specifications
- Other Name: Sensor Assy; Cylinder Head Temperature Sensor
- Replaces: 9L8Z-6G004-D, 9L8Z-6G004-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2023 Ford Edge | 6 Cyl 2.7 L GAS, 6 Cyl 2.7L | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts

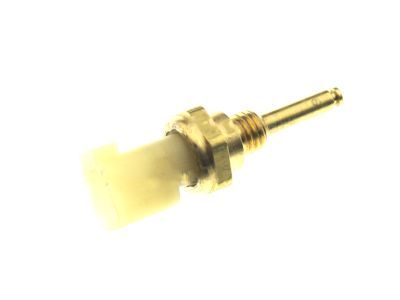

Ford Edge Sensor Assembly
Part Number: 3L7Z-6G004-BA
$19.66 MSRP: $28.00
You Save: $8.34 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Sensor Assy
- Replaced by: 9L8Z-6G004-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2009 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Sensor Assembly
Part Number: 9L8Z-6G004-B
$26.68 MSRP: $38.00
You Save: $11.32 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Sensor Assy
- Replaced by: 9L8Z-6G004-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Sensor Assembly
Part Number: GN1Z-6G004-A
$4.27 MSRP: $6.08
You Save: $1.81 (30%)
ADD TO CART
Product Specifications
- Other Name: SENSOR ASY; Cylinder Head Temperature Sensor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Edge | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
