How to replace the CKP sensor on Ford Edge?

Replacing the CKP sensor may trigger a Diagnostic Trouble Code (DTC). If this occurs and you have a generic scan tool that can clear codes, erase the code and check if it reappears. If it does, take the vehicle to a dealer service department to perform a Misfire Monitor Neutral Profile Correction procedure with a factory scan tool. To begin the removal process, disconnect the cable from the negative battery terminal and remove the engine cover if present. For four-cylinder models, loosen the right front wheel lug nuts, raise the front of the vehicle and secure it on jackstands. Remove the right front wheel and the inner fender splash shield. On all models, remove the engine under-cover. For four-cylinder models, put the No. 1 cylinder at Top Dead Center (TDC). Disconnect the electrical connector from the CKP sensor and unscrew the mounting bolts to remove the sensor. For installation, install the CKP sensor without tightening the mounting bolts. If using a new CKP sensor, align it with the special alignment jig provided and tighten the bolts securely before removing the jig. If using the old CKP sensor, align it with the timing plate by counting 20 teeth counterclockwise from the blank spot and drawing a straight line from the center of the 20th tooth through the center of the crankshaft pulley. Position the centerline of the CKP sensor with the line and tighten the bolts securely. Installation is the reverse of removal. For V6 models, the CKP sensor is located on the left front side of the engine block near the transaxle. For 2.7L models, remove the right-hand air cleaner outlet and the Charge Air Cooler (CAC) intake pipe. For 3.5L and 3.7L models, remove the upstream and downstream oxygen sensors and the catalyst for the front cylinder head. Remove the CKP sensor heat shield mounting bolt and nut, as well as the rubber grommet cover. Disconnect the CKP sensor electrical connector and remove the mounting bolt to take out the sensor. Installation is the reverse of removal.

Genuine Ford Edge Crankshaft Position Sensor

Engine Crankshaft Position Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Crankshaft Position Sensors found

View related parts
Ford Edge Sensor - Crankshaft Position
Part Number: AA5Z-6C315-A
$45.71 MSRP: $72.91
You Save: $27.20 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Crankshaft Position - Cps; Crankshaft Position Sensor, Crankshaft Sensor
- Manufacturer Note: Includes Attaching Bolt
- Replaces: AT4Z-6C315-A, 7T4Z-6C315-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2019 Ford Edge | 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Sensor - Crankshaft Position
Part Number: 6M8Z-6C315-AA
$70.79 MSRP: $112.91
You Save: $42.12 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Crankshaft Position - Cps
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

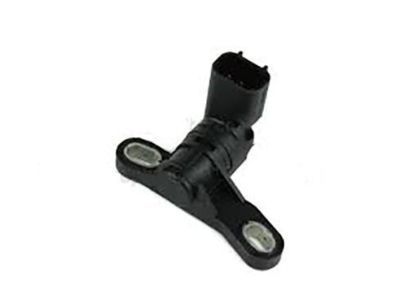

Ford Edge Sensor - Crankshaft
Part Number: 7T4Z-6C315-B
$45.71 MSRP: $72.91
You Save: $27.20 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Crankshaft Position - Cps
- Replaced by: AA5Z-6C315-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2009 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Sensor - Crankshaft Position
Part Number: AS7Z-6C315-A
$35.50 MSRP: $55.64
You Save: $20.14 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Crankshaft Position - Cps
- Replaced by: JX6Z-6C315-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2018 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge SENSOR - CRANKSHAFT POSITION
Part Number: FT4Z-6C315-C
$48.56 MSRP: $77.45
You Save: $28.89 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Crankshaft Position Sensor, Crankshaft Sensor
- Replaces: FT4Z-6C315-A, DY-1288
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | 6 Cyl 2.7 L GAS, 6 Cyl 2.7L | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge SENSOR - CRANKSHAFT POSITION
Part Number: JX6Z-6C315-B
$35.50 MSRP: $55.64
You Save: $20.14 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Crankshaft Position Sensor, Crankshaft Sensor
- Replaces: AS7Z-6C315-A, DY-1461, DY-1204, JX6Z-6C315-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Sensor - Crankshaft Position
Part Number: FT4Z-6C315-A
$49.42 MSRP: $77.45
You Save: $28.03 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Crankshaft Position - Cps
- Replaced by: FT4Z-6C315-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2019 Ford Edge | 6 Cyl 2.7L | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts

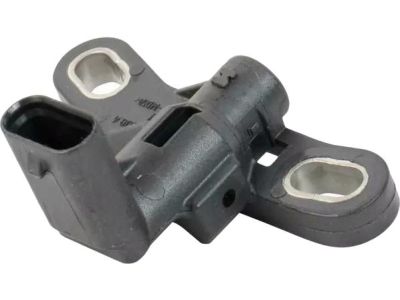

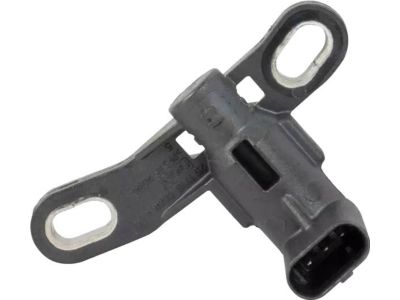

Ford Edge Sensor - Crankshaft Position
Part Number: JX6Z-6C315-A
$35.50 MSRP: $55.64
You Save: $20.14 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: JX6Z-6C315-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)

Ford Edge Crankshaft Position Sensor

The Crankshaft Position Sensor is a standard electronic part of Ford Edge vehicles, and it is indispensable in identifying the crankshaft's position and speed. This information is sent to the power train control module where it is used to adjust the amount of fuel to be injected into the engine and the time when the ignition should take place so as to achieve the optimal performance of the engine. There are extensive kinds of crankshaft position sensors to be used, such as inductive, Hall Effect, magnetoresistive, and optical sensors. Inductive sensors do not have any power supply of their own and Hall and magnetoresistive sensors can measure only steady magnetic fields. Optical sensors guarantee the detection of the edges with a small error but can be easily covered with fouling. The sensor is commonly located on the crank pulley or flywheel and is sometimes an integral part of the crankshaft itself; bad crank sensor can cause emission problems and starting troubles or stalling. In conclusion it is important to say that Crankshaft Position Sensor is a very important part of current systems of engine management, and it contributes significantly to the improvement of its performance and durability.

We provide a wide range of Ford Edge Crankshaft Position Sensor at the best prices possible. If you need Ford Edge Crankshaft Position Sensor, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Edge Crankshaft Position Sensor Parts Questions & Experts Answers

Sensor - Crankshaft
7T4Z-6C315-B
Q: How to replace the CKP sensor on Ford Edge?
A: Replacing the CKP sensor may trigger a Diagnostic Trouble Code (DTC). If this occurs and you have a generic scan tool that can clear codes, erase the code and check if it reappears. If it does, take the vehicle to a dealer service department to perform a Misfire Monitor Neutral Profile Correction procedure with a factory scan tool. To begin the removal process, disconnect the cable from the negative battery terminal and remove the engine cover if present. For four-cylinder models, loosen the right front wheel lug nuts, raise the front of the vehicle and secure it on jackstands. Remove the right front wheel and the inner fender splash shield. On all models, remove the engine under-cover. For four-cylinder models, put the No. 1 cylinder at Top Dead Center (TDC). Disconnect the electrical connector from the CKP sensor and unscrew the mounting bolts to remove the sensor. For installation, install the CKP sensor without tightening the mounting bolts. If using a new CKP sensor, align it with the special alignment jig provided and tighten the bolts securely before removing the jig. If using the old CKP sensor, align it with the timing plate by counting 20 teeth counterclockwise from the blank spot and drawing a straight line from the center of the 20th tooth through the center of the crankshaft pulley. Position the centerline of the CKP sensor with the line and tighten the bolts securely. Installation is the reverse of removal. For V6 models, the CKP sensor is located on the left front side of the engine block near the transaxle. For 2.7L models, remove the right-hand air cleaner outlet and the Charge Air Cooler (CAC) intake pipe. For 3.5L and 3.7L models, remove the upstream and downstream Oxygen Sensors and the catalyst for the front cylinder head. Remove the CKP sensor heat shield mounting bolt and nut, as well as the rubber grommet cover. Disconnect the CKP sensor electrical connector and remove the mounting bolt to take out the sensor. Installation is the reverse of removal.
