How to remove and install a heater core in a Ford Edge?

This is a difficult procedure for the home mechanic, involving numerous hard-to-find fasteners, clips, and electrical connectors. Have the air conditioning system recovered by a dealer service department or by an automotive air conditioning shop before proceeding. Disconnect the cable from the negative battery terminal. Drain the cooling system. Disconnect the heater hoses from the heater core inlet and outlet pipes at the firewall, then disconnect the thermostatic expansion valve and the two refrigerant pipes. Remove the instrument panel. On V6 models, remove the lower cowl grille panel to access some HVAC unit fasteners. Tag and disconnect the cables and electrical connectors from the HVAC unit. Remove the housing-to-firewall nuts. The heater core is in the center of the HVAC unit, to the left of the blower motor housing. Remove the heater core cover screws and pull the heater core out of the housing. Installation is the reverse of removal. Reconnect the heater core inlet and outlet hoses at the firewall. Use a new gasket where the two air conditioning pipes meet the expansion valve at the firewall. Refill and bleed the cooling system. Have the system evacuated, recharged, and leak-tested by the shop that discharged it.

Genuine Ford Edge Heater Core

HVAC Heater Core

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Heater Cores found

View related parts
Ford Edge Radiator And Seal Assembly - Heater
Part Number: DG9Z-18476-A
$116.60 MSRP: $192.73
You Save: $76.13 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator And Seal Assy - Heater; Heater Core
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS), 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7 L GAS, 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Core Assembly - Heater
Part Number: 7T4Z-18476-A
$97.02 MSRP: $160.36
You Save: $63.34 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Core Assy - Heater; Heater Core
- Manufacturer Note: Includes Seal
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

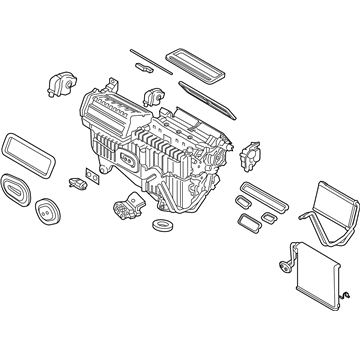

Ford Edge EVAPORATOR AND HOUSING ASY
