How to remove and install the oil pan in four cylinder engine on Ford Edge?

To remove the components, first raise the vehicle and support it securely on jackstands. Drain the engine oil, then clean and install the engine oil drain plug, tightening it to the specified torque. Remove and discard the oil filter for replacement. Next, take off the engine lower splash shield and the air filter housing. The transaxle needs to be moved slightly back from the engine; support the engine from above and the transaxle with a floor jack. Loosen the upper engine-to-transaxle mounting bolts and back them off about 3/16-inch, then loosen the left-side and right-side engine-to-bellhousing bolts, ensuring the transaxle is not moved back more than 0.19-inch to avoid damage. Remove the transaxle roll restrictor mount through bolts and the mount itself, followed by the catalytic converter. Remove the three bellhousing-to-pan bolts and one oil pan-to-bellhousing bolt, along with the timing chain cover-to-oil pan fasteners. Detach the power steering hose bracket retaining nut and move the hose aside. Remove the air compressor without disconnecting the lines and tie it out of the way. Use a screwdriver to pry between the engine and transaxle until the bellhousing has moved away from the block to the limit of the loosened bolts. Unscrew the oil pan retaining bolts evenly until all are removed, then use a rubber mallet to loosen the oil pan seal and lower the oil pan, turning it as necessary to clear the exhaust system. Clean and degrease the mating surfaces of the lower engine block and oil pan, removing all traces of sealant. Apply a 1/8-inch wide bead of sealant to the oil pan flange, ensuring it is around the inside edge of the bolt holes and the front flange where it meets the timing chain cover, and install the oil pan bolts finger tight. Install the timing chain cover-to-oil pan fasteners and tighten them to the specified torque. Tighten the oil pan-to-engine block bolts in a circular pattern from the center outwards, then tighten the oil pan-to-bellhousing bolts and the transaxle to engine bolts evenly. Finally, lower the vehicle to the ground and wait at least 1 hour for the sealant to cure before refilling the engine with oil, trimming off any excess sealant and installing a new oil filter.

Genuine Ford Edge Oil Pan

Oil Drain Pan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Oil Pans found

View related parts
Ford Edge Pan Assembly - Engine Oil
Part Number: 7T4Z-6675-A
$91.50 MSRP: $166.67
You Save: $75.17 (46%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Engine Oil Pan Assembly
Part Number: K2GZ-6675-A
$107.96 MSRP: $157.83
You Save: $49.87 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assembly - Engine Oil; Oil Pan
- Replaced by: K2GZ-6675-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Pan Assembly - Engine Oil
Part Number: CJ5Z-6675-A
$166.44 MSRP: $243.33
You Save: $76.89 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
- Replaced by: CJ5Z-6675-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Pan Assembly - Engine Oil
Part Number: CJ5Z-6675-B
$166.44 MSRP: $243.33
You Save: $76.89 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil
- Replaced by: CJ5Z-6675-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014-2018 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge PAN ASY - ENGINE OIL
Part Number: KT4Z-6675-D
$45.73 MSRP: $210.00
You Save: $164.27 (79%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan
- Replaced by: KT4Z-6675-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford Edge | 6 Cyl 2.7 L GAS
View related parts
Ford Edge Pan Assembly - Engine Oil
Part Number: AT4Z-6675-C
$120.96 MSRP: $180.00
You Save: $59.04 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
- Replaced by: AT4Z-6675-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2012 Ford Edge | 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Pan Assembly - Engine Oil

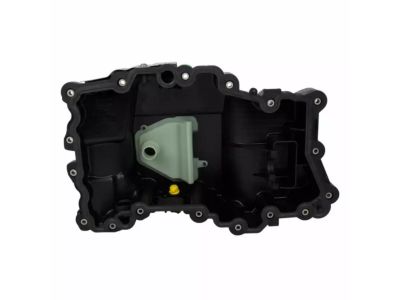

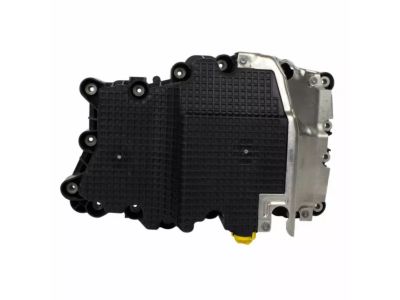

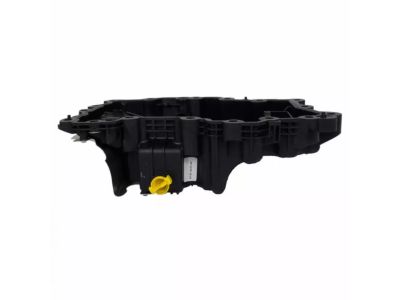

Part Number: KT4Z-6675-B
$115.29 MSRP: $210.00
You Save: $94.71 (46%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: PAN ASY - ENGINE OIL; Oil Pan
- Replaced by: KT4Z-6675-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019 Ford Edge | 6 Cyl 2.7L | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Pan Assembly - Engine Oil
Part Number: DG1Z-6675-F
$118.56 MSRP: $173.33
You Save: $54.77 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Replaces: DG1Z-6675-E, DG1Z-6675-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2019 Ford Edge | 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge PAN ASY - ENGINE OIL
Part Number: K2GZ-6675-D
$107.96 MSRP: $157.83
You Save: $49.87 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan
- Replaces: K2GZ-6675-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2024 Ford Edge | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge PAN ASY - ENGINE OIL
Part Number: KT4Z-6675-E
$115.29 MSRP: $210.00
You Save: $94.71 (46%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Pan
- Replaced by: KT4Z-6675-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2024 Ford Edge | 6 Cyl 2.7 L GAS
View related parts
Ford Edge Pan Assembly - Engine Oil

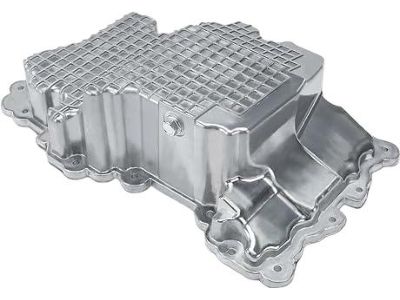

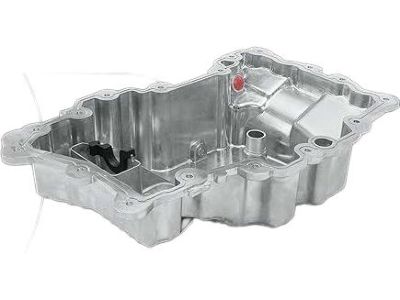

Part Number: FT4Z-6675-A
$110.69 MSRP: $161.83
You Save: $51.14 (32%)
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil
- Replaced by: FT4Z-6675-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2018 Ford Edge | 6 Cyl 2.7L | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Pan Assembly - Engine Oil
Part Number: BB5Z-6675-A
$166.44 MSRP: $243.33
You Save: $76.89 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan Assy - Engine Oil; Oil Pan
- Manufacturer Note: Use RTV Silicone Sealer In Place Of Gasket For This Application. Refer To Workshop Manual For Specification
- Replaced by: CJ5Z-6675-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2013 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive

Ford Edge Oil Pan

The Oil Pan on the Ford Edge used is an important component, which holds oil and enables either supplying the oil to a number of important components in the car or enabling the oil to cool off. A wet sump is employed in the Ford Edge Oil Pan whereby the oil pulled by the pickup tube passes through the oil pump, before circulating through the engine before falling into the pan. They built a design that sustains a constant flow of oil for the motor this is important for the outstanding performance of the engine. Early designs of the Ford Edge Oil Pans were mostly manufactured from stamped steel, but with the introduction of improvements, many of the company's models have adopted cast aluminum, improving on durability and efficiency. Thus, apart from the basic function, the evolution involved the shift to more complex materials, satisfying the need of the modern engineering and driving conditions.

We provide a wide range of Ford Edge Oil Pan at the best prices possible. If you need Ford Edge Oil Pan, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Edge Oil Pan Parts Questions & Experts Answers

Pan Assembly - Engine Oil
7T4Z-6675-A
Q: How to remove and install the oil pan in four cylinder engine on Ford Edge?
A: To remove the components, first raise the vehicle and support it securely on jackstands. Drain the engine oil, then clean and install the engine oil drain plug, tightening it to the specified torque. Remove and discard the oil filter for replacement. Next, take off the engine lower splash shield and the air filter housing. The transaxle needs to be moved slightly back from the engine; support the engine from above and the transaxle with a floor jack. Loosen the upper engine-to-transaxle mounting bolts and back them off about 3/16-inch, then loosen the left-side and right-side engine-to-bellhousing bolts, ensuring the transaxle is not moved back more than 0.19-inch to avoid damage. Remove the transaxle roll restrictor mount through bolts and the mount itself, followed by the catalytic converter. Remove the three bellhousing-to-pan bolts and one oil pan-to-bellhousing bolt, along with the timing chain cover-to-oil pan fasteners. Detach the power steering hose bracket retaining nut and move the hose aside. Remove the air compressor without disconnecting the lines and tie it out of the way. Use a screwdriver to pry between the engine and transaxle until the bellhousing has moved away from the block to the limit of the loosened bolts. Unscrew the oil pan retaining bolts evenly until all are removed, then use a rubber mallet to loosen the oil pan seal and lower the oil pan, turning it as necessary to clear the exhaust system. Clean and degrease the mating surfaces of the lower engine block and oil pan, removing all traces of sealant. Apply a 1/8-inch wide bead of sealant to the oil pan flange, ensuring it is around the inside edge of the bolt holes and the front flange where it meets the timing chain cover, and install the oil pan bolts finger tight. Install the timing chain cover-to-oil pan fasteners and tighten them to the specified torque. Tighten the oil pan-to-engine block bolts in a circular pattern from the center outwards, then tighten the oil pan-to-bellhousing bolts and the transaxle to engine bolts evenly. Finally, lower the vehicle to the ground and wait at least 1 hour for the sealant to cure before refilling the engine with oil, trimming off any excess sealant and installing a new oil filter.
