How do you remove and install the oil seal on Ford Edge?

Raise the vehicle and support it securely on jackstands, then drain the transfer case lubricant. Remove the driveshaft and mark the relative positions of the pinion, nut, and flange. Use a beam- or dial-type inch-pound torque wrench to determine the torque required to rotate the pinion while the vehicle is in Neutral, and record it for later use. Count the number of threads visible between the end of the nut and the end of the pinion shaft, recording that as well. Remove the flange mounting nut using a two-pin spanner to hold the pinion flange while loosening the locknut, then take off the companion flange with a puller that can attach to the flange's driveshaft bolt holes. Pry out the seal carefully with a screwdriver or seal removal tool, ensuring not to damage the seal bore, and then remove the seal deflector and the pinion seal using a seal-puller. After removing the seal, take out the collapsible bearing spacer and install a new one. Lubricate the lips of the new seal with multi-purpose grease and tap it evenly into position with a seal installation tool or a large socket, ensuring it enters the housing squarely and is fully seated. Align the mating marks made before disassembly and install the companion flange, tightening the pinion nut if necessary to draw the flange into place. Carefully tighten the new nut until the original number of threads are exposed and the marks are aligned, then measure the torque required to rotate the pinion, tightening the nut in small increments until it matches the previously recorded figure. If the original torque reading is exceeded by more than 3 in-lbs, the assembly will need to be disassembled again to install a new collapsible spacer. Finally, connect the driveshaft, add the specified lubricant to the transfer case, and lower the vehicle, ensuring that all driveshaft flange and support bearing bolts are replaced with new fasteners.

Genuine Ford Edge Transfer Case Seal

Transfer Case Output Shaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Transfer Case Seals found

View related parts
Ford Edge Seal
Part Number: 7T4Z-1177-C
$17.67 MSRP: $25.83
You Save: $8.16 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: Converter Side
- Position: Passenger Side
- Replaces: 7T4Z-1177-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2019 Ford Edge | 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS), 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Seal
Part Number: BB5Z-1S177-C
$19.27 MSRP: $30.73
You Save: $11.46 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: Converter Side
- Position: Passenger Side
- Replaces: BB5Z-1S177-A, BRS-171
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2019 Ford Edge | 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS), 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Seal
Part Number: BB5Z-1S177-A
$19.27 MSRP: $30.73
You Save: $11.46 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: Converter Side
- Position: Passenger Side
- Replaced by: BB5Z-1S177-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Seal
Part Number: 7T4Z-1177-B
$18.14 MSRP: $25.83
You Save: $7.69 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Position: Passenger Side
- Replaced by: 7T4Z-1177-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F50, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Seal
Part Number: 9L8Z-1177-A
$13.22 MSRP: $18.83
You Save: $5.61 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: Case Side
- Position: Driver Side
- Replaced by: 9L8Z-1177-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Seal
Part Number: 7T4Z-1177-D
$17.67 MSRP: $25.83
You Save: $8.16 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: Case Side
- Position: Driver Side
- Replaces: 7T4Z-1177-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2019 Ford Edge | 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS), 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Seal
Part Number: 9L8Z-1177-C
$6.86 MSRP: $10.65
You Save: $3.79 (36%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Manufacturer Note: Converter Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2019 Ford Edge | 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS) , 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive (Full Time) (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Seal
Part Number: DT4Z-7F337-A
$2.94 MSRP: $3.86
You Save: $0.92 (24%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manual Shaft Seal
- Replaces: 7T4Z-7F337-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2019 Ford Edge | 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS), 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Edge Seal
Part Number: 7T4Z-1177-A
$17.67 MSRP: $25.83
You Save: $8.16 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Position: Driver Side
- Replaced by: 7T4Z-1177-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2014 Ford Edge | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 3.5L DOHC VCT SMPI, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F50, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Edge Seal
Part Number: JM5Z-1S177-A
$14.39 MSRP: $22.36
You Save: $7.97 (36%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Drive Unit Outer Seal
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019 Ford Edge | 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS) , 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts

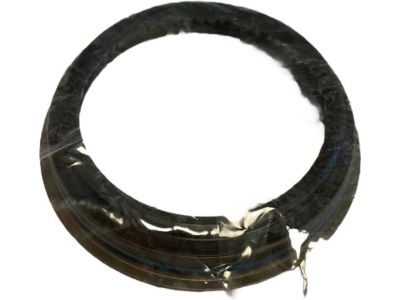

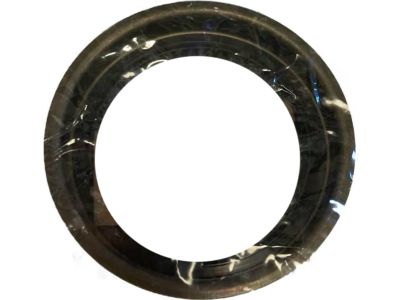

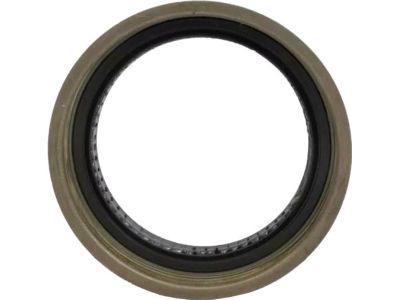

Ford Edge SEAL
Part Number: JM5Z-7H260-A
$8.62 MSRP: $13.40
You Save: $4.78 (36%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Passenger Side
- Replaces: JM5Z-1177-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019 Ford Edge | 4 Cyl 2.0L DOHC, 4 Cyl 2.0L Duratorq-TDCi (132kW/180PS) , 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT | Four-Wheel Drive (Full Time) (Left Hand Drive), Left Hand Drive

Ford Edge Transfer Case Seal

We provide a wide range of Ford Edge Transfer Case Seal at the best prices possible. If you need Ford Edge Transfer Case Seal, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Edge Transfer Case Seal Parts Questions & Experts Answers

Seal
7T4Z-1177-A
Q: How do you remove and install the oil seal on Ford Edge?
A: Raise the vehicle and support it securely on jackstands, then drain the Transfer Case lubricant. Remove the driveshaft and mark the relative positions of the pinion, nut, and flange. Use a beam- or dial-type inch-pound torque wrench to determine the torque required to rotate the pinion while the vehicle is in Neutral, and record it for later use. Count the number of threads visible between the end of the nut and the end of the pinion shaft, recording that as well. Remove the flange mounting nut using a two-pin spanner to hold the pinion flange while loosening the locknut, then take off the companion flange with a puller that can attach to the flange's driveshaft bolt holes. Pry out the seal carefully with a screwdriver or seal removal tool, ensuring not to damage the seal bore, and then remove the seal deflector and the pinion seal using a seal-puller. After removing the seal, take out the collapsible bearing spacer and install a new one. Lubricate the lips of the new seal with multi-purpose grease and tap it evenly into position with a seal installation tool or a large socket, ensuring it enters the housing squarely and is fully seated. Align the mating marks made before disassembly and install the companion flange, tightening the pinion nut if necessary to draw the flange into place. Carefully tighten the new nut until the original number of threads are exposed and the marks are aligned, then measure the torque required to rotate the pinion, tightening the nut in small increments until it matches the previously recorded figure. If the original torque reading is exceeded by more than 3 in-lbs, the assembly will need to be disassembled again to install a new collapsible spacer. Finally, connect the driveshaft, add the specified lubricant to the transfer case, and lower the vehicle, ensuring that all driveshaft flange and support bearing bolts are replaced with new fasteners.
