How to check and replace the fuel level sending unit in a Ford Explorer Sport Trac?

Raise the vehicle and support it securely on jackstands. Disconnect the fuel pump/sending unit electrical connector. On models through 2000, the fuel pump/sending unit electrical connector is attached to the left frame rail. Position the ohmmeter probes into the electrical connector and check the resistance. Using an ohmmeter, probe the terminals of the fuel level sensor connector to check the resistance. Use the 200-ohm scale on the ohmmeter. With the fuel tank completely full, the resistance should be about 160.0 ohms. With the fuel tank nearly empty, the resistance of the fuel level sensor should be about 15.0 ohms. If the readings are incorrect, replace the fuel level sensor. A more accurate check of the fuel level sensor can be made by removing it from the fuel tank and checking its resistance while manually operating the float arm. A more accurate check of the fuel level sensor can be performed with the assembly on the bench. Connect the ohmmeter probes to the connector and check the resistance of the fuel level sensor with the float positioned on "empty" and ''full". Check for a smooth change in resistance as the float is moved between the positions. Remove the fuel tank. Remove the fuel pump module from the fuel tank. Remove the fuel level sensor mounting bolt(s) and electrical connectors from the fuel pump module. Installation is the reverse of removal.

Genuine Ford Explorer Sport Trac Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Fuel Level Sensors found

View related parts

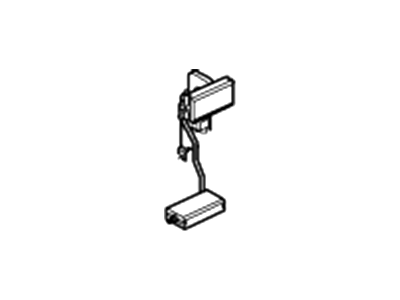

Ford Explorer Sport Trac Fuel Tank Sender Assembly
Part Number: 7L2Z-9A299-A
$157.30 MSRP: $260.00
You Save: $102.70 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank
- Replaces: 6L2Z-9A299-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

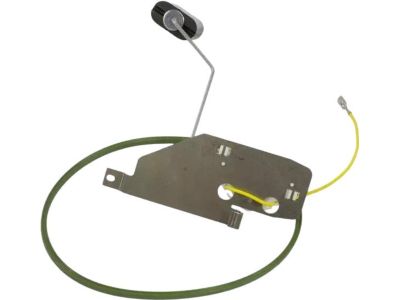

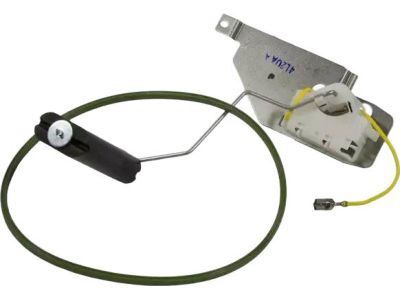

Ford Explorer Sport Trac Fuel Tank Sender Assembly
Part Number: 4L2Z-9A299-AA
$45.75 MSRP: $90.91
You Save: $45.16 (50%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Gauge Sending Unit, Fuel Sender Unit
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2005 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive
View related parts
Ford Explorer Sport Trac Fuel Tank Sender Assembly
Part Number: 6L2Z-9A299-A
$157.30 MSRP: $260.00
You Save: $102.70 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank
- Replaced by: 7L2Z-9A299-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI, 8 Cyl 4.6L | 5-Speed Automatic Transmission 5R55S, 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission 6R60, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Explorer Sport Trac Fuel Tank Sender Assembly
Part Number: 3L2Z-9A299-AA
$33.70 MSRP: $46.81
You Save: $13.11 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sender Assembly - Fuel Tank; Fuel Gauge Sending Unit
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2003 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive
View related parts
Ford Explorer Sport Trac Sender Assembly
Part Number: F77Z-9275-CA
Product Specifications
- Other Name: Sender Assy; Fuel Gauge Sending Unit, Fuel Sender Unit
- Manufacturer Note: Also serviced in 9H307
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive
View related parts
Ford Explorer Sport Trac Fuel Tank Sender Assembly
Part Number: XL2Z-9A299-AB
Product Specifications
- Other Name: Sender Assembly - Fuel Tank
- Manufacturer Note: Stripped Chassis
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive

Ford Explorer Sport Trac Fuel Level Sensor Parts Questions & Experts Answers

Fuel Tank Sender Assembly
4L2Z-9A299-AA
Q: How to check and replace the fuel level sending unit in a Ford Explorer Sport Trac?
A: Raise the vehicle and support it securely on jackstands. Disconnect the Fuel Pump/sending unit electrical connector. On models through 2000, the fuel pump/sending unit electrical connector is attached to the left frame rail. Position the ohmmeter probes into the electrical connector and check the resistance. Using an ohmmeter, probe the terminals of the fuel level sensor connector to check the resistance. Use the 200-ohm scale on the ohmmeter. With the Fuel Tank completely full, the resistance should be about 160.0 ohms. With the fuel tank nearly empty, the resistance of the fuel level sensor should be about 15.0 ohms. If the readings are incorrect, replace the fuel level sensor. A more accurate check of the fuel level sensor can be made by removing it from the fuel tank and checking its resistance while manually operating the float arm. A more accurate check of the fuel level sensor can be performed with the assembly on the bench. Connect the ohmmeter probes to the connector and check the resistance of the fuel level sensor with the float positioned on "empty" and ''full". Check for a smooth change in resistance as the float is moved between the positions. Remove the fuel tank. Remove the fuel pump module from the fuel tank. Remove the fuel level sensor mounting bolt(s) and electrical connectors from the fuel pump module. Installation is the reverse of removal.
