How to remove and install a master cylinder on Ford F-150?

The brake master cylinder is located in the engine compartment, mounted to the power brake booster. Using a large syringe or equivalent, siphon the brake fluid from the brake master cylinder reservoir and dispose of it properly. CAUTION: Brake fluid will damage paint. Cover all painted surfaces and avoid spilling fluid during this procedure. Disconnect the electrical connector from the fluid level warning switch. Place rags under the fluid fittings and prepare caps or plastic bags to cover the ends of the lines once they are disconnected. Loosen the fittings at the ends of the brake lines where they enter the brake master cylinder. To prevent rounding off the corners on these nuts, the use of a flare-nut wrench, which wraps around the nut, is preferred. Pull the brake lines slightly away from the brake master cylinder and plug the ends to prevent contamination. Remove the nuts attaching the brake master cylinder to the power booster. Pull the brake master cylinder off the studs and out of the engine compartment. Again, be careful not to spill the fluid as this is done. If a new brake master cylinder is being installed and is not equipped with a reservoir, transfer the reservoir from the old brake master cylinder to the new one using new seals. Remove the reservoir retaining pins and carefully pry the reservoir away from the old brake master cylinder. Use clean brake fluid to ease installation of the new seals and reservoir. Bench bleed the new brake master cylinder before installing it. Mount the brake master cylinder in a vise, with the jaws of the vise clamping on the mounting flange. Attach a pair of brake master cylinder bleeder tubes to the outlet ports of the brake master cylinder. Fill the reservoir with brake fluid of the recommended type. Slowly push the pistons into the brake master cylinder - air will be expelled from the pressure chambers and into the reservoir. Repeat the procedure until no more air bubbles are present. Remove the bleed tubes, one at a time, and install plugs in the open ports to prevent fluid leakage and air from entering. Install the reservoir cap. Install the brake master cylinder over the studs on the power brake booster and tighten the attaching nuts only finger light at this time. Note: Be sure to install a new O-ring into the sleeve of the brake master cylinder. Thread the brake line fittings into the brake master cylinder. Since the brake master cylinder is still a bit loose, it can be moved slightly in order for the fittings to thread in easily. Be careful not to cross-thread or strip the fittings as they are installed. Fully tighten the mounting nuts, then the brake line fittings.

Genuine Ford F-150 Brake Master Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

27 Brake Master Cylinders found

View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: BL3Z-2140-A
$143.00 MSRP: $236.36
You Save: $93.36 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: DL1Z-2140-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2013 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: HL3Z-2140-A
$103.97 MSRP: $165.82
You Save: $61.85 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: JL3Z-2140-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2019 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.0L 4V DOHC TC DSL-LION B , 6 Cyl 3.3L Duratec, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L Coyote | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: FL3Z-2140-A
$103.97 MSRP: $165.82
You Save: $61.85 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: JL3Z-2140-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2016 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: GL3Z-2140-A
$103.97 MSRP: $165.82
You Save: $61.85 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Master Cylinder
- Replaced by: JL3Z-2140-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2017 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assembly - Master

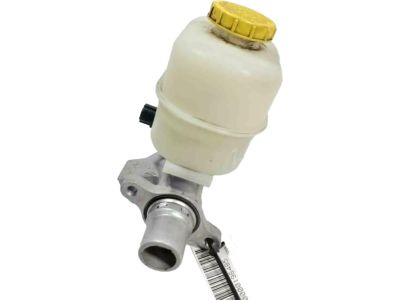

Part Number: EL3Z-2140-B
$116.28 MSRP: $185.45
You Save: $69.17 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master
- Manufacturer Note: "DOT 4"
- Replaced by: EL3Z-2140-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assy - Master

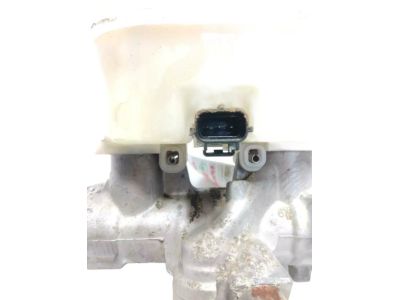

Part Number: AL3Z-2140-A
$143.00 MSRP: $236.36
You Save: $93.36 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: DL1Z-2140-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010 Ford F-150 | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: FL3Z-2140-B
$126.50 MSRP: $209.09
You Save: $82.59 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: HL3Z-2140-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: FL3Z-2140-E
$126.50 MSRP: $209.09
You Save: $82.59 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: HL3Z-2140-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2016 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: GL3Z-2140-B
$126.50 MSRP: $209.09
You Save: $82.59 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: HL3Z-2140-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 CYLINDER ASY - MASTER
Part Number: JL3Z-2140-A
$103.97 MSRP: $165.82
You Save: $61.85 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Master Cylinder
- Replaces: BRMC-258, BRMC-223, HL3Z-2140-A, BRMC-245, GL3Z-2140-A, BRMC-254, FL3Z-2140-A, FL3Z-2140-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2020 Ford F-150 | 6 Cyl 2.7 L GAS, 6 Cyl 2.7L, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.0L 4V DOHC TC DSL-LION B, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3L Duratec, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0 L FLEX, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: FL3Z-2140-C
$103.97 MSRP: $165.82
You Save: $61.85 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: JL3Z-2140-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: YL1Z-2140-AA
$0.00
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: YL1Z-2140-AC
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Ford F-150 | 6 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: 1L1Z-2140-AA
$0.00
Product Specifications
- Other Name: Cylinder Assy - Master
- Replaced by: 1L1Z-2140-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002 Ford F-150 | 6 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: 3L3Z-2140-BA
$0.00
Product Specifications

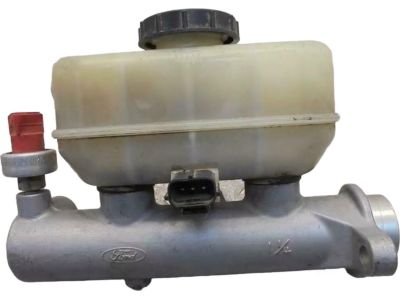

- Other Name: Cylinder Assy - Master; Master Cylinder
- Manufacturer Note: Master cylinder, without speed control - 4 wheel disc
- Replaces: YL1Z-2140-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2004 Ford F-150 | 6 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT, 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: YL1Z-2140-BA
$0.00
Product Specifications
- Other Name: Cylinder Assy - Master
- Manufacturer Note: Master cylinder, without speed control - 4 wheel disc -, BEFORE 12/13/01
- Replaced by: 3L3Z-2140-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Ford F-150 | 6 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-150 Cylinder Assy - Master
Part Number: 1L1Z-2140-BA
Product Specifications
- Other Name: Master Cylinder
- Manufacturer Note: Master cylinder, without speed control - 4 wheel disc -, FROM 12/13/01
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002 Ford F-150 | 6 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: 3L3Z-2140-AC
Product Specifications
- Other Name: Cylinder Assy - Master
- Manufacturer Note: Master cylinder, with speed control - 4 wheel disc
- Replaced by: 3L3Z-2140-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Ford F-150 | 6 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT, 4AT 4R100, 4AT 4R70W, 5MT
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: F4TZ-2140-F
Product Specifications
- Other Name: Cylinder Assy - Master
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1996 Ford F-150 | 6 Cyl 3.8L, 6 Cyl 4.9L, 8 Cyl 5.0L, 8 Cyl 5.8L | 3AT C6, 4AT 4R70W, 4AT 4R75W, 4AT E4OD, 4MT, 5MT
View related parts
Ford F-150 Cylinder Assembly - Master
Part Number: F75Z-2140-NB
Product Specifications
- Other Name: Cylinder Assy - Master
- Manufacturer Note: Master cylinder, with speed control - rear drum
- Replaced by: F75Z-2140-NC
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-1999 Ford F-150 | 6 Cyl 4.2L, 6 Cyl 4.9L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 4AT E4OD, 5MT
View related parts
Ford F-150 Cylinder Assy - Master
Part Number: F75Z-2140-PA
Product Specifications
- Other Name: Master Cylinder
- Manufacturer Note: Master cylinder, without speed control - rear drum
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-1999 Ford F-150 | 6 Cyl 4.2L, 6 Cyl 4.9L, 8 Cyl 4.6L, 8 Cyl 5.4L | 4AT 4R100, 4AT 4R70W, 4AT E4OD, 5MT

| Page 1 of 2 |Next >

1-20 of 27 Results

Ford F-150 Brake Master Cylinder

Brake Master Cylinder is one of the key brake systems in Ford F-150 picking up the driver's foot pressure, and hydraulically amplify it to push the brake shoes out. This hydraulic pressure is taken by the slave cylinders to engage the brakes and thus the required friction to halt the vehicle. The master cylinder often has pistons, seals, and springs; and can be made from cast iron or aluminium, whilst the internal or external fluid reservoir. This has been implemented in F-150s since 1967 with a twin-circuit master cylinder in that even if one of the circuits seizes or fails, the other will have enough and adequate force to enable braking. Features in the design are for instance the piston cup deflection and ports in order to ensure supply of fluid. Some problems that occur in the Brake Master Cylinder are leaks and internal problems that cause reduced brake knowledge. Another activity that has to be performed on the F-150 is the inspection of the vehicle's braking system to check whether is safe for use or requires servicing.

We provide a wide range of Ford F-150 Brake Master Cylinder at the best prices possible. If you need Ford F-150 Brake Master Cylinder, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford F-150 Brake Master Cylinder Parts Questions & Experts Answers

Cylinder Assembly - Master
7L3Z-2140-A
Q: How to remove and install a master cylinder on Ford F-150?
A: The brake master cylinder is located in the engine compartment, mounted to the power Brake Booster. Using a large syringe or equivalent, siphon the brake fluid from the brake master cylinder reservoir and dispose of it properly. CAUTION: Brake fluid will damage paint. Cover all painted surfaces and avoid spilling fluid during this procedure. Disconnect the electrical connector from the fluid level warning switch. Place rags under the fluid fittings and prepare caps or plastic bags to cover the ends of the lines once they are disconnected. Loosen the fittings at the ends of the Brake Lines where they enter the brake master cylinder. To prevent rounding off the corners on these nuts, the use of a flare-nut wrench, which wraps around the nut, is preferred. Pull the brake lines slightly away from the brake master cylinder and plug the ends to prevent contamination. Remove the nuts attaching the brake master cylinder to the power booster. Pull the brake master cylinder off the studs and out of the engine compartment. Again, be careful not to spill the fluid as this is done. If a new brake master cylinder is being installed and is not equipped with a reservoir, transfer the reservoir from the old brake master cylinder to the new one using new seals. Remove the reservoir retaining pins and carefully pry the reservoir away from the old brake master cylinder. Use clean brake fluid to ease installation of the new seals and reservoir. Bench bleed the new brake master cylinder before installing it. Mount the brake master cylinder in a vise, with the jaws of the vise clamping on the mounting flange. Attach a pair of brake master cylinder bleeder tubes to the outlet ports of the brake master cylinder. Fill the reservoir with brake fluid of the recommended type. Slowly push the pistons into the brake master cylinder - air will be expelled from the pressure chambers and into the reservoir. Repeat the procedure until no more air bubbles are present. Remove the bleed tubes, one at a time, and install plugs in the open ports to prevent fluid leakage and air from entering. Install the reservoir cap. Install the brake master cylinder over the studs on the power brake booster and tighten the attaching nuts only finger light at this time. Note: Be sure to install a new O-ring into the sleeve of the brake master cylinder. Thread the brake line fittings into the brake master cylinder. Since the brake master cylinder is still a bit loose, it can be moved slightly in order for the fittings to thread in easily. Be careful not to cross-thread or strip the fittings as they are installed. Fully tighten the mounting nuts, then the brake line fittings.
