How to remove and install a radiator on Ford F-150?

A special tool, available at most auto parts stores, is necessary to disconnect the transmission oil cooler lines from the radiator. For 2009 and later models, have the air conditioning system refrigerant discharged and recovered by a licensed technician. Drain the cooling system, saving and reusing coolant if it is relatively new and in good condition. For 2004 through 2008 5.4L engine models, remove the inlet duct to the air cleaner housing, while for 2004 through 2008 4.6L engine models, remove the air cleaner housing. On all 2009 and later models, remove the coolant expansion tank/air filter lower housing. Disconnect the upper and lower radiator hoses and the expansion tank hose from the radiator, using hose clamp pliers or regular pliers to loosen the clamps. On 2011 and later models, the lower radiator hose is attached with a spring clip, which should be pried up to remove the hose. If any hose is stuck, use adjustable pliers to twist and break the seal. Remove the cooling fan(s) and fan shroud, and for 2011 and later models with a power steering cooler, separate the power steering fluid hoses from the cooler. From below, remove the pushpins and quarter-turn fasteners to take off the lower air deflector. For 2009 and later models, disconnect the hose from the power steering cooler and remove the bolt and nut securing the upper and lower air conditioning condenser fittings, discarding old gasket seals and O-rings. Release the retainers from the air deflectors and remove them. For models with automatic transmissions, disconnect the oil cooler lines from the radiator using the special tool. If replacing the radiator, ensure the new one has the same type of line fitting. Disconnect the electrical connector from the horn and detach the retainers for the ambient temperature sensor and wiring harness. For 2004 through 2008 models, remove the radiator mounting brackets and insulators. For 2009 and later models, remove the upper mounting bracket bolts and lift the condenser and radiator out as a single assembly, disconnecting the transmission fluid cooler hoses and releasing the lock tabs to separate the radiator from the condenser. On 2011 and later models, pull the condenser assembly forward to separate it from the radiator and remove the bolts securing the top of the radiator to the support. Carefully lift the radiator from the engine compartment, ensuring not to spill coolant or scratch the paint, and return any rubber insulators to their original positions during installation. Clean the radiator with compressed air and a soft brush, inspecting for leaks and damage, and have repairs done if necessary. Inspect the rubber insulators for cracks and dirt before installing the radiator, ensuring it is correctly seated on the insulators before fastening the top brackets. Installation is the reverse of removal, followed by filling the cooling system with the correct mixture of antifreeze and water, and reconnecting the battery. Start the engine to check for leaks, allowing it to reach normal operating temperature, and recheck the coolant level, adding more if required. For models with an automatic transmission, check and add ATF fluid as needed.

Genuine Ford F-150 Radiator

Cooling Radiator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

56 Radiators found

View related parts

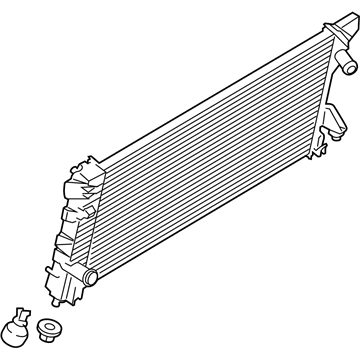

Ford F-150 Radiator Assembly
Part Number: HL3Z-8005-C
$225.48 MSRP: $344.77
You Save: $119.29 (35%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Radiator Assy; Radiator
- Replaces: HL3Z-8005-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2020 Ford F-150 | 6 Cyl 2.7 L GAS, 6 Cyl 2.7L, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3L Duratec, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI, 8 Cyl 5.0 L FLEX, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Radiator Assembly
Part Number: HL3Z-8005-B
$264.52 MSRP: $404.47
You Save: $139.95 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy; Radiator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2023 Ford F-150 | 6 Cyl 2.7 L GAS, 6 Cyl 2.7L, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.0L 4V DOHC TC DSL-LION B, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3L Duratec, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Radiator Assembly
Part Number: FL3Z-8005-A
$282.71 MSRP: $432.28
You Save: $149.57 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: FL3Z-8005-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2017 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Radiator Assembly
Part Number: BL3Z-8005-B
$228.83 MSRP: $349.90
You Save: $121.07 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Replaced by: CL3Z-8005-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 8 Cyl 5.0L MOD DOHC SEFI NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Radiator Assembly
Part Number: BL3Z-8005-C
$311.12 MSRP: $475.72
You Save: $164.60 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Manufacturer Note: (CP) Designates Crash Part - When Ordering Please Refer To Crash Part Truckload Program Guidelines
- Replaced by: CL3Z-8005-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Radiator Assembly
Part Number: BL3Z-8005-D
$354.11 MSRP: $541.45
You Save: $187.34 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: CL3Z-8005-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford F-150 | 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Radiator Assembly
Part Number: 9L3Z-8005-B
$244.09 MSRP: $360.02
You Save: $115.93 (33%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Radiator Assy; Radiator
- Replaced by: CL1Z-8005-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2014 Ford F-150 | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Radiator Assembly
Part Number: F2TZ-8005-DA
$294.20 MSRP: $405.31
You Save: $111.11 (28%)
ADD TO CART
Product Specifications
- Other Name: Radiator Assy; Radiator
- Manufacturer Note: Includes Instruction Sheet and attaching parts(s)
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993 Ford F-150 | 8 Cyl 5.8L | 3AT C6, 4AT AOD, 4AT E4OD, 4MT, 5MT
View related parts
Ford F-150 Radiator Assembly
Part Number: BL3Z-8005-A
$228.83 MSRP: $349.90
You Save: $121.07 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: CL3Z-8005-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford F-150 | 6 Cyl 3.7L PFI NA, 8 Cyl 5.0L MOD DOHC SEFI NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Radiator Assembly
Part Number: HL3Z-8005-A
$225.48 MSRP: $344.77
You Save: $119.29 (35%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: HL3Z-8005-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2017 Ford F-150 | 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Radiator Assembly
Part Number: AL3Z-8005-E
$354.11 MSRP: $541.45
You Save: $187.34 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: CL3Z-8005-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010 Ford F-150 | 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

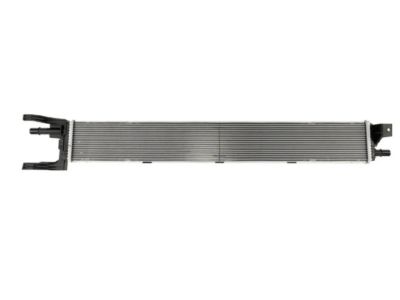

Ford F-150 RADIATOR ASY
Part Number: ML3Z-8005-C
$155.10 MSRP: $226.75
You Save: $71.65 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2023 Ford F-150 | 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Ford F-150 RADIATOR ASY
Part Number: ML3Z-8005-D
$171.97 MSRP: $260.57
You Save: $88.60 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2023 Ford F-150 | 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS
View related parts
Ford F-150 Radiator Assembly
Part Number: 9L3Z-8005-A
$244.09 MSRP: $360.02
You Save: $115.93 (33%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: CL1Z-8005-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2014 Ford F-150 | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 RADIATOR ASY
Part Number: ML3Z-8005-B
$301.89 MSRP: $445.27
You Save: $143.38 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2023 Ford F-150 | 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford F-150 Radiator Assembly
Part Number: F5UZ-8005-B
$515.48 MSRP: $716.09
You Save: $200.61 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy; Radiator
- Manufacturer Note: WITH A/C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1980-1989 Ford F-150 | 6 Cyl 3.8L, 6 Cyl 4.9L, 8 Cyl 5.0L, 8 Cyl 5.8L, 8 Cyl 6.9L | 3AT C5, 3AT C6, 3MT, 4AT AOD, 4MT, 5MT
View related parts
Ford F-150 RADIATOR ASY
Part Number: ML3Z-8005-A
$270.69 MSRP: $399.25
You Save: $128.56 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2023 Ford F-150 | 6 Cyl 2.7 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX
View related parts
Ford F-150 Radiator Assembly
Part Number: 6L3Z-8005-F
$479.02 MSRP: $665.43
You Save: $186.41 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy; Radiator
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2008 Ford F-150 | 6 Cyl 4.2L OHV EFI | 5-Speed Manual Transmission - Mazda M5R2-C, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 RADIATOR ASY
Part Number: NL3Z-8005-C
$429.33 MSRP: $633.23
You Save: $203.90 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Auxiliary Radiator, Radiator
- Replaces: NL3Z-8005-B, RAD-282
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2023 Ford F-150 | 8 Cyl 5.2 L GAS
View related parts
Ford F-150 Radiator Assembly
Part Number: 5L3Z-8005-AC
$0.00
Product Specifications
- Other Name: Radiator Assy
- Replaced by: H2MZ-8005-AD
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005 Ford F-150 | 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

| Page 1 of 3 |Next >

1-20 of 56 Results

Ford F-150 Radiator

Radiator of F-150: The F-150 car model is equipped with a four-wheel drive system and the radiator operates as a heat exchanger which transfer heat from the engine coolant to the air. Generally, the radiator inhibits a core of fin and tube and for most of the circumstances, it is mostly made of aluminum though there are copper/brass too. The Ford F-150 comes with a radiator that is well located at the front thus improving on its functionality of cooling. In FW through the years, there has been many types of radiators which were on the Ford F-150 cars, the standard types as well as the high performance models. Various types of performance radiators have enhanced aspects like larger tube diameter and more number of fins accommodated to enhance the flow of coolant and better heat dissipation that leads to cooling of the engine. The usual versions of standard radiators have plastic tanks that are prone to leakage, while the performance versions usually have aluminum tanks. Simple fluid change as well as pressure check is recommended to make sure that the Ford F-150 radiator is in proper working condition to avoiding over heating.

We provide a wide range of Ford F-150 Radiator at the best prices possible. If you need Ford F-150 Radiator, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford F-150 Radiator Parts Questions & Experts Answers

Radiator Assembly
9L3Z-8005-B
Q: How to remove and install a radiator on Ford F-150?
A: A special tool, available at most auto parts stores, is necessary to disconnect the transmission oil cooler lines from the radiator. For 2009 and later models, have the air conditioning system refrigerant discharged and recovered by a licensed technician. Drain the cooling system, saving and reusing coolant if it is relatively new and in good condition. For 2004 through 2008 5.4L engine models, remove the inlet duct to the air cleaner housing, while for 2004 through 2008 4.6L engine models, remove the air cleaner housing. On all 2009 and later models, remove the coolant expansion tank/air filter lower housing. Disconnect the upper and lower radiator hoses and the expansion tank hose from the radiator, using hose clamp pliers or regular pliers to loosen the clamps. On 2011 and later models, the lower radiator hose is attached with a spring clip, which should be pried up to remove the hose. If any hose is stuck, use adjustable pliers to twist and break the seal. Remove the cooling fan(s) and fan shroud, and for 2011 and later models with a power steering cooler, separate the power steering fluid hoses from the cooler. From below, remove the pushpins and quarter-turn fasteners to take off the lower air deflector. For 2009 and later models, disconnect the hose from the power steering cooler and remove the bolt and nut securing the upper and lower air conditioning condenser fittings, discarding old gasket seals and O-rings. Release the retainers from the air deflectors and remove them. For models with automatic transmissions, disconnect the oil cooler lines from the radiator using the special tool. If replacing the radiator, ensure the new one has the same type of line fitting. Disconnect the electrical connector from the horn and detach the retainers for the ambient temperature sensor and wiring harness. For 2004 through 2008 models, remove the radiator mounting brackets and insulators. For 2009 and later models, remove the upper mounting bracket bolts and lift the condenser and radiator out as a single assembly, disconnecting the transmission fluid cooler hoses and releasing the lock tabs to separate the radiator from the condenser. On 2011 and later models, pull the condenser assembly forward to separate it from the radiator and remove the bolts securing the top of the radiator to the support. Carefully lift the radiator from the engine compartment, ensuring not to spill coolant or scratch the paint, and return any rubber insulators to their original positions during installation. Clean the radiator with compressed air and a soft brush, inspecting for leaks and damage, and have repairs done if necessary. Inspect the rubber insulators for cracks and dirt before installing the radiator, ensuring it is correctly seated on the insulators before fastening the top brackets. Installation is the reverse of removal, followed by filling the cooling system with the correct mixture of antifreeze and water, and reconnecting the battery. Start the engine to check for leaks, allowing it to reach normal operating temperature, and recheck the coolant level, adding more if required. For models with an automatic transmission, check and add ATF fluid as needed.
