How do you remove the washer reservoir,Washer Nozzle and pump on Ford Focus?

To remove the washer reservoir and pump for 2007 and earlier models, open the hood and take out the securing bolt for the washer bottle filler neck, then pull the filler neck up to disengage it from the reservoir. Apply the parking brake, loosen the left-hand front wheel nuts, jack up the front of the car, and support it on axle stands before removing the front wheel. Remove the retaining screws and release the fender well liner for access to the reservoir; on 2005 models, also remove the drive bell splash shield and set aside the air-conditioning accumulator to access the bolts securing the washer bottle. Unscrew the mounting bolts and slide the reservoir forward to release it from the inner fender panel, then disconnect the washer hoses and wiring connector from the washer pump while anticipating some fluid loss. Pull the windshield washer pump and, if applicable, the headlight washer pump from the reservoir, and check the rubber seal/filler for damage. For 2008 and later models, remove the upper washer reservoir mounting screw, move the engine coolant reservoir out of the way, raise the vehicle securely on jackstands, and remove the lower air deflector. Disconnect the wiring from the washer pump, detach the hose, drain the reservoir into a container, and then remove the mounting nut and screws to take out the washer reservoir and pump assembly. For the windshield washer jet, with the hood open, disconnect the washer tube from the bottom of the jet and, if necessary, disconnect the wiring for the jet heater before carefully prying the jet out from the hood. For Hatchback and Wagon models, remove the high-level brake-light unit by undoing the securing screws, pull the washer tube from the jet, and check with a dealer about the availability of the washer jet separately from the rear light lens. For the headlight washer jet, remove the front bumper, disconnect the washer tube from the base of the jet, and withdraw the jet from the bumper after removing the retaining clip or screw. Installation is the reverse of removal, ensuring that the window washer jets are pressed in firmly, the front bumper is reinstalled after the headlight washer jet, and the grommet is lubricated with a water-based lubricant when reinstalling the washer reservoir.

Genuine Ford Focus Washer Pump

Windshield Washer Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Washer Pumps found

View related parts

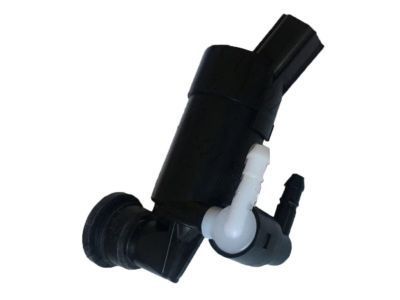

Ford Focus Motor And Pump Assembly
Part Number: 7R3Z-17664-A
$18.62 MSRP: $35.64
You Save: $17.02 (48%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy; Front Washer Pump, Rear Washer Pump, Washer Pump
- Replaces: 6F1Z-17664-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Focus | 4 Cyl 2.0L Duratec HE, 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

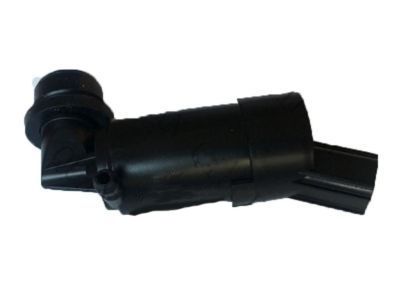

Ford Focus Motor And Pump Assembly
Part Number: 6F1Z-17664-A
$18.62 MSRP: $35.64
You Save: $17.02 (48%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy
- Manufacturer Note: Submersible-terminals covered, windshield reservoir
- Replaced by: 7R3Z-17664-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford Focus | 4 Cyl 2.0L Duratec HE, 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

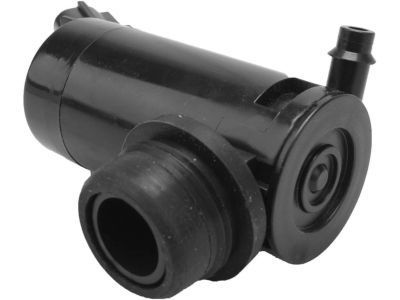

Ford Focus Motor And Pump Assembly
Part Number: F5RZ-17664-A
$17.35 MSRP: $23.27
You Save: $5.92 (26%)
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy; Front Washer Pump, Washer Pump
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2003 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.3L | 4AT 4F27E, 5MT, 6MT
View related parts

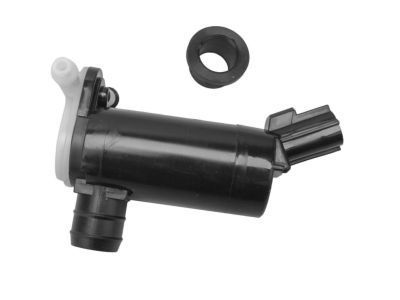

Ford Focus Motor And Pump Assembly
Part Number: EOAZ-17664-A
$129.02 MSRP: $256.36
You Save: $127.34 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy; Front Washer Pump, Pump, Washer Pump
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2003 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.3L | 4AT 4F27E, 5MT, 6MT
View related parts

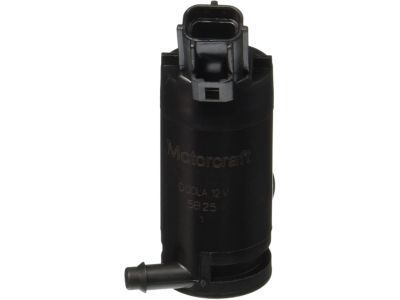

Ford Focus Motor And Pump Assembly
Part Number: 7L2Z-17664-A
$21.77 MSRP: $34.73
You Save: $12.96 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy
- Manufacturer Note: Dual Outlet
- Replaces: 6F9Z-17664-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Focus | 4 Cyl 2.0L Duratec HE, 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

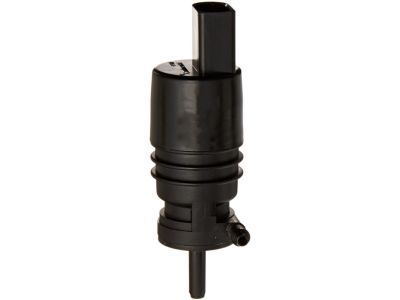

Ford Focus Motor And Pump Assembly
Part Number: CV6Z-17664-B
$28.84 MSRP: $46.00
You Save: $17.16 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy
- Replaced by: BV6Z-17664-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2018 Ford Focus | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 2.0L DI TIVCT Petrol, 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.3L Ecoboost, Electric Motor | 1-Speed Transmission, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts
Ford Focus Motor And Pump Assembly
Part Number: CV6Z-17664-A
$23.48 MSRP: $37.45
You Save: $13.97 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy
- Replaced by: BV6Z-17664-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2018 Ford Focus | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS, 4 Cyl 2.0L DI TIVCT Petrol, 4 Cyl 2.0L EcoBoost (240PS) , Electric Motor | 1-Speed Transmission, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Motor And Pump Assembly
Part Number: 6F9Z-17664-A
$21.77 MSRP: $34.73
You Save: $12.96 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy
- Manufacturer Note: Dual Outlet
- Replaced by: 7L2Z-17664-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Focus | 4 Cyl 2.0L Duratec HE, 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Motor And Pump Assembly
Part Number: 8S4Z-17664-AA
$28.55 MSRP: $44.36
You Save: $15.81 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy; Washer Pump
- Replaced by: 8S4Z-17664-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2011 Ford Focus | 4 Cyl 2.0L Duratec HE | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Motor And Pump Assembly
Part Number: YS4Z-17664-BA
$21.29 MSRP: $33.09
You Save: $11.80 (36%)
ADD TO CART
Product Specifications
- Other Name: Motor And Pump Assy; Front Washer Pump, Rear Washer Pump, Washer Pump
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2004 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.0L CVH EFI, 4 Cyl 2.0L Zetec EFI, 4 Cyl 2.0L Zetec VVT, 4 Cyl 2.3L | 4AT 4F27E, 4-Speed Automatic Transaxle - 4F27E, 5MT, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6MT, 6-Speed Manual Transmission, Front-Wheel Drive (Left Hand Drive), Left Hand Drive

Ford Focus Washer Pump

We provide a wide range of Ford Focus Washer Pump at the best prices possible. If you need Ford Focus Washer Pump, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Focus Washer Pump Parts Questions & Experts Answers

Motor And Pump Assembly
EOAZ-17664-A
Q: How do you remove the washer reservoir,Washer Nozzle and pump on Ford Focus?
A: To remove the washer reservoir and pump for 2007 and earlier models, open the hood and take out the securing bolt for the washer bottle filler neck, then pull the filler neck up to disengage it from the reservoir. Apply the parking brake, loosen the left-hand front wheel nuts, jack up the front of the car, and support it on axle stands before removing the front wheel. Remove the retaining screws and release the fender well liner for access to the reservoir; on 2005 models, also remove the drive bell splash shield and set aside the air-conditioning accumulator to access the bolts securing the washer bottle. Unscrew the mounting bolts and slide the reservoir forward to release it from the inner fender panel, then disconnect the washer hoses and wiring connector from the washer pump while anticipating some fluid loss. Pull the windshield washer pump and, if applicable, the headlight washer pump from the reservoir, and check the rubber seal/filler for damage. For 2008 and later models, remove the upper washer reservoir mounting screw, move the engine coolant reservoir out of the way, raise the vehicle securely on jackstands, and remove the lower air deflector. Disconnect the wiring from the washer pump, detach the hose, drain the reservoir into a container, and then remove the mounting nut and screws to take out the washer reservoir and pump assembly. For the windshield washer jet, with the hood open, disconnect the washer tube from the bottom of the jet and, if necessary, disconnect the wiring for the jet heater before carefully prying the jet out from the hood. For Hatchback and Wagon models, remove the high-level brake-light unit by undoing the securing screws, pull the washer tube from the jet, and check with a dealer about the availability of the washer jet separately from the rear light lens. For the headlight washer jet, remove the front bumper, disconnect the washer tube from the base of the jet, and withdraw the jet from the bumper after removing the retaining clip or screw. Installation is the reverse of removal, ensuring that the window washer jets are pressed in firmly, the front bumper is reinstalled after the headlight washer jet, and the grommet is lubricated with a water-based lubricant when reinstalling the washer reservoir.
