How to remove and install the Control Arm on Ford Fusion?

A suspension bolt should be replaced with new fasteners during assembly. For 2012 and earlier models, begin by loosening the wheel lug nuts on the side to be dismantled, raising the front of the vehicle, supporting it securely on jackstands, and removing the wheel. Disconnect the steering shaft from the steering gear, ensuring the steering wheel does not turn to avoid damaging the airbag clockspring. Disconnect the tie-rod ends from the steering knuckles, then remove the steering gear mounting bolts. Detach the exhaust pipe(s) from the exhaust manifold(s) and, if working on an All-Wheel Drive model, detach the driveshaft from the transfer case. Support the rear of the subframe with a floor jack, loosen the front subframe mounting fasteners, remove the rear subframe fasteners, and lower the rear of the subframe with the jack. For either lower arm, loosen the lower arm-to-balljoint nut, position a block of wood under the outer CV joint of the driveaxle to prevent damage, and use a balljoint removal tool to separate the balljoint. If removing the front lower arm, remove the damper fork mounting bolt at the front lower control arm, then remove the arm-to-subframe mounting bolt and the lower control arm. The upper control arm is attached to the top of the steering knuckle with a balljoint and to two positions on the chassis with pivot bolts. Unbolt the wheel speed sensor and the three upper strut-to-body nuts, disconnect the balljoint at the top of the steering knuckle, then remove the inner arm mounting bolts and the upper arm. For 2013 and later models, repeat the initial steps of loosening the wheel lug nuts, raising the vehicle, and removing the wheel, then remove the engine lower splash shields. Remove the nut and pinch bolt, separate the balljoint from the steering knuckle, and remove the control arm front pivot bolt and spacer, followed by the two rear bushing bracket bolts to remove the control arm. Inspect the control arm for distortion and the bushings for wear, replacing parts as necessary, and do not attempt to straighten a bent control arm. Installation is the reverse of removal, ensuring all fasteners are tightened to the specified torque values. Before tightening the control arm fasteners, raise the outer end of the control arm with a floor jack to simulate normal ride height. For upper control arms from 2012 and earlier, install the pivot bolts loosely, then use a 0.25-inch drill bit through the two holes in the chassis just below the bushing to set the proper height for tightening the pivot bolts. Finally, install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts to the specified torque, and it is advisable to have the front wheel alignment checked and adjusted if necessary after completing the job.

Genuine Ford Fusion Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

65 Control Arms found

View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: AE5Z-3084-A
$85.36 MSRP: $141.09
You Save: $55.73 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension; Upper Control Arm
- Manufacturer Note: Original Design
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2012 Ford Fusion | 4 Cyl 2.3L, 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assy - Rear Suspension
Part Number: DG9Z-5500-K
$69.72 MSRP: $127.00
You Save: $57.28 (46%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Upper Control Arm
- Position: Rear
- Replaces: DG9Z-5500-F, DG9Z-5500-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: 5M8Z-3078-S
$64.32 MSRP: $87.88
You Save: $23.56 (27%)
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Position: Front
- Replaced by: 6M8Z-3078-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Ford Fusion | 4 Cyl 2.3L, 6 Cyl 3.0L DOHC EFI, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: GS7Z-3078-B
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension; Lower Control Arm
- Position: Passenger Side
- Replaces: DG9Z-3078-A, DG9Z-3078-B, MCF-2341, GS7Z-3078-A, FG9Z-3078-C, FG9Z-3078-A, MCF-2403, MCF-2375, MCF-2243, MCF-2303
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: GS7Z-3079-B
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension; Lower Control Arm
- Position: Driver Side
- Replaces: DG9Z-3079-B, DG9Z-3079-A, MCF-2376, FG9Z-3079-A, MCF-2342, GS7Z-3079-A, FG9Z-3079-C, MCF-2404, MCF-2245, MCF-2304
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: AE5Z-3078-A
$68.75 MSRP: $113.64
You Save: $44.89 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Replaces: 7E5Z-3078-R, BE5Z-3078-A, MCSOE-40, MCF-8
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2012 Ford Fusion | 4 Cyl 2.3L, 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: BE5Z-3079-A
$85.28 MSRP: $169.45
You Save: $84.17 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension; Rear Arm, Rear Lower Control Arm
- Position: Driver Side
- Replaces: 5M8Z-3079-L, 6M8Z-3079-L, MCSOE-123, 7E5Z-3079-L, MCSOE-139
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2012 Ford Fusion | 4 Cyl 2.3L, 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: BE5Z-3078-B
$106.26 MSRP: $175.64
You Save: $69.38 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension; Rear Arm, Rear Lower Control Arm
- Position: Passenger Side
- Replaces: 6M8Z-3078-R, 5M8Z-3078-R, MCSOE-93, 7E5Z-3078-RA, MCSOE-107
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2012 Ford Fusion | 4 Cyl 2.3L, 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: AE5Z-3085-A
$76.78 MSRP: $126.91
You Save: $50.13 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension; Upper Control Arm
- Manufacturer Note: Original Design
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2012 Ford Fusion | 4 Cyl 2.3L, 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: DG9Z-3079-B
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Manufacturer Note: (LH)
- Position: Driver Side
- Replaced by: GS7Z-3079-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2015 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: 7E5Z-3078-R
$68.75 MSRP: $113.64
You Save: $44.89 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Replaced by: AE5Z-3078-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2011 Ford Fusion | 4 Cyl 2.3L, 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: DG9Z-3079-A
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Manufacturer Note: (LH)
- Position: Driver Side
- Replaced by: GS7Z-3079-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013 Ford Fusion | 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: DG9Z-3078-A
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Manufacturer Note: (RH)
- Position: Passenger Side
- Replaced by: GS7Z-3078-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013 Ford Fusion | 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: BE5Z-3078-A
$68.75 MSRP: $113.64
You Save: $44.89 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Manufacturer Note: RH/LH
- Position: Passenger Side/Driver Side
- Replaced by: AE5Z-3078-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2012 Ford Fusion | 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: DG9Z-3078-B
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Position: Passenger Side
- Replaced by: GS7Z-3078-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2015 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion ROD
Part Number: DG9Z-5K898-B
$69.17 MSRP: $90.00
You Save: $20.83 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Trailing Arm
- Replaces: DG9Z-5K898-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.0L EcoBoost (240PS), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

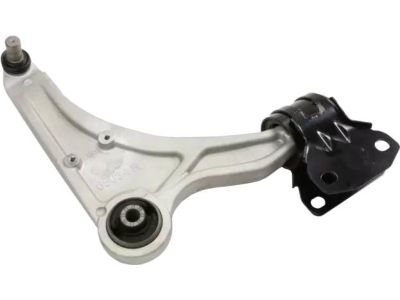

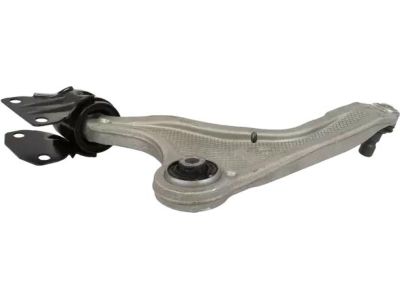

Ford Fusion Arm Assembly - Front Suspension

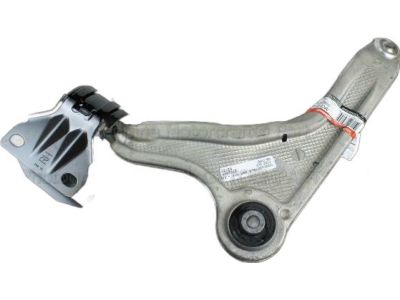

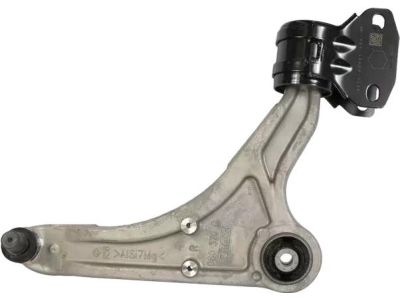

Part Number: GS7Z-3078-A
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Manufacturer Note: (RH)
- Position: Passenger Side
- Replaced by: GS7Z-3078-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2017 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) , 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: FG9Z-3078-C
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Position: Passenger Side
- Replaced by: GS7Z-3078-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

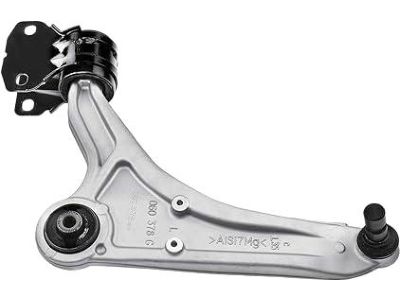

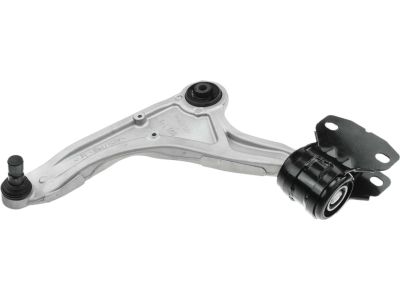

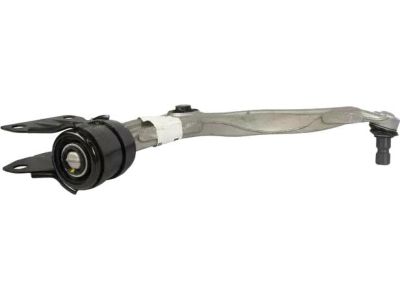

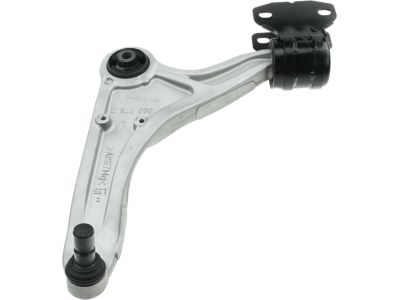

Ford Fusion Arm Assembly - Front Suspension

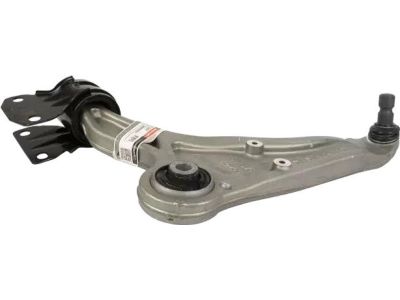

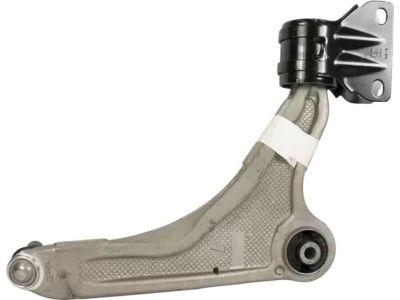

Part Number: GS7Z-3079-A
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Position: Driver Side
- Replaced by: GS7Z-3079-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2017 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) , 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Arm Assembly - Front Suspension
Part Number: FG9Z-3079-C
$184.21 MSRP: $307.27
You Save: $123.06 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assy - Front Suspension
- Position: Driver Side
- Replaced by: GS7Z-3079-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive

| Page 1 of 4 |Next >

1-20 of 65 Results

Ford Fusion Control Arm

Ford Fusion Control Arm is among the critical structural units that connect automobile frame to the wheels and enables the suspension system to move in harmony with the road surface. This component provides for the up-and-down movement of the wheel while at the same time ensuring that it does move independently of the other wheels. The Ford Fusion models employ different kinds of Control Arms such as the conventional stamped steel alongside the much improved cast iron or even the aluminum types which provide better strength together with less weight. Throughout the years, the Ford Fusion has had updates to its Control Arm inventory, especially those designed for those who want to have sports utility car features applied on a daily driver with added powertrain capacity for high-stress usage situations. These performance Control Arms are usually made of sturdy material such as DOM tubular steel or billet aluminum with increased effectiveness bushing. In outline, there is no denying that the control arm plays a vital role in maintaining optimal handling and adequate tire wear of the Ford Fusion automotive vehicle regardless of whether it is being used under standard or high-performance environment/condition.

We provide a wide range of Ford Fusion Control Arm at the best prices possible. If you need Ford Fusion Control Arm, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Fusion Control Arm Parts Questions & Experts Answers

Arm Assembly - Front Suspension
5M8Z-3078-S
Q: How to remove and install the Control Arm on Ford Fusion?
A: A suspension bolt should be replaced with new fasteners during assembly. For 2012 and earlier models, begin by loosening the wheel lug nuts on the side to be dismantled, raising the front of the vehicle, supporting it securely on jackstands, and removing the wheel. Disconnect the steering shaft from the steering gear, ensuring the steering wheel does not turn to avoid damaging the airbag clockspring. Disconnect the tie-rod ends from the Steering Knuckles, then remove the steering gear mounting bolts. Detach the exhaust pipe(s) from the exhaust manifold(s) and, if working on an All-Wheel Drive model, detach the driveshaft from the transfer case. Support the rear of the subframe with a floor jack, loosen the front subframe mounting fasteners, remove the rear subframe fasteners, and lower the rear of the subframe with the jack. For either lower arm, loosen the lower arm-to-balljoint nut, position a block of wood under the outer CV joint of the driveaxle to prevent damage, and use a balljoint removal tool to separate the balljoint. If removing the front lower arm, remove the damper fork mounting bolt at the front lower control arm, then remove the arm-to-subframe mounting bolt and the lower control arm. The upper control arm is attached to the top of the steering knuckle with a balljoint and to two positions on the chassis with pivot bolts. Unbolt the wheel speed sensor and the three upper strut-to-body nuts, disconnect the balljoint at the top of the steering knuckle, then remove the inner arm mounting bolts and the upper arm. For 2013 and later models, repeat the initial steps of loosening the wheel lug nuts, raising the vehicle, and removing the wheel, then remove the engine lower splash shields. Remove the nut and pinch bolt, separate the balljoint from the steering knuckle, and remove the control arm front pivot bolt and spacer, followed by the two rear bushing bracket bolts to remove the control arm. Inspect the control arm for distortion and the bushings for wear, replacing parts as necessary, and do not attempt to straighten a bent control arm. Installation is the reverse of removal, ensuring all fasteners are tightened to the specified torque values. Before tightening the control arm fasteners, raise the outer end of the control arm with a floor jack to simulate normal ride height. For upper control arms from 2012 and earlier, install the pivot bolts loosely, then use a 0.25-inch drill bit through the two holes in the chassis just below the bushing to set the proper height for tightening the pivot bolts. Finally, install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts to the specified torque, and it is advisable to have the front wheel alignment checked and adjusted if necessary after completing the job.
