How to remove and install wiper motors,windshield washer reservoir and washer pump on Ford Fusion?

In order to remove the wiper motor if 2012 and earlier models, one has to take off the wiper arm nuts and place a mark on the wiper arm shaft then removes the both wiper arms. Next, remove the hand that is black and plastic on the cowl and then you unplug the electrical connection of the wiper motor. The wiper motor and link assembly require the use of a trim removal tool or a flat head screwdriver to have the two mounting bolts removed from the link to crank arm joint, thus separating the linkage. Lose the bolt connecting the crank arm and the motor shaft, place a scratchmark on the crank arm, in relation to the motor shaft, and finally, you set the crank arm aside. Take out the two motor mounting bolts and pull the motor out from its mounting bracket, how to install is as follows but in reverse. For the models manufactured since 2013, the vehicles have L & R wiper motors, and the procedure starts with the removal of the wiper arms and the cowl panel trim, the separation of the electrical connection of the wiper motor, and the removal of the bolts that hold the motor to the vehicle, and then the extraction of the wiper motor from the vehicle; while the installation process is done in reverse with the tightening of the As for the WSR and WP, the right-front wheel lug nuts should be loosened and the front of the vehicle should be raised on jackstands; the wheel should then be removed, as well as the inner fender splash shield. In order to open it, if required remove the bolts has been holding the outer edge of the bumper to the fender and remove the under vehicle close out covers. Locate the washer pump wires or hoses and relax the connectors from the pump to the wires and set a drain pan underneath the reservoir to catch the washer fluid. Disconnect the hoses connected to the washer pump, keep a mark of which ones go where so they can be reattached. The washer pump is situated such that the reservoir does not have to be detached if only the pump is to be replaced; if only the pump is to be replaced, proceed as follows: Remove the bolts that holds the washer reservoir to the vehicle and pull the washer reservoir from the bottom. For the washer pump, unplug the grommet and pull out the pump and to replace the washer pump one must fix a new grommet. Removal and installation share similarity with a general definition that installation is the removal in a reverse manner.

Genuine Ford Fusion Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Wiper Motors found

View related parts
Ford Fusion Motor Assembly - Wiper
Part Number: DS7Z-17508-A
$172.14 MSRP: $274.55
You Save: $102.41 (38%)
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper
- Position: Driver Side
- Replaced by: DS7Z-17508-AK
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) , 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Motor Assembly - Wiper
Part Number: DP5Z-17508-B
$113.66 MSRP: $181.27
You Save: $67.61 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper; Wiper Motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020 Ford Fusion | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS
View related parts
Ford Fusion Motor Assembly - Wiper
Part Number: DS7Z-17508-M
$166.10 MSRP: $274.55
You Save: $108.45 (40%)
ADD TO CART
Product Specifications
- Other Name: MOTOR ASY - WIPER; Wiper Motor
- Position: Driver Side
- Replaced by: DS7Z-17508-AK
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) , 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

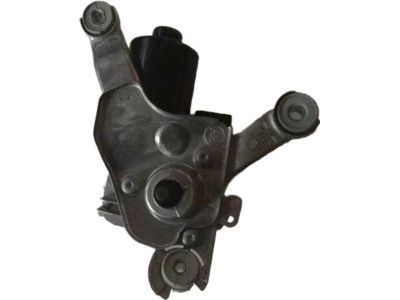

Ford Fusion Motor Assembly - Wiper
Part Number: DS7Z-17508-N
$161.70 MSRP: $267.27
You Save: $105.57 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MOTOR ASY - WIPER; Wiper Motor
- Position: Passenger Side
- Replaced by: DS7Z-17508-BK
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) , 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Motor Assembly - Wiper
Part Number: DS7Z-17508-D
$167.58 MSRP: $267.27
You Save: $99.69 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper
- Position: Passenger Side
- Replaced by: DS7Z-17508-BK
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2019 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (200PS), 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) , 6 Cyl 2.7L | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Motor Assembly - Wiper
Part Number: DS7Z-17508-B
$167.58 MSRP: $267.27
You Save: $99.69 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper
- Position: Passenger Side
- Replaced by: DS7Z-17508-BK
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Fusion | 4 Cyl 1.5L GTDI, 4 Cyl 1.6L PI TC ETHNL, 4 Cyl 2.0L Duratec Hybrid (130kW) , 4 Cyl 2.0L EcoBoost (240PS) , 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Fusion Motor Assembly - Wiper
Part Number: 6E5Z-17508-AA
Product Specifications
- Other Name: Motor Assy - Wiper; Wiper Motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2012 Ford Fusion | 4 Cyl 2.3L, 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric, 6 Cyl 3.0L DOHC EFI, 6 Cyl 3.0L OHC Duratec, 6 Cyl 3.5L DOHC VCT SMPI | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive

Ford Fusion Wiper Motor

The Wiper Motor in car models particularly Ford Fusion helps in controlling the windshield wipers with a purpose of wiping the screen rain, snow and all sorts of dirt for better vision. This electric motor maintains the wiper impulses at different speeds, so that drivers can drive in a manner that responds to weather conditions prevailing at specific instances. Ford Fusion Wiper Motors come with new and refurbished types. New Wiper Motors are those that are bought from the production line while remanufactured Wiper Motors are those that have been used but are brought back to standard by replacing their faulty parts. This range guarantees that owners of Ford Fusion can get the right option on their Wiper Motor maintenance requirements as well as the efficiency of this part.

We provide a wide range of Ford Fusion Wiper Motor at the best prices possible. If you need Ford Fusion Wiper Motor, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Fusion Wiper Motor Parts Questions & Experts Answers

Motor Assembly - Wiper
DS7Z-17508-A
Q: How to remove and install wiper motors,windshield washer reservoir and washer pump on Ford Fusion?
A: In order to remove the wiper motor if 2012 and earlier models, one has to take off the wiper arm nuts and place a mark on the wiper arm shaft then removes the both wiper arms. Next, remove the hand that is black and plastic on the cowl and then you unplug the electrical connection of the wiper motor. The wiper motor and link assembly require the use of a trim removal tool or a flat head screwdriver to have the two mounting bolts removed from the link to crank arm joint, thus separating the linkage. Lose the bolt connecting the crank arm and the motor shaft, place a scratchmark on the crank arm, in relation to the motor shaft, and finally, you set the crank arm aside. Take out the two motor mounting bolts and pull the motor out from its mounting bracket, how to install is as follows but in reverse. For the models manufactured since 2013, the vehicles have L & R wiper motors, and the procedure starts with the removal of the wiper arms and the cowl panel trim, the separation of the electrical connection of the wiper motor, and the removal of the bolts that hold the motor to the vehicle, and then the extraction of the wiper motor from the vehicle; while the installation process is done in reverse with the tightening of the As for the WSR and WP, the right-front wheel lug nuts should be loosened and the front of the vehicle should be raised on jackstands; the wheel should then be removed, as well as the inner fender splash shield. In order to open it, if required remove the bolts has been holding the outer edge of the bumper to the fender and remove the under vehicle close out covers. Locate the washer pump wires or hoses and relax the connectors from the pump to the wires and set a drain pan underneath the reservoir to catch the washer fluid. Disconnect the hoses connected to the washer pump, keep a mark of which ones go where so they can be reattached. The washer pump is situated such that the reservoir does not have to be detached if only the pump is to be replaced; if only the pump is to be replaced, proceed as follows: Remove the bolts that holds the washer reservoir to the vehicle and pull the washer reservoir from the bottom. For the washer pump, unplug the grommet and pull out the pump and to replace the washer pump one must fix a new grommet. Removal and installation share similarity with a general definition that installation is the removal in a reverse manner.
