How to remove and install an air conditioning compressor on Lincoln Navigator?

On some models, special spring-lock coupling tools are required to release the connectors used on the refrigerant lines throughout the air conditioning system. There are different special tools for each line size; these tools can usually be found at local auto parts stores, often in a set. REMOVAL: Take the vehicle to a dealer service department or automotive air conditioning shop and have the air conditioning system discharged. Disconnect the cable from the negative battery terminal. Remove the accessory drivebelt(s). If you're working on an Expedition or Navigator model, raise the vehicle and support it securely on jackstands. On air-suspension-equipped vehicles, turn the switch OFF before jacking the vehicle up. Remove the plastic air deflector beneath the radiator (Expedition and Navigator models only). Remove the bolt and disconnect the refrigerant lines from the compressor. Disconnect the electrical connection at the compressor clutch. Remove the compressor mounting bolts. Remove the compressor from the mounting location. Drain and measure the refrigerant oil from the compressor. INSTALLATION: If the compressor is being replaced, drain any shipping oil that may be in the new compressor. If the amount of refrigerant oil drained from the old compressor was 3 to 5 ounces, add new oil in that amount plus an extra ounce to the new compressor. If the amount drained was more than 5 ounces, add that amount of new oil, and if the drained amount was less than three ounces, add three ounces of new oil to the new compressor. Installation procedures are the reverse of those for removal. When installing the fitting block, use new O-rings and lubricate them with clean refrigerant oil. Replace the orifice tube. The orifice is a plastic tube with a filter inside. On some models it is located in the high pressure line from the condenser. On other models it's located in the evaporator inlet line. Recessed inside the refrigerant pipe slightly, it is difficult to remove without a small tool that is inserted and expanded until it grabs the orifice tube so that it can be pulled out. The same tool, available at auto parts stores, can be used to insert a new orifice tube. Make sure the tube is inserted in the same direction as the old one. After the compressor is installed, have the system evacuated, recharged and leak tested by a dealer service department or an air conditioning repair facility.

Genuine Lincoln Navigator A/C Compressor

Air Conditioning Compressor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 A/C Compressors found

View related parts

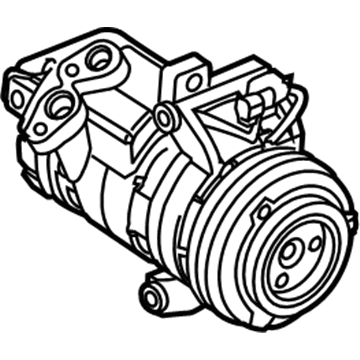

Lincoln Navigator Compressor Assembly
Part Number: AL1Z-19703-B
$369.51 MSRP: $616.36
You Save: $246.85 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy; Compressor
- Replaces: YCC-275, AL1Z-19703-A, YCC-254
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2014 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

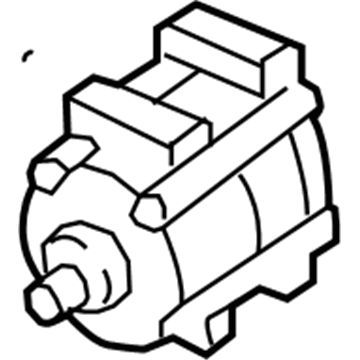

Lincoln Navigator Compressor Assembly
Part Number: 8C3Z-19703-A
$335.72 MSRP: $560.00
You Save: $224.28 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy
- Manufacturer Note: New
- Replaced by: 9C3Z-19703-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2008 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Compressor Assembly
Part Number: FL1Z-19703-A
$446.90 MSRP: $745.45
You Save: $298.55 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy
- Replaced by: FL1Z-19703-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2016 Lincoln Navigator | 6 Cyl 3.5L GTDI, 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Compressor Assembly
Part Number: 9L1Z-19703-B
$455.72 MSRP: $627.84
You Save: $172.12 (28%)
ADD TO CART
Product Specifications
- Other Name: Compressor Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2010 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Compressor Assembly
Part Number: 9L1Z-19703-A
$335.72 MSRP: $560.00
You Save: $224.28 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy; Compressor
- Replaced by: 9C3Z-19703-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2014 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Compressor Assembly
Part Number: FL1Z-19703-B
$446.90 MSRP: $745.45
You Save: $298.55 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy; Compressor
- Replaces: FL1Z-19703-A, YCC-370
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2017 Lincoln Navigator | 6 Cyl 3.5L GTDI, 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Compressor Assembly
Part Number: AL1Z-19703-A
$369.51 MSRP: $616.36
You Save: $246.85 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor Assy
- Replaced by: AL1Z-19703-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2013 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator COMPRESSOR ASY
Part Number: KL1Z-19703-A
$741.44 MSRP: $1203.64
You Save: $462.20 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor, Compressor Assembly
- Replaces: JL1Z-19703-AB, YCC-453
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2021 Lincoln Navigator | 6 Cyl 3.5 L GAS
View related parts
Lincoln Navigator COMPRESSOR ASY
Part Number: NL1Z-19703-C
$648.52 MSRP: $1050.91
You Save: $402.39 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Compressor, Compressor Assembly
- Replaces: NL1Z-19703-B, NL1Z-19703-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2022-2024 Lincoln Navigator | 6 Cyl 3.5 L GAS
View related parts
Lincoln Navigator Compressor Assembly
Part Number: 2L1Z-19V703-CA
Product Specifications
- Other Name: Compressor Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2006 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Compressor Assembly
Part Number: 1L2Z-19703-DA
Product Specifications
- Other Name: Compressor Assy
- Replaced by: 5W1Z-19V703-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2006 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

Lincoln Navigator A/C Compressor Parts Questions & Experts Answers

Compressor Assembly
8C3Z-19703-A
Q: How to remove and install an air conditioning compressor on Lincoln Navigator?
A: On some models, special spring-lock coupling tools are required to release the connectors used on the refrigerant lines throughout the air conditioning system. There are different special tools for each line size; these tools can usually be found at local auto parts stores, often in a set. REMOVAL: Take the vehicle to a dealer service department or automotive air conditioning shop and have the air conditioning system discharged. Disconnect the cable from the negative battery terminal. Remove the accessory drivebelt(s). If you're working on an Expedition or Navigator model, raise the vehicle and support it securely on jackstands. On air-suspension-equipped vehicles, turn the switch OFF before jacking the vehicle up. Remove the plastic air deflector beneath the radiator (Expedition and Navigator models only). Remove the bolt and disconnect the refrigerant lines from the compressor. Disconnect the electrical connection at the compressor clutch. Remove the compressor mounting bolts. Remove the compressor from the mounting location. Drain and measure the refrigerant oil from the compressor. INSTALLATION: If the compressor is being replaced, drain any shipping oil that may be in the new compressor. If the amount of refrigerant oil drained from the old compressor was 3 to 5 ounces, add new oil in that amount plus an extra ounce to the new compressor. If the amount drained was more than 5 ounces, add that amount of new oil, and if the drained amount was less than three ounces, add three ounces of new oil to the new compressor. Installation procedures are the reverse of those for removal. When installing the fitting block, use new O-rings and lubricate them with clean refrigerant oil. Replace the orifice tube. The orifice is a plastic tube with a filter inside. On some models it is located in the high pressure line from the condenser. On other models it's located in the evaporator inlet line. Recessed inside the refrigerant pipe slightly, it is difficult to remove without a small tool that is inserted and expanded until it grabs the orifice tube so that it can be pulled out. The same tool, available at auto parts stores, can be used to insert a new orifice tube. Make sure the tube is inserted in the same direction as the old one. After the compressor is installed, have the system evacuated, recharged and leak tested by a dealer service department or an air conditioning repair facility.
