How to remove and install the crankshaft pulley on Lincoln Navigator?

To undo the cooling fan and the cooling shroud, first you need to disconnect the drive belt for the accessories, and for 2006 and the later models of the Expedition/Navigator, you also remove the drive belt splash shield. Next, remove the flywheel inspection cover and, with help, jam a large screwdriver into the teeth of the starter ring gear so the crankshaft can't turn. Nut the big central bolt of the crankshaft pulley counterclockwise by using a breaker bar combined with a socket where the crankshaft is held by another person. Remove the crankshaft pulley with a proper puller that screws onto the crankshaft pulley flange; the Woodruff key must remain in the crankshaft keyway during removal. General precaution to be taken should be to ensure that the puller that is used does not cling on the outer flank of the crankshaft pulley. In fitting, apply moly-base grease or clean engine oil on the contact areas of oil seal and at the hub of the crankshaft pulley, before which a small quantity of RTV sealant should be applied at front portion of the key of crankshaft pulley. Put on the crankshaft pulley so that the keyway fits into the Woodruff key, and in case the bolt head is small and could not reach the keyway, use a large washer and bolt to pull the pulley up and tighten the bolt 1/4 turn past the correct torque. The remaining steps, are logically converses of the order of removal. Last of all, check the level of the new oil, switch on the engine for some time and check for any sign of leakage.

Genuine Lincoln Navigator Crankshaft Pulley

Crankshaft Pulley Engine Harmonic Balancer

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Crankshaft Pulleys found

View related parts

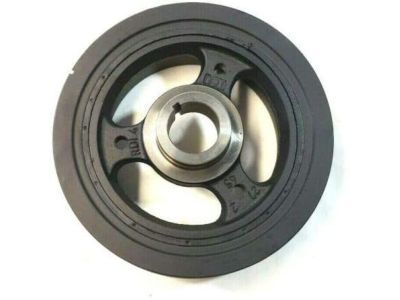

Lincoln Navigator Crankshaft Pulley
Part Number: 7L3Z-6312-B
$107.50 MSRP: $157.17
You Save: $49.67 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pulley - Crankshaft
- Replaced by: 7L3Z-6312-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2014 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Crankshaft Pulley
Part Number: 2L7Z-6312-A
$107.50 MSRP: $157.17
You Save: $49.67 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pulley - Crankshaft
- Replaced by: 7L3Z-6312-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2008 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Crankshaft Pulley
Part Number: 2L7Z-6312-AA
$107.50 MSRP: $157.17
You Save: $49.67 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pulley - Crankshaft
- Manufacturer Note: 4V
- Replaced by: 7L3Z-6312-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2006 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Crankshaft Pulley
Part Number: HL3Z-6312-A
$75.49 MSRP: $137.50
You Save: $62.01 (46%)
Ships in 1-2 Business Days

Out of Stock
Product Specifications
- Other Name: Pulley - Crankshaft; Pulley, Vibration Damper
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2021 Lincoln Navigator | 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Crankshaft Pulley
Part Number: BR3Z-6312-D
$136.80 MSRP: $200.00
You Save: $63.20 (32%)
ADD TO CART
Product Specifications
- Other Name: Pulley - Crankshaft; Pulley, Vibration Damper
- Replaces: BR3Z-6312-C, BR3Z-6312-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2017 Lincoln Navigator | 6 Cyl 3.5L GTDI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator PULLEY - CRANKSHAFT
Part Number: ML3Z-6312-B
$111.61 MSRP: $163.17
You Save: $51.56 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Crankshaft Pulley, Pulley
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2022-2024 Lincoln Navigator | 6 Cyl 3.5 L GAS
View related parts

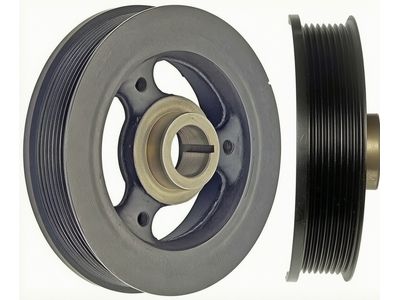

Lincoln Navigator Damper Assembly
Part Number: XL1Z-6312-DA
Product Specifications
- Other Name: Damper Assy; Crankshaft Pulley, Pulley
- Manufacturer Note: 4v. For 8 rib belt
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100
View related parts
Lincoln Navigator Damper Assembly
Part Number: XL3Z-6312-CA
$0.00
Product Specifications
- Other Name: Damper Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-1999 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100, 4AT E4OD

Lincoln Navigator Crankshaft Pulley

In the context of Lincoln Navigator road vehicles, the Performance Crankshaft Pulley plays a very important role through which the power of the engine is transferred to other significant apparatuses like the power steering pump, the A/C compressor together with the alternator. It directly captures torque from the crankshaft of the engine of the vehicle and thus improving efficiency and performance of a car through the function that it offers as the Performance Crankshaft Pulley. Besides, it works as a torque converter that helps reduce vibrations thus enhancing the operation of the engine. Different types of Performance Crankshaft Pulley have been used in Lincoln Navigator years through the car manufacturing years and each models to give the premier performance that years through the car manufacturing years and each models to give the premier performance that compete with the premier in the current market. These types could differ in material or structure and thus could differ in the degree of weight that they can bear and their ability to counter vibrations.

We provide a wide range of Lincoln Navigator Crankshaft Pulley at the best prices possible. If you need Lincoln Navigator Crankshaft Pulley, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Lincoln Navigator Crankshaft Pulley Parts Questions & Experts Answers

Crankshaft Pulley
2L7Z-6312-AA
Q: How to remove and install the crankshaft pulley on Lincoln Navigator?
A: To undo the cooling fan and the cooling shroud, first you need to disconnect the drive belt for the accessories, and for 2006 and the later models of the Expedition/Navigator, you also remove the drive belt splash shield. Next, remove the flywheel inspection cover and, with help, jam a large screwdriver into the teeth of the starter ring gear so the crankshaft can't turn. Nut the big central bolt of the crankshaft pulley counterclockwise by using a breaker bar combined with a socket where the crankshaft is held by another person. Remove the crankshaft pulley with a proper puller that screws onto the crankshaft pulley flange; the Woodruff key must remain in the crankshaft keyway during removal. General precaution to be taken should be to ensure that the puller that is used does not cling on the outer flank of the crankshaft pulley. In fitting, apply moly-base grease or clean engine oil on the contact areas of oil seal and at the hub of the crankshaft pulley, before which a small quantity of RTV sealant should be applied at front portion of the key of crankshaft pulley. Put on the crankshaft pulley so that the keyway fits into the Woodruff key, and in case the bolt head is small and could not reach the keyway, use a large washer and bolt to pull the pulley up and tighten the bolt 1/4 turn past the correct torque. The remaining steps, are logically converses of the order of removal. Last of all, check the level of the new oil, switch on the engine for some time and check for any sign of leakage.
