How do I remove and replace a power steering pump on Lincoln Navigator?

Remove the fan and shroud and the serpentine drivebelt. If you're planning to replace the pump with a new or rebuilt unit, remove the pulley now with a pulley removal tool. Power steering pump pulley puller/installer tools are available at most auto parts stores. Remove the three power steering reservoir bolts and set the reservoir aside. Position a drain pan under the power steering pump reservoir hoses. Disconnect the power steering reservoir-to-pump hose and drain the power steering system. Plug the hose to prevent contaminants from entering. Remove the two belt deflector nuts and remove the belt deflector, if equipped. Remove the two upper pump retaining bolts. A third bolt underneath is easier to reach from underneath the vehicle. If the vehicle is equipped with air suspension, turn off the air suspension system. The switch is located in the area of the right kick panel. Raise the front of the vehicle and support it securely on jackstands. Apply the parking brake. Remove the skid plate bolts and skid plate, if equipped. Unplug the electrical connector from the electronic variable orifice (EVO) power steering control valve actuator. Remove the third power steering pump bolt from the underside of the pump. Lower the vehicle. Remove the power steering pump. Disconnect the reservoir-to-pump hose and the fluid pressure line from the pump. If you removed the power steering pump pulley, inspect the spokes on the pulley for paint marks. If there are already two paint marks, replace the pulley; the two marks indicate that this pulley has already been removed and installed two times and must, therefore, be replaced. If there is one paint mark, or there are no paint marks, the pulley can be installed again. Be sure to put a paint mark on a spoke, near the hub, to indicate that the pulley has been removed and installed. Do NOT install a pulley that has already been removed and installed two times. Installation is the reverse of removal. Be sure to tighten the three pump mounting bolts. Where the power steering pressure line attaches to the pump, install a new Teflon® seal. If you removed the power steering pump pulley, install the pulley before installing the serpentine belt. Fill the power steering reservoir with the recommended fluid and bleed the system following the procedure described in the next. Reactivate the air suspension system, if equipped.

Genuine Lincoln Navigator Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Power Steering Pumps found

View related parts
Lincoln Navigator Pump Assembly - Power Steering
Part Number: BL1Z-3A696-A
$410.76 MSRP: $827.27
You Save: $416.51 (51%)
ADD TO CART
Product Specifications
- Other Name: Power Steering Pump
- Manufacturer Note: With Pulley
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2017 Lincoln Navigator | 6 Cyl 3.5L GTDI, 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Pump Assy - Power Steering
Part Number: 7L1Z-3A674-BRM
$98.09 MSRP: $240.00
You Save: $141.91 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering Pump
- Replaces: 7L1Z-3A674-B, STP-218, 7L1Z-3A674-A, STP-181
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2009 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Pump Assy - Power Steering
Part Number: 7L3Z-3A674-C
$136.77 MSRP: $223.64
You Save: $86.87 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 7L3Z-3A674-BRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Pump Assy - Power Steering
Part Number: 7L1Z-3A674-B
$98.09 MSRP: $240.00
You Save: $141.91 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 7L1Z-3A674-BRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2009 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Pump Assy - Power Steering
Part Number: 6L3Z-3A674-C
$136.77 MSRP: $223.64
You Save: $86.87 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 7L3Z-3A674-BRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2006 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

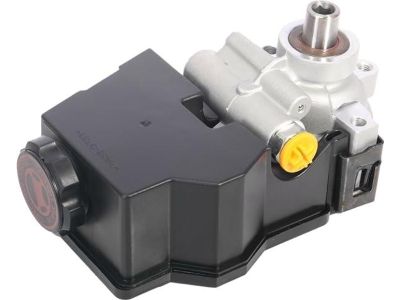

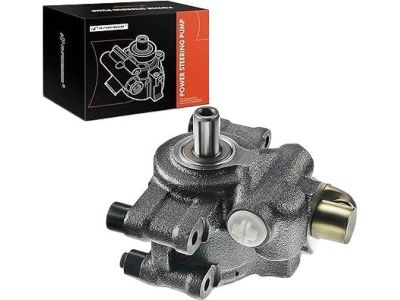

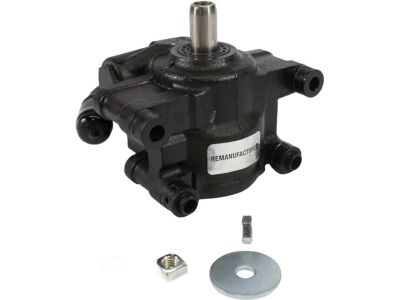

Lincoln Navigator Pump Assy - Power Steering
Part Number: 7L1Z-3A674-A
$98.09 MSRP: $240.00
You Save: $141.91 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 7L1Z-3A674-BRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Pump Assy - Power Steering
Part Number: 9L3Z-3A674-CRM
$163.35 MSRP: $258.18
You Save: $94.83 (37%)
Product Specifications
- Other Name: Power Steering Pump
- Replaces: 9L3Z-3A674-C, STP-247
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Pump Assy - Power Steering
Part Number: 9L3Z-3A674-C
Product Specifications
- Replaced by: 9L3Z-3A674-CRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

Lincoln Navigator Power Steering Pump

The specifically in the Lincoln Navigator, Power Steering Pump is a critical component the transforms the engine energy into hydraulic power helping the driver with the steering. With this power delivered to the steering mechanism, the pump lightens the amount of force required to twist the wheels and hence the maneuvering of the vehicle. A Lincoln Navigator Power Steering Pumps can either employ a hydraulic or electrical actuator to increase the input force and fashion the energy provided to the system. Whereas hydraulic systems do retain a direct linkage between the steering wheel and the wheels; electrical systems use motors to help the steering gear. There are construction vehicles that have their steering system operated using electrical power and not mechanical power; often referred to as 'steer by wire'. In general, the function of the Power Steering Pump for Lincoln Navigator is to decrease the amount of force applied by the driver and increase the steering capacity.

We provide a wide range of Lincoln Navigator Power Steering Pump at the best prices possible. If you need Lincoln Navigator Power Steering Pump, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Lincoln Navigator Power Steering Pump Parts Questions & Experts Answers

Pump Assy - Power Steering
7L1Z-3A674-B
Q: How do I remove and replace a power steering pump on Lincoln Navigator?
A: Remove the fan and shroud and the serpentine drivebelt. If you're planning to replace the pump with a new or rebuilt unit, remove the pulley now with a pulley removal tool. Power steering pump pulley puller/installer tools are available at most auto parts stores. Remove the three power steering reservoir bolts and set the reservoir aside. Position a drain pan under the power steering pump reservoir hoses. Disconnect the power steering reservoir-to-pump hose and drain the power steering system. Plug the hose to prevent contaminants from entering. Remove the two belt deflector nuts and remove the belt deflector, if equipped. Remove the two upper pump retaining bolts. A third bolt underneath is easier to reach from underneath the vehicle. If the vehicle is equipped with air suspension, turn off the air suspension system. The switch is located in the area of the right kick panel. Raise the front of the vehicle and support it securely on jackstands. Apply the parking brake. Remove the skid plate bolts and skid plate, if equipped. Unplug the electrical connector from the electronic variable orifice (EVO) power steering control valve actuator. Remove the third power steering pump bolt from the underside of the pump. Lower the vehicle. Remove the power steering pump. Disconnect the reservoir-to-pump hose and the fluid pressure line from the pump. If you removed the power steering pump pulley, inspect the spokes on the pulley for paint marks. If there are already two paint marks, replace the pulley; the two marks indicate that this pulley has already been removed and installed two times and must, therefore, be replaced. If there is one paint mark, or there are no paint marks, the pulley can be installed again. Be sure to put a paint mark on a spoke, near the hub, to indicate that the pulley has been removed and installed. Do NOT install a pulley that has already been removed and installed two times. Installation is the reverse of removal. Be sure to tighten the three pump mounting bolts. Where the power steering pressure line attaches to the pump, install a new Teflon® seal. If you removed the power steering pump pulley, install the pulley before installing the serpentine belt. Fill the power steering reservoir with the recommended fluid and bleed the system following the procedure described in the next. Reactivate the air suspension system, if equipped.
