How to check the wiper motor circuit on Lincoln Navigator?

When diagnosing the problem in the wiper motor circuit location of wires follow the wire color in the diagrams, power wires are larger and brighter than the ground wires. For voltage check usage of a grounded 12-volt test light on each terminal of a connector until brightly lit. If the wipers operating slow, check the battery state of charge and replacement date; if all is well recharge the battery to full; if the wipers are slow and the battery is good remove the wiper motor and give a manual push to the wiper arms to check for binding in the linkage and the pivot joints and apply some grease on the linkages and pivot joints before refitting the motor. In case the wipers continue to run slow, check for.dirty or corroded connections especially the ground; if they look okay then replace the motor. If non-operative wipers are encountered first look at the fuse, if the fuse is good attach a jumper wire from the wiper motor to the ground then test the wipers. If the motor runs continue to check and correct the ground and if the motor does not run check for voltage at the motor at the wiper switch at HI setting. If voltage is present, and the motor is bad, replace and remove it from the vehicle using jumper wires fused from the battery, inspect for the binding linkage, if good. If it still doesn't work, replace it-it may sound banal, but it is a recommendation that might save you from numerous troubles. If there is no voltage at the motor check to see if there is voltage at the wiper control module if there is test the switch for continuity if the switch is good the wiper control module may need to be replaced. For inoperative interval function check the wiring between the switch and wiper control module, if the wiring is fine then test the resistance of the knob with the delay control; if the knob resistance is within the range then replace the wiper control module. If the wipers have stopped at their last position when the switch is off then control voltage should be checked at the park feed wire of wiper motor connector when switch is off and the ignition is on and if there is no voltage then check for open circuit between motor and the fuse panel. If the wipers do not stop unless the ignition is turned OFF, remove the wiring from the wiper control switch; if the wipers stop, replace the wiper switch but in case they continue running, the limit switch of the motor is shot and the motor will have to be changed. If the wipers do not drop below the hood line, look for mechanical interference by the linkage and or the vehicle body if none, look at the wiring diagram and if the wiring is sound replace the wiper motor. For wiper motor replacement, remove the windshield wiper arms, pry of cover, straight nut and pull the arm assembly straight up. Subsequent to this, provided below is the process that needs to be followed: First of all, the cowl cover has to be removed fully, next, the electrical connector of the wiper motor has to be disconnected fully, and finally, the mounting bracket retaining bolts have to be detached fully. Swivel up the mounting bracket to uncover the motor retaining bolts; undo the nut that attends the linkage of the wiper arm to the motor, then withdraw the motor from its mounting bracket in the reverse manner of installation.

Genuine Lincoln Navigator Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

22 Wiper Motors found

View related parts

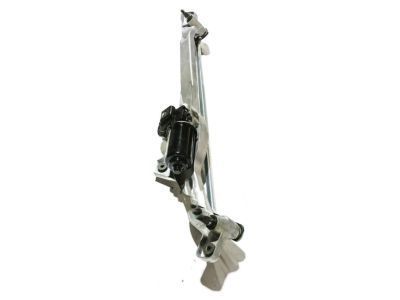

Lincoln Navigator Motor Assembly - Wiper
Part Number: 9L1Z-17500-A
$381.50 MSRP: $636.36
You Save: $254.86 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper; Front Transmission, Motor & Linkage
- Manufacturer Note: Windshield Wiper, Includes Motor And Linkage
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2014 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

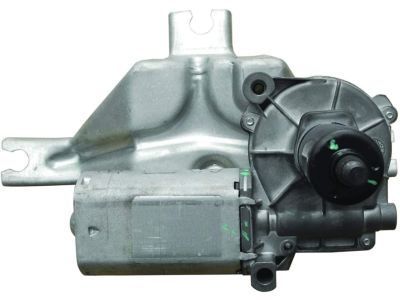

Lincoln Navigator Motor Assembly - Wiper
Part Number: FL1Z-17508-A
$126.50 MSRP: $209.09
You Save: $82.59 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper; Rear Motor, Wiper Motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2017 Lincoln Navigator | 6 Cyl 3.5L GTDI, 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

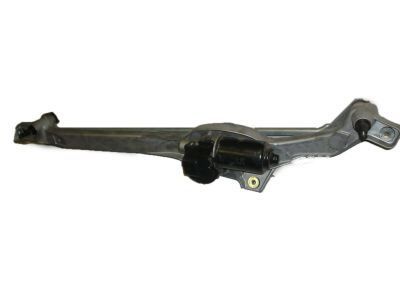

Lincoln Navigator Motor Assembly - Wiper
Part Number: FL1Z-17508-B
$105.23 MSRP: $209.09
You Save: $103.86 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper; Front Motor, Wiper Motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2017 Lincoln Navigator | 6 Cyl 3.5L GTDI, 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: JL1Z-17508-C
$264.42 MSRP: $425.45
You Save: $161.03 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MOTOR ASY - WIPER; Rear Motor, Wiper Motor
- Manufacturer Note: Includes Motor
- Replaced by: JL1Z-17508-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2019 Lincoln Navigator | 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: 6L3Z-17508-AB
$53.61 MSRP: $73.25
You Save: $19.64 (27%)
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper
- Replaced by: 6U2Z-17V508-SARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: F6DZ-17508-AA
$53.61 MSRP: $73.25
You Save: $19.64 (27%)
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper
- Replaced by: 6U2Z-17V508-SARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-1999 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100, 4AT E4OD
View related parts
Lincoln Navigator MOTOR ASY - WIPER
Part Number: JL1Z-17508-E
$264.42 MSRP: $425.45
You Save: $161.03 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Motor, Wiper Motor
- Replaces: WM-876, JL1Z-17508-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2024 Lincoln Navigator | 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: JL1Z-17508-A
$127.68 MSRP: $203.64
You Save: $75.96 (38%)
ADD TO CART
Product Specifications
- Other Name: Motor Assy - Wiper; Front Motor, Wiper Motor
- Manufacturer Note: Includes Cover
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2024 Lincoln Navigator | 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: XL1Z-17508-AA
$66.46 MSRP: $106.00
You Save: $39.54 (38%)
Product Specifications
- Other Name: Motor Assy - Wiper; Rear Motor, Wiper Motor
- Manufacturer Note: Motor and bracket, Rear glass
- Replaces: F75Z-17508-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2002 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100, 4AT E4OD
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: 8L1Z-17508-A
$183.54 MSRP: $292.73
You Save: $109.19 (38%)
Product Specifications
- Other Name: Front Motor, Front Transmission, Motor & Linkage
- Manufacturer Note: Windshield Wiper, Includes Motor And Linkage
- Replaces: 6L1Z-17508-BA, 2L1Z-17508-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2008 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: F65Z-17508-AB
Product Specifications
- Other Name: Motor Assy - Wiper
- Replaced by: YL3Z-17566-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-1999 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100, 4AT E4OD
View related parts
Lincoln Navigator Windscreen Wiper
Part Number: YL3Z-17508-AB
Product Specifications
- Other Name: Front Motor, Motor & Linkage, Wiper Motor
- Replaced by: YL3Z-17566-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2002 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100
View related parts
Lincoln Navigator Windscreen Wiper
Part Number: 2L1Z-17508-AB
Product Specifications
- Manufacturer Note: Windshield Wiper, Includes Motor And Linkage
- Replaced by: 8L1Z-17508-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

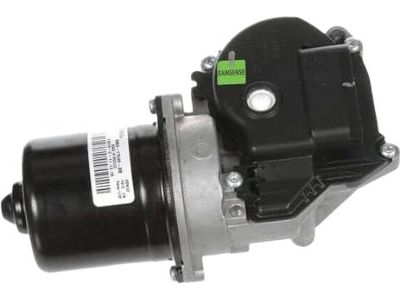

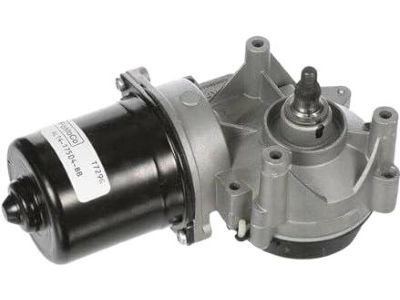

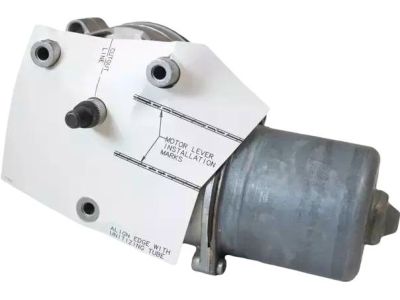

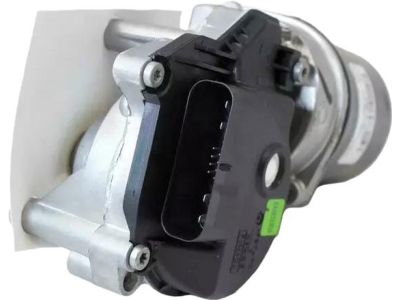

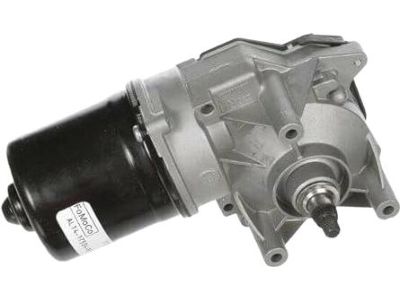

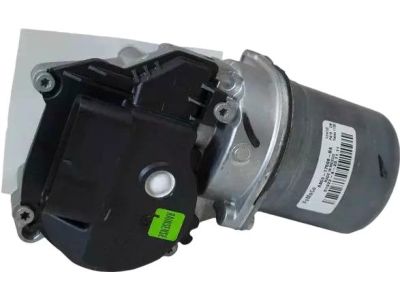

Lincoln Navigator Motor Assembly - Wiper
Part Number: 9L1Z-17508-A
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2014 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: 2L1Z-17508-AA
Product Specifications
- Other Name: Motor Assy - Wiper
- Replaced by: 6L1Z-17508-AARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: 2L1Z-17508-BA
Product Specifications
- Other Name: Motor Assy - Wiper
- Replaced by: 6L1Z-17508-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: 6L1Z-17508-AA
Product Specifications
- Other Name: Motor Assy - Wiper; Motor, Rear Motor, Wiper Motor
- Manufacturer Note: Service Kit
- Replaces: 2L1Z-17508-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2008 Lincoln Navigator | 8 Cyl 5.4L, 8 Cyl 5.4L DOHC EFI | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: 6L1Z-17508-AB
Product Specifications
- Other Name: Motor Assy - Wiper
- Replaced by: 6L1Z-17508-AARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: F75Z-17508-AA
Product Specifications
- Other Name: Motor Assy - Wiper
- Manufacturer Note: Motor and bracket, Rear glass
- Replaced by: XL1Z-17508-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998 Lincoln Navigator | 8 Cyl 5.4L | 4AT 4R100, 4AT E4OD
View related parts
Lincoln Navigator Motor Assembly - Wiper
Part Number: 6L1Z-17508-BA
Product Specifications
- Other Name: Motor Assy - Wiper
- Manufacturer Note: Windshield Wiper, Includes Motor And Linkage
- Replaced by: 8L1Z-17508-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2007 Lincoln Navigator | 8 Cyl 5.4L | 4-Speed Automatic Transmission E4OD(4R100), 6-Speed Automatic Transmission (6R80), 6-Speed Automatic Transmission ZF 6HP26 Steptronic, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

| Page 1 of 2 |Next >

1-20 of 22 Results

Lincoln Navigator Wiper Motor

The Wiper Motor in Lincoln Navigator vehicles plays a basic working, whereby it facilitates the movement of the windshield wiper, wiping the rain, snow or any debris that hinders visibility. This electric motor moves the wipers at different speeds and such that drivers can change them depending on the weather. Lincoln Navigator Wiper Motors are provided in either new or recycled types. New Motors have the direct acquisition from the manufacturer while refurbished wiper motors are second-hand motors that are upgraded from the previous stock. This kind of versatility adds to the fact that it is always easy to maintain or replace these types of wipers hence giving Lincoln Navigator owners the ability to have the optimal wiper that they require.

We provide a wide range of Lincoln Navigator Wiper Motor at the best prices possible. If you need Lincoln Navigator Wiper Motor, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Lincoln Navigator Wiper Motor Parts Questions & Experts Answers

Motor Assembly - Wiper
9L1Z-17500-A
Q: How to check the wiper motor circuit on Lincoln Navigator?
A: When diagnosing the problem in the wiper motor circuit location of wires follow the wire color in the diagrams, power wires are larger and brighter than the ground wires. For voltage check usage of a grounded 12-volt test light on each terminal of a connector until brightly lit. If the wipers operating slow, check the battery state of charge and replacement date; if all is well recharge the battery to full; if the wipers are slow and the battery is good remove the wiper motor and give a manual push to the wiper arms to check for binding in the linkage and the pivot joints and apply some grease on the linkages and pivot joints before refitting the motor. In case the wipers continue to run slow, check for.dirty or corroded connections especially the ground; if they look okay then replace the motor. If non-operative wipers are encountered first look at the Fuse, if the fuse is good attach a jumper wire from the wiper motor to the ground then test the wipers. If the motor runs continue to check and correct the ground and if the motor does not run check for voltage at the motor at the wiper switch at HI setting. If voltage is present, and the motor is bad, replace and remove it from the vehicle using jumper wires fused from the battery, inspect for the binding linkage, if good. If it still doesn't work, replace it-it may sound banal, but it is a recommendation that might save you from numerous troubles. If there is no voltage at the motor check to see if there is voltage at the wiper control module if there is test the switch for continuity if the switch is good the wiper control module may need to be replaced. For inoperative interval function check the wiring between the switch and wiper control module, if the wiring is fine then test the resistance of the knob with the delay control; if the knob resistance is within the range then replace the wiper control module. If the wipers have stopped at their last position when the switch is off then control voltage should be checked at the park feed wire of wiper motor connector when switch is off and the ignition is on and if there is no voltage then check for open circuit between motor and the fuse panel. If the wipers do not stop unless the ignition is turned OFF, remove the wiring from the wiper control switch; if the wipers stop, replace the wiper switch but in case they continue running, the limit switch of the motor is shot and the motor will have to be changed. If the wipers do not drop below the hood line, look for mechanical interference by the linkage and or the vehicle body if none, look at the wiring diagram and if the wiring is sound replace the wiper motor. For wiper motor replacement, remove the windshield wiper arms, pry of cover, straight nut and pull the arm assembly straight up. Subsequent to this, provided below is the process that needs to be followed: First of all, the cowl cover has to be removed fully, next, the electrical connector of the wiper motor has to be disconnected fully, and finally, the mounting bracket retaining bolts have to be detached fully. Swivel up the mounting bracket to uncover the motor retaining bolts; undo the nut that attends the linkage of the wiper arm to the motor, then withdraw the motor from its mounting bracket in the reverse manner of installation.
