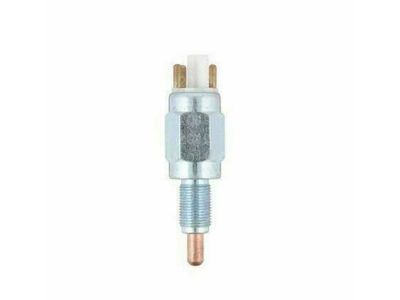

Genuine Mercury Bobcat Neutral Safety Switch

Mercury Bobcat Neutral Safety Switch Parts Questions & Experts Answers

• Switch Assy - Starter Inhibitor
  D6RY-7A247-B
  Q: How to adjust the neutral start switch on a Mercury Bobcat?

  A: To begin, chock the front wheels and jack up the rear of the car, supporting it on firmly based axle stands or positioning it over an inspection pit. Next, disconnect the downshift linkage rod from the transmission downshift lever. Apply some penetrating oil to the downshift lever shaft and nut, allowing it to soak for a few minutes. Then, remove the transmission downshift lever retaining nut and lift away the lever. Proceed by removing the two securing bolts of the neutral safety switch and disconnecting the multi-wire connector. Lift away the switch. To refit the switch, place it on the transmission unit and lightly secure it with the two bolts. Move the selector lever to the 'N' (neutral) position and rotate the switch. Insert a No. 43 drill into the gauge pin hole, ensuring it goes a full 0.48 in (12.30 mm) into the three holes of the switch. Fully tighten the switch securing bolts and remove the drill. Finally, refit the components in the reverse order of removal and verify that the engine only starts with the selector lever in the 'N' and 'P' positions.
• Switch Assy - Starter Inhibitor
  D6RY-7A247-B
  Q: What is the cause of a fault in the neutral start switch on the C3 transmission on Mercury Bobcat?

  A: The neutral safety switch on the C3 transmission is non-adjustable and any fault will be due to a malfunctioning switch, wear on the internal actuating cam or faulty wiring. If the switch is suspect, replace it with a new one. Always use a new 0-ring seal and tighten to the specified torque.
