Genuine Mercury Capri Cooling Fan Assembly

Mercury Capri Cooling Fan Assembly Parts Questions & Experts Answers

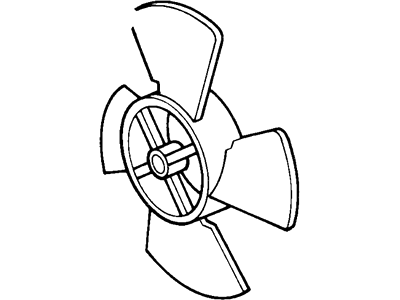

• Fan Assembly
  F3ZZ-8600-A
  Q: How do you remove and install the Cooling Fan and Fan Motor on Mercury Capri?

  A: The Electrodrive cooling fan system is installed on 1980 and later turbocharged 2.3L engines, as well as on 1982 and later non-turbocharged 2.3L engines. It utilizes an electrically-driven fan motor which is triggered by a Coolant Temperature Sensor. Turbocharged, carbureted vehicles also have a temperature sensor in the base of the carburetor which switches the fan on when carburetor temperature reaches 155-degrees F. On air conditioned vehicles, the fan operates whenever the A/C compressor is engaged, regardless of coolant temperature. The fan controller (1981 and later models, except Fuel Economy Leader) is located under the instrument panel near the steering column. To test the motor, unplug the electrical connector at the motor and connect one jumper wire from the motor positive terminal to the battery positive terminal, and the other jumper wire from the motor negative terminal to ground. If the fan still does not work, replace the motor. If the motor tested OK, the fault lies in the coolant temperature switch, the fan controller, the EEC system, or the wiring which connects these components. Carefully check all wiring and connections. If no obvious problems are found, further diagnosis should be done by a dealer service department or repair shop. For removal and installation, disconnect the negative cable from the battery, detach the fan wiring harness from its clip and unplug the connector, remove the fan mounting screws and take the fan assembly out, remove the retainer clip and take the fan off the motor shaft (note: remove any burrs on the motor shaft before attempting to remove the fan), remove the fan motor-to-bracket nuts, then separate the motor from the bracket. Installation is the reverse of the removal procedure.
