How to remove and install a power steering pump on a Mercury Cougar?

If you are working on a supercharged model, the inter cooler and inter cooler tubes must be removed to gain access to the pump. First, disconnect the cable from the negative terminal of the battery. Then, place a drain pan under the power steering pump and remove the drivebelt. Using a special power steering pump pulley remover, remove the pulley from the pump. A special puller is required to remove the power steering pump pulley. Next, remove the pressure and return hoses from the backside of the pump and allow the fluid to drain. Plug the hoses to prevent contaminants from entering. Remove the pump mounting bolts, first remove the pump bracket bolts and the bracket, then remove the power steering pump bolts and lift the pump from the vehicle, taking care not to spill fluid on the painted surfaces. To install, position the pump in the mounting bracket and install the bolts. Tighten the bolts securely. Connect the hoses to the pump and tighten the fittings securely. Press the pulley onto the pump shaft using a special pulley installer tool. A special pulley-installer tool is need to push the pulley onto the pump shaft-under no circumstances should the pulley be hammered onto the shaft as this would damage the pump. Push the pulley onto the shaft until the front of the hub is flush with the end of the shaft, but no further. Install the drivebelt. Fill the power steering reservoir with the recommended fluid and bleed the system.

Genuine Mercury Cougar Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Power Steering Pumps found

View related parts

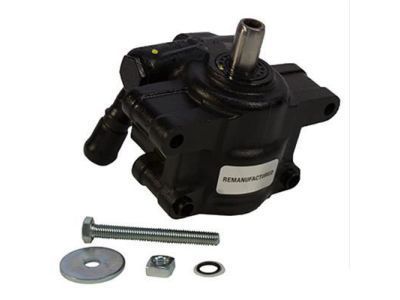

Mercury Cougar Pump Assy - Power Steering
Part Number: F1SZ-3A674-FARM
$81.44 MSRP: $128.55
You Save: $47.11 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Tag ID: HBC-JW, without EVO
- Replaced by: F1SZ-3A674-FBRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1997 Mercury Cougar | 6 Cyl 3.8L | 4AT, 4AT 4R70W, 4AT AOD, 4AT AODE, 5MT
View related parts

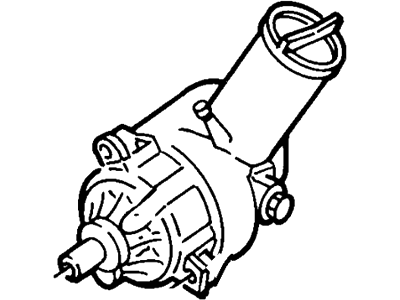

Mercury Cougar Pump Assy - Power Steering
Part Number: F1SZ-3A674-FBRM
$81.44 MSRP: $128.55
You Save: $47.11 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Tag ID: HBC-JW, without EVO
- Replaces: F1SZ-3A674-FARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1997 Mercury Cougar | 6 Cyl 3.8L | 4AT, 4AT 4R70W, 4AT AOD, 4AT AODE, 5MT
View related parts

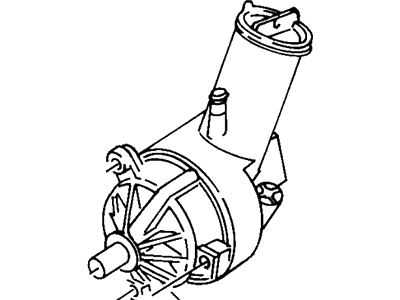

Mercury Cougar Pump Assy - Power Steering
Part Number: F8LZ-3A674-AARM
$90.79 MSRP: $143.45
You Save: $52.66 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: Tag ID: HBD-AN
- Replaced by: F8LZ-3A674-ABRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1997 Mercury Cougar | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AODE
View related parts

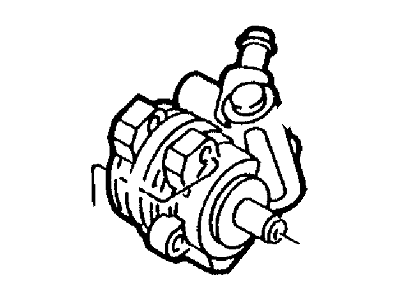

Mercury Cougar Pump Assy - Power Steering
Part Number: F83Z-3A674-CCRM
$94.78 MSRP: $149.82
You Save: $55.04 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering Pump
- Manufacturer Note: Used for pump ID's: HBD-AE, HBD-BP, HBD-DS, HBD-DZ, HBD-EA, HBD-EB, BEFORE 9/1/99
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Mercury Cougar | 4 Cyl 2.0L | 4AT CD4E, 5MT
View related parts

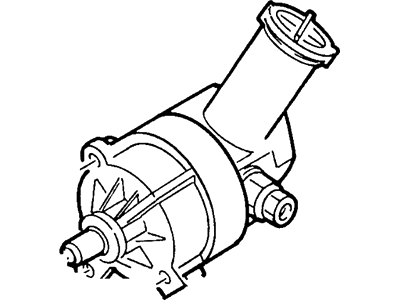

Mercury Cougar Pump Assy - Power Steering
Part Number: F8LZ-3A674-ABRM
$90.79 MSRP: $143.45
You Save: $52.66 (37%)
Product Specifications
- Other Name: Power Steering Pump
- Manufacturer Note: Tag ID: HBD-AN
- Replaces: F8LZ-3A674-AARM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1997 Mercury Cougar | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AODE
View related parts
Mercury Cougar Pump Assy - Power Steering
Part Number: 1S8Z-3A674-AARM
Product Specifications
- Other Name: Power Steering Pump
- Manufacturer Note: Tag ID: HBD-HK (Brown/Yellow)
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Mercury Cougar | 4 Cyl 2.0L | 4AT CD4E, 5MT
View related parts
Mercury Cougar Pump Assy - Power Steering
Part Number: E9SZ-3A674-BBRM
Product Specifications
- Replaced by: E9SZ-3A674-BCRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1988-1989 Mercury Cougar | 6 Cyl 3.8L, 8 Cyl 5.0L | 4AT AOD, 5MT
View related parts
Mercury Cougar Pump Assy - Power Steering
Part Number: F1SZ-3A674-DBRM
Product Specifications
- Manufacturer Note: Tag ID: HBC-KG, with EVO
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1991-1993 Mercury Cougar | 8 Cyl 5.0L | 4AT AOD
View related parts
Mercury Cougar Pump Assy - Power Steering
Part Number: F3ZZ-3A674-AARM
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1983-1986 Mercury Cougar | 4 Cyl 2.3L, 6 Cyl 3.8L, 8 Cyl 5.0L | 3AT C5, 4AT AOD, 5MT
View related parts
Mercury Cougar Pump Assy - Power Steering
Part Number: XS8Z-3A674-ABRM
Product Specifications
- Other Name: Power Steering Pump
- Manufacturer Note: Tag ID: HBD-FW (Blue/Gold), AFTER 9/1/99
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2000 Mercury Cougar | 4 Cyl 2.0L | 4AT CD4E, 5MT
View related parts
Mercury Cougar Pump Assy - Power Steering
Part Number: F1SZ-3A674-EARM
Product Specifications
- Manufacturer Note: Tag ID: HBC-JV, with EVO
- Replaced by: F1SZ-3A674-EDRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1997 Mercury Cougar | 6 Cyl 3.8L | 4AT, 4AT 4R70W, 4AT AOD, 4AT AODE, 5MT
View related parts
Mercury Cougar Pump Assy - Power Steering
Part Number: F1SZ-3A674-EBRM
Product Specifications
- Manufacturer Note: Tag ID: HBC-JV, with EVO
- Replaced by: F1SZ-3A674-EDRM
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1997 Mercury Cougar | 6 Cyl 3.8L | 4AT, 4AT 4R70W, 4AT AOD, 4AT AODE, 5MT
View related parts
Mercury Cougar Pump Assy - Power Steering
Part Number: F83Z-3A674-ADRM
Product Specifications
- Other Name: Power Steering Pump
- Manufacturer Note: Tag ID: HBD-DZ (blue/violet)
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2002 Mercury Cougar | 6 Cyl 2.5L | 4AT CD4E, 5MT

Mercury Cougar Power Steering Pump

The Power Steering Pump for Mercury Cougar Automobiles is the complex component of the automobile's power steering system, which transforms energy from the engine into hydraulic energy so that the driver can successfully maneuver a steering wheel. This fabricating-member functions as a pump that lowers the force required to operate the steering when supplying hydraulic power to the system, particularly at low speed or when stationary. Hydraulic power steering system may be employed in Mercury Cougar vehicles augmentation the steerage force with hydraulic cylinder and existed mechanics of steer-wheel and wheel Kinship for manual control in the power system breakdown. On the other hand, some types of vehicles may have electric power steering system that uses motor for help; the power supply to the actuator is through system controls. In general it is almost imperative with the Mercury Cougar automobiles that Power Steering Pump should function effectively so that there is no much effort exerted due to continuous assistance given by hydraulic or electric actuators incorporate in power steering.

We provide a wide range of Mercury Cougar Power Steering Pump at the best prices possible. If you need Mercury Cougar Power Steering Pump, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Mercury Cougar Power Steering Pump Parts Questions & Experts Answers

Pump Assy - Power Steering
F1SZ-3A674-EBRM
Q: How to remove and install a power steering pump on a Mercury Cougar?
A: If you are working on a supercharged model, the inter cooler and inter cooler tubes must be removed to gain access to the pump. First, disconnect the cable from the negative terminal of the battery. Then, place a drain pan under the power steering pump and remove the drivebelt. Using a special power steering pump pulley remover, remove the pulley from the pump. A special puller is required to remove the power steering pump pulley. Next, remove the pressure and return hoses from the backside of the pump and allow the fluid to drain. Plug the hoses to prevent contaminants from entering. Remove the pump mounting bolts, first remove the pump bracket bolts and the bracket, then remove the power steering pump bolts and lift the pump from the vehicle, taking care not to spill fluid on the painted surfaces. To install, position the pump in the mounting bracket and install the bolts. Tighten the bolts securely. Connect the hoses to the pump and tighten the fittings securely. Press the pulley onto the pump shaft using a special pulley installer tool. A special pulley-installer tool is need to push the pulley onto the pump shaft-under no circumstances should the pulley be hammered onto the shaft as this would damage the pump. Push the pulley onto the shaft until the front of the hub is flush with the end of the shaft, but no further. Install the drivebelt. Fill the power steering reservoir with the recommended fluid and bleed the system.
