Cylinder Block - External Parts fit your 1997 Ford Windstar 6 Cyl 3.8L 4-Speed Automatic Transmission AX4S
Currently shopping for
1997 Ford Windstar
Change VehicleVehicle Options
6 Cyl 3.8L; 4-Speed Automatic Transmission AX4SVehicle Options
6 Cyl 3.8L; 4-Speed Automatic Transmission AX4SCategories Close X
Currently selected
Engine
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radio & Shock Absorbers
Alternator, Battery, Distributor & Starter
Automatic Transmission
Console, instruments, mirrors, windshield
Door glass and fittings
EM Exterior Moulding
Fenders & Hood
Frame, Exhaust System & Springs
Front Axle & Steering
Fuel System & Manifolds
Fuel filler, luggage carrier, rear door
IT Body & Soft Trim Parts
Lamps & Wiring
Radiator & Grill
Rear Axle, Drive & Coupling Shafts
SM Sheet metal
Seats and belts
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
Parts Questions
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
F3AZ-6766-B
CAP ASY. (OIL FILLER)Cap Assy - Oil Filler- Screw on style cap, "Engine Oil" on top of cap
- Fit Note: 6 Cyl 3.8L
- Base Number: 6766
- Callout Name: 6766
$9.89 $6.201
- MANIFOLD (EXHAUST)
-N620482-S2
Nut - Adjusting Screw- (AM-24-D) Nut-M10 x 1.5 flanged lock point. Attach 5F250 to exh. manifolds. - (8/94)
- Fit Note: 6 Cyl 3.0L, 6 Cyl 3.8L
- Require Quantity: 4
- Package Quantity: 8
- Callout Name: 9430
- Replaced By: -N620482-S437
$11.33 $6.628
-N801648-S
Stud- (AW-30-D) Stud & Washer M8 x 1.25 x 1.25 x 63.0 Hx Shoulder
- Fit Note: 6 Cyl 3.8L
- Require Quantity: 7
- Package Quantity: 1
- Base Number: N801648-S
- Callout Name: 9430
$18.75 $13.731
-N808287-S60
Stud- (AW-53-A)Stud-M10 x 1.5 x 1.5 x 65.5. Attach 9430/9431 exh. Manifold to 5F250 Exhaust pipe
- Fit Note: 6 Cyl 3.0L, 6 Cyl 3.8L
- Require Quantity: 4
- Package Quantity: 1
- Base Number: N808287-S60
- Callout Name: 9430
$18.75 $13.731- -N801647-S
Screw&Wash M8X1.25X37 Hex Hd- (AB-149-K) Screw & Washer M8 x 1.25 x 37(attach exhaust manifolds to cyl. head)
- Fit Note: 6 Cyl 3.8L
- Require Quantity: 7
- Package Quantity: 1
- Base Number: N801647-S
- Callout Name: 9430
F68Z-9430-H
Manifold Assy - Exhaust- MANIFOLD (EXHAUST)
- Location: Passenger Side
- Fit Note: 6 Cyl 3.8L
- Callout Name: 9430
F3DZ-6734-A
GASKET (OIL PAN DRAIN PLUG)Gasket- Also included with 6730 & 6675 asy.
- Fit Note: 6 Cyl 3.8L
- Base Number: 6734
- Callout Name: 6734
$6.55 $4.215
D4FZ-6A008-A
DOWEL (CYLINDER HEAD TO CYLINDER BLOCK)Dowel - Pin- Fit Note: 6 Cyl 3.8L
- Require Quantity: 4
- Package Quantity: 4
- Base Number: 6A008
- Callout Name: 6A008
$7.42 $5.214
- BOLT (CRANKSHAFT PULLEY)
F58Z-6A340-A
Bolt - Flanged Hex.- Fit Note: 6 Cyl 3.8L
- Base Number: 6A340
- Callout Name: 6A340
- Replaced By: -W719969-S900
$8.95 $5.244
D4FZ-6A340-A
Bolt - Flanged Hex.- M14 X 40
- Fit Note: 6 Cyl 3.8L
- Callout Name: 6A340
- Replaced By: -W719969-S900
$8.95 $5.244
F2AZ-6C624-B
SENSOR ASY. (LOW OIL LEVEL)Sensor Assy- Fit Note: 6 Cyl 3.8L
- Base Number: 6C624
- Callout Name: 6C624
$560.00 $279.511
$10.00 $5.854
- DOWEL
EAD-6397-B
Sleeve - Guide- Fit Note: 6 Cyl 3.8L
- Require Quantity: 2
- Package Quantity: 4
- Base Number: 6397
- Callout Name: 6397
$2.90 $2.044
E8DZ-6397-A
Dowel- Front cover 6019 to cyl. block-12.4mm x 17.3mm
- Fit Note: 6 Cyl 3.8L
- Base Number: 6397
- Callout Name: 6397
$8.59 $6.032
E2DZ-6378-A
WASHER (CRANKSHAFT PULLEY RETAINING)Washer- Fit Note: 6 Cyl 3.8L
- Base Number: 6378
- Callout Name: 6378
$17.13 $12.035
F65Z-9A424-AA
SEAL (INTAKE MANIFOLD TO CYLINDER BLOCK - REAR)Seal- Rear, 3.8L
- Location: Rear
- Base Number: 9461
- Callout Name: 9A424
$38.17 $26.791
F65Z-9A425-AA
SEAL (INTAKE MANIFOLD TO CYLINDER BLOCK - FRONT)Seal- Front, 3.8L
- Location: Front
- Base Number: 9A425
- Callout Name: 9A425
$28.83 $19.721
- COVER ASY. (CYLINDER FRONT)
-N805112-S437
Stud- Stud bolt; M8 x 98mm
- Fit Note: 6 Cyl 3.8L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: N805112-S2
- Callout Name: 6019
$22.60 $13.001
-N804055-S
Hardware - Miscellaneous- Att. 6019 to 6010
- Fit Note: 6 Cyl 3.8L
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: 6019
- Replaced By: -W708265-S
$12.50 $7.314
-N805757-S106
Stud- Stud; M8 x 137mm
- Fit Note: 6 Cyl 3.8L
- Require Quantity: 4
- Package Quantity: 4
- Base Number: HT1
- Callout Name: 6019
$17.75 $10.394- -W701927-S430
Stud- Stud; M8 x 135mm
- Fit Note: 6 Cyl 3.8L
- Callout Name: 6019
- Replaced By: -W708474-S437M
$63.70 $46.621
F4DZ-8A582-A
HOSE AND CLAMP ASY. (WATER BY-PASS)Hose- From heater outlet to elbow
- Fit Note: 6 Cyl 3.8L
- Base Number: 8A582
- Callout Name: 8A582
$23.94 $17.521
- GASKET TO INTAKE MANIFOLD (AIR CHARGE CONTROL)
F68Z-9E936-A
Gasket- O-ring style gasket
- Fit Note: 6 Cyl 3.8L
- Callout Name: 9E936
- Replaced By: 3F2Z-9E936-AA
$7.70 $5.411
F4DZ-9E936-B
Gasket- Paper Style Gasket
- Fit Note: 6 Cyl 3.0L, 6 Cyl 3.8L
- Base Number: 9E936
- Callout Name: 9E936
$1.55 $1.091
- GASKET (CYLINDER HEAD)
F65Z-6051-AE
Gasket - Cylinder Head- RH-XF2E-6051-A2E (This is a sandwich type gasket)
- Location: Passenger Side
- Fit Note: 6 Cyl 3.8L
- Base Number: 6051
- Callout Name: 6051
$86.17 $58.941
F65Z-6051-AEE
Gasket - Cylinder Head- LH XF2E-6083-A2E (This is a sandwich type gasket)
- Location: Driver Side
- Fit Note: 6 Cyl 3.8L
- Base Number: 6051
- Callout Name: 6051
$88.50 $59.471
- GASKET (INTAKE MANIFOLD TO CYLINDER HEAD)
XU2Z-9439-CA
Gasket- RH - 3mm thick. Use only with F68Z-9424-B & F78Z-9424-AA "Original Production lower intake manifolds., BEFORE 1/15/98
- Location: Passenger Side
- Fit Note: 6 Cyl 3.8L
- Base Number: 9439
- Callout Name: 9439
$20.44 $14.961 - XU2Z-9439-DA
Gasket- LH- 3mm thick. Use only with F68Z-9424-B & F78Z-9424-AA "Original Production manifolds"
- Location: Driver Side
- Fit Note: 6 Cyl 3.8L
- Base Number: 9439
- Callout Name: 9439
$58.65 $42.921
XF2Z-9439-AA
Gasket- LH 4mm thick. Use with F88Z-9424-AA "RETROFIT", BEFORE 1/15/98
- Location: Driver Side
- Fit Note: 6 Cyl 3.8L
- Base Number: 9439
- Callout Name: 9439
$35.67 $24.401
XF2Z-9439-BA
Gasket- RH 4mm thick. Use with F88Z-9424-AA."RETROFIT", BEFORE 1/15/98
- Location: Passenger Side
- Fit Note: 6 Cyl 3.8L
- Base Number: 9439
- Callout Name: 9439
$35.83 $24.511- XU2Z-9439-AA
Gasket- RH - QSF 72-0152. 3mm thick. Use only with F68Z-9424-B & F78Z-9424-AA "Original Production manifold", BEFORE 1/15/98
- Location: Passenger Side
- Fit Note: 6 Cyl 3.8L
- Callout Name: 9439
- Replaced By: XU2Z-9439-CA
$20.44 $14.961
XU2Z-9439-BA
Gasket- LH - QSF 72-0152. 3mm thick. Use only with F68Z-9424-B & F78Z-9424-AA "Original Production manifolds", BEFORE 1/15/98
- Location: Driver Side
- Fit Note: 6 Cyl 3.8L
- Callout Name: 9439
- Replaced By: XU2Z-9439-DA
$58.65 $42.921
F68Z-6750-AG
INDICATOR ASY. (OIL LEVEL)Indicator Assy - Oil Level- Fit Note: 6 Cyl 3.8L
- Callout Name: 6750
- Replaced By: F78Z-6750-AA
$10.00 $5.854
- $18.75 $13.731
- $12.50 $7.314
$4.25 $2.494
$6.50 $3.802

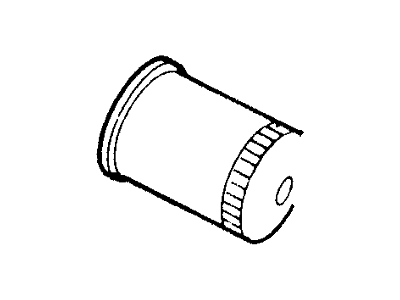

E4FZ-6731-A
ELEMENT ASY. (OIL FILTER)Filter Assembly - Oil- Fit Note: 6 Cyl 3.8L
- Callout Name: 6731
- Replaced By: E4FZ-6731-AB
$11.80 $7.401
E8DZ-6379-A
BOLT (FLYWHEEL ATTACHING)Bolt - Hex.Head- Fit Note: 6 Cyl 3.8L
- Require Quantity: 6
- Package Quantity: 6
- Base Number: 6379
- Callout Name: 6379
$23.70 $16.646
E8DZ-6A618-A
SHAFT ASY. (OIL PUMP INTERMEDIATE)Shaft Assembly-Oil Pump In- BEFORE 3/29/2000
- Fit Note: 6 Cyl 3.8L
- Callout Name: 6A618
- Replaced By: YL3Z-6A618-AA
$64.17 $44.281
E9DZ-6C626-B
WASHER (LOW OIL LEVEL SENSOR)Washer- Fit Note: 6 Cyl 3.8L
- Base Number: 6C626
- Callout Name: 6C626
$9.93 $6.395
F2DZ-6C518-A
GROMMET (VALVE ROCKER ARM COVER ISOLATOR)Grommet- Also incl. in 6582 asy.
- Fit Note: 6 Cyl 3.8L
- Base Number: 6C518
- Callout Name: 6C518
$1.46 $1.038
- BOLT (CYLINDER HEAD)
F4SZ-6065-B
Bolt - Hex.Head- Short,M11 x 1.50 x 81.0 Metric
- Fit Note: 6 Cyl 3.8L
- Require Quantity: 8
- Package Quantity: 1
- Base Number: 6065
- Callout Name: 6065
$34.24 $25.061
F7SZ-6065-AA
Bolt - Cylinder Head- Long-M11x1.50x131.8 Metric
- Fit Note: 6 Cyl 3.8L
- Require Quantity: 8
- Package Quantity: 8
- Callout Name: 6065
- Replaced By: F7ZZ-6065-AA
$8.52 $5.988
F6TZ-12A362-CA
SYNCHRONIZER ASY.Synchronizer Assy- O-ring is FO7Z 12143-AA
- Fit Note: 6 Cyl 3.8L
- Callout Name: 12A362
- Replaced By: F6TZ-12A362-CB
$245.45 $123.531
F6ZZ-6584-AA
GASKET (VALVE ROCKER ARM COVER)Gasket - Valve Rocker Arm Cover- Also incl. in 6582 asy.
- Fit Note: 6 Cyl 3.8L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6584
- Callout Name: 6584
$29.83 $20.411
$18.75 $13.731
-N605771-S47
COVER (TRANSMISSION CONVERTER HOUSING LOWER)Bolt - Hex.Head- Bolt (7986 to 7005), AX4S
- Fit Note: 6 Cyl
- Base Number: N605771-S47
- Callout Name: 7986
- CASE ASY.
-N606083-S2
Bolt- (AB-122-GA) bolt (case to eng.) hex flange head M12 x 1.75 x 65 (metric)
- Require Quantity: 6
- Package Quantity: 1
- Base Number: HB2
- Callout Name: 7005
-N620015-S
Nut - Adjusting Screw- Nut (case to rev. clutch cyl.) hex M12 x 1.75 (metric)
- Base Number: HN2
- Callout Name: 7005
-N803727-S
Bolt- Bolt (case to chain cover) hex flange head-M6 x 1.0 x 28 (metric)
- Require Quantity: 4
- Package Quantity: 1
- Base Number: HB1
- Callout Name: 7005
- -N804647-S
Hardware - Miscellaneous- Screw (case to rev. clutch cyl.) set hex socket-M12 x 1.75 x 45 (metric)
- Base Number: HM3
- Callout Name: 7005
- PIN/RIVET (ENGINE BALANCE)
E2DZ-6A328-B
Pin- Used on 6375 Flywheel - 1/2"O.D. x .34" long
- Fit Note: 6 Cyl 3.8L
- Base Number: 6A328
- Callout Name: 6A328
- EOSZ-6A328-B
Pin- Used on Damper - 1.03" long
- Fit Note: 6 Cyl 3.8L
- Base Number: 6A328
- Callout Name: 6A328
E9DZ-6730-A
PLUG (OIL PAN DRAIN)Plug - Oil Drain- Also incl. in 6675 asy.
- Fit Note: 6 Cyl 3.8L
- Base Number: 6730
- Callout Name: 6730
F57Z-12A112-A
STATOR ASY.Stator Assembly- 3 pin connector, Camshaft position sensor
- Fit Note: 6 Cyl 3.8L
- Callout Name: 12A112
- Replaced By: F58Z-12A112-AA
- F68Z-6010-AL
BLOCK ASY. (CYLINDER)Cylinder Block- BLOCK ASY. (CYLINDER)
- Fit Note: 6 Cyl 3.8L
- Callout Name: 6010
F68Z-6675-AB
PAN ASY. (OIL)Pan Assy - Engine Oil- Fit Note: 6 Cyl 3.8L
- Base Number: 6675
- Callout Name: 6675
F68Z-6754-BD
TUBE ASY. (OIL LEVEL INDICATOR)Tube - Oil Level Indicator- Fit Note: 6 Cyl 3.8L
- Base Number: 6754
- Callout Name: 6754
- GASKET SET (MANIFOLD)
F68Z-9433-B
Kit - Gasket- QSF#72-0152. Use only with F68Z-9424-B & F78Z-9424-AA. Contains 3mm thick 9439 gaskets., BEFORE 1/15/98
- Fit Note: 6 Cyl 3.8L
- Callout Name: 9433

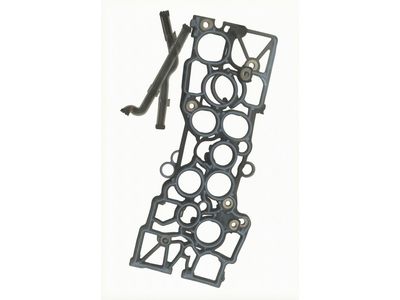

F88Z-9433-AA
Kit - Gasket- Use only with F88Z,9424,AA. Contains 4mm thick 9439 gaskets. , BEFORE 1/15/98
- Fit Note: 6 Cyl 3.8L
- Base Number: 9433
- Callout Name: 9433
F68Z-9D477-C
TUBE (EXHAUST GAS RECIRCULATING VALVE TO EXHAUST MANIFOLD)Tube - Egr Valve To Exhaust Manifld- Fit Note: 6 Cyl 3.8L
- Base Number: 9D477
- Callout Name: 9D477
F6ZZ-6582-A
COVER ASY. (VALVE ROCKER ARM)Cover - Cylinder Head- RH, BEFORE 12/13/96
- Location: Passenger Side
- Fit Note: 6 Cyl 3.8L
- Callout Name: 6582
- HEAD (CYLINDER)
F75Z-6049-FA
Cylinder Head Assy- Excl. valves
- Fit Note: 6 Cyl 3.8L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6049
- Callout Name: 6049
- F78Z-6V049-AARM
Kit - Remanufactured Cylinder Head- Fit Note: 6 Cyl 3.8L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 6V049
- Callout Name: 6049
F78Z-6B321-AA
DAMPER AND PULLEY ASY. (CRANKSHAFT VIBRATION)Pulley - Crankshaft- After 1/16/97
- Fit Note: 6 Cyl 3.8L
- Callout Name: 6B321
- GASKET SET (VALVE GRIND)
F7TZ-6079-AA
Kit - Gasket- Does not include unique 9H486 gasket. Purchase separately.
- Fit Note: 6 Cyl 3.8L
- Callout Name: 6079
- F7TZ-6079-AB
Kit - Gasket- Does not include unique 9H486 gasket. Purchase separately.
- Fit Note: 6 Cyl 3.8L
- Base Number: 6079
- Callout Name: 6079
$0.00
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 1997 Ford Windstar parts. Parts like Cylinder Block - External Parts are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.8L. Transmission: 4AT AX4S.
