Internal Parts - Servos & Bands fit your 2000 Mercury Mountaineer 6 Cyl 4.0L 5-Speed Automatic Transmission 5R55E
Currently shopping for
2000 Mercury Mountaineer
Change VehicleVehicle Options
6 Cyl 4.0L; 5-Speed Automatic Transmission 5R55EVehicle Options
6 Cyl 4.0L; 5-Speed Automatic Transmission 5R55ECategories Close X
Currently selected
Automatic Transmission
- External Parts - Automatic Transmission Cooler Lines
- External Parts - Automatic Transmission Installation
- External Parts - Automatic Transmission To Transfer Case Gasket, Bolts & Heat Shield
- External Parts - Floor Pan Blanking Plate - Automatic Transmission
- External Parts - Gearshift Controls
- External Parts - Steering Column
- Internal Parts - Coast Clutch, Overdrive Planetary & Related Parts
- Internal Parts - Direct & Forward Clutches
- Internal Parts - Forward & Reverse Planetary, Output Shaft & Related Parts
- Internal Parts - Linkage, Case & Related Parts
- Internal Parts - Servos & Bands
- Internal Parts - Torque Convertor, Pump, Convertor Housing Case & Extension Housing
- Internal Parts - Valve Body & Related Parts
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radio & Shock Absorbers
Alternator, Battery, Distributor & Starter
Console, instruments, mirrors, windshield
Door glass and fittings
EM Exterior Moulding
Engine
Fenders & Hood
Frame, Exhaust System & Springs
Front Axle & Steering
Fuel System & Manifolds
Fuel filler, luggage carrier, rear door
IT Body & Soft Trim Parts
Lamps & Wiring
Radiator & Grill
Rear Axle, Drive & Coupling Shafts
SM Sheet metal
Seats and belts
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
Parts Questions
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
$3.25 $1.914
- COVER (SERVO)-E860343-S
Snap Ring- (AQ-81) retaining ring (7D027 to 7005) 67 x 1.5 (metric) (1) reqd. for interm. cover - (1) reqd. for o/drv. cover
- Require Quantity: 2
- Package Quantity: 4
- Base Number: E860343-S
- Callout Name: 7D027
$3.25 $1.914
F77Z-7D027-ZC
Cover- Cover - overdrive (front) servo - #97GT-7L493-ZC
- Base Number: 7D027
- Callout Name: 7D027
$28.33 $19.891
E6TZ-7D027-B
Cover- Cover - intermediate (rear) servo - #84DT 7D027-AB
- Callout Name: 7D027
- Replaced By: 2L5Z-7D027-AA
$28.33 $19.891
$0.00
- SPRING (SERVO)
$8.10 $5.691
$13.45 $9.441
- PISTON ASY. (REVERSE BAND SERVO)
EOAZ-7D189-B
Piston - Low-Reverse Servo- 3.369 overall length - 2 grooves on rod
- Base Number: 7D189
- Callout Name: 7D189
$22.25 $15.221
EOAZ-7D189-C
Piston - Low-Reverse Servo- 3.423 overall length - 3 grooves on rod
- Base Number: 7D189
- Callout Name: 7D189
$25.17 $17.211
EOAZ-7D189-A
Piston - Low-Reverse Servo- 3.316 overall length - 1 groove on rod
- Base Number: 7D189
- Callout Name: 7D189
$21.83 $14.931
- PISTON AND ROD ASY. (SERVO)$28.33 $19.891
- $28.33 $19.891
- F77Z-7D021-A2A
Piston- Piston - intermediate (rear) servo, #97GT-7E221-A2A
- Base Number: 7D021
- Callout Name: 7D021
$0.00 - F77Z-7D021-ZA
Piston And Rod - Overdrive Servo- Piston - overdrive (front) servo, #97GT-7E221-ZA
- Base Number: 7D021
- Callout Name: 7D021
- SCREW (INTERMEDIATE AND FRONT BAND ADJUSTING)
E7TZ-7C492-A
Screw - Adjusting- Intermediate & overdrive band
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 7C492
- Callout Name: 7C492
$12.25 $8.601
-388307-S100
Nut - Sealing- (MM-54-HA) nut (7C492 to 7005) 1/2" - 16 - (1) reqd. interm. band (1) reqd. o/drv. band
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: 7C492
- Replaced By: -E825100-S102
$6.65 $3.904
- BAND ASY. (REVERSE CLUTCH)
$80.50 $55.061
-392004-S300
Ring - Retaining- Slave ring, used to hold band in position on plant assembly line - not required in service
- Callout Name: 7D095
- COVER ASY. (REVERSE BAND SERVO)
$15.00 $10.531 - -388215-S100
Ring- (QQ-94-G)RING, RETAINING - 3-13/16" - RETAINS (7D036 TO 7005)
- Base Number: 388215-S100
- Callout Name: 7D036
$10.00 $5.854 - $18.75 $13.731
- $6.65 $3.904
$10.67 $7.493
E6TZ-7D040-A
SEAL (SERVO COVER TO CASE)Seal- Seal - O-ring - used for both Intermediate and Overdrive servo covers
- Require Quantity: 2
- Package Quantity: 3
- Base Number: 7D040
- Callout Name: 7D040
$5.32 $3.433
- CASE ASY.
-388142-S
Pin - Locating- Pin, dowel - reverse band anchor - 1/2" x .98"
- Require Quantity: 2
- Package Quantity: 2
- Base Number: 388142-S
- Callout Name: 7005
$11.30 $6.612
$1.63 $0.958
- CASE ASY. (TRANSMISSION)
-390318-S2
Plug - Threaded- Plug - pipe - (Line and VFS3 ports)
Plug - pipe - 1/8"-27 - (pressure tap ports) - Require Quantity: 2
- Package Quantity: 4
- Callout Name: 7005
- Replaced By: -390685-S430
$6.65 $3.904
$3293.85 $2397.921
- SEAL (REVERSE BAND SERVO PISTON FLUID)
$7.82 $5.033
$3.84 $2.473

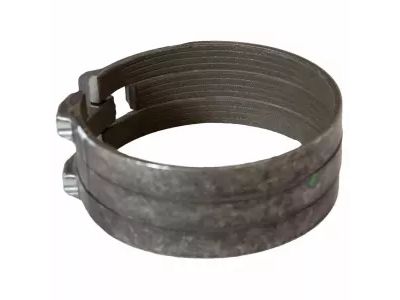

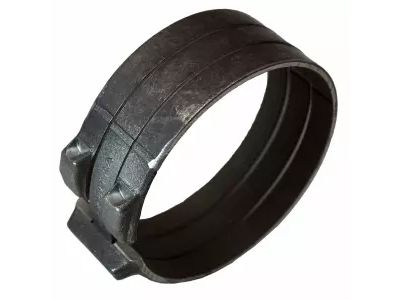

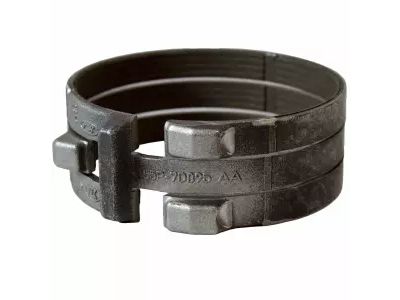

E3ZZ-7D095-A
BAND ASY. (REVERSE)Band - Transmission Low-Reverse- Reverse
- Callout Name: 7D095
- Replaced By: 1L5Z-7D095-AA
$109.67 $75.011
E5TZ-7D430-A
STRUT (INTERMEDIATE AND FRONT BAND ANCHOR)Strut - Intermediate Brake- Strut - overdrive (front) and intermediate (rear) band anchor
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 7D430
- Callout Name: 7D430
$80.50 $55.061
E7RY-7A653-A
BRACKET (OVERDRIVE BAND ANCHOR)Bracket - Overdrive Band- Overdrive band anchor bracket
- Base Number: 7A653
- Callout Name: 7A653
$11.37 $7.981
F5TZ-7330-A
LEVER (SERVO)Lever - Intermediate Band Actuating- Lever - overdrive and intermediate servo - #A
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 7330
- Callout Name: 7330
$13.53 $9.501
- SHAFT (ACTUATING)
F77Z-7D433-BA
Shaft - Intermediate Band Actuating- Short Shaft - Intermediate
- Base Number: 7D433
- Callout Name: 7D433
$21.33 $14.981
F77Z-7D433-AA
Shaft - Intermediate Band Actuating- Long Shaft - Front - Overdrive Band
- Base Number: 7D433
- Callout Name: 7D433
XL2Z-7D189-CA
PISTON ASY. AND ROD ASY. (REVERSE BAND SERVO) - SELECT FITPiston - Low-Reverse Servo- # 1 groove on rod, Service replacement
- Base Number: 7D189
- Callout Name: 7D189
$73.67 $51.271
- GASKET AND OIL SEAL KIT (OVERHAUL)
3U2Z-7153-AA
Kit - Gasket- Cannot be used for warrenty repairs, 4.0L/5R55E
- Callout Name: 7153
- Replaced By: 3U2Z-7153-AB
F77Z-7153-AA
Kit - Gasket- Note: sealing rings for o/drv. clutch (7D025), direct clutch (7D429), and forward clutch (7D019) not serviced in kit, see group 7M154 for bearing and seal assemblies.
- Base Number: 7153
- Callout Name: 7153
D4ZZ-7D029-A
STRUT (INTERMEDIATE AND FRONT BRAKE BAND)Strut - Overdrive Band- Intermediate and overdrive
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 7D029
- Callout Name: 7D029
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2000 Mercury Mountaineer parts. Parts like Internal Parts - Servos & Bands are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.0L. Transmission: 5AT 5R55E.
