Egr System fit your 2005 Ford Excursion 8 Cyl 6.0L 4-Speed Automatic Transmission 4R100
Currently shopping for
2005 Ford Excursion
Change VehicleVehicle Options
8 Cyl 6.0L; 4-Speed Automatic Transmission 4R100Vehicle Options
8 Cyl 6.0L; 4-Speed Automatic Transmission 4R100Categories Close X
Currently selected
Fuel System & Manifolds
- Egr System
- Fuel Control Module, Sensor & Related Parts
- Fuel Filler Pipe Installation
- Fuel Filter & Related Parts
- Fuel Injection Pump
- Fuel Injectors & Rails
- Fuel Lines & Related Parts
- Fuel Lines - Engine
- Fuel Pump & Repair Kits
- Fuel Tank & Related Parts
- Manifold & Related Parts - Exhaust
- Manifold & Related Parts - Intake
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radio & Shock Absorbers
Alternator, Battery, Distributor & Starter
Automatic Transmission
Console, instruments, mirrors, windshield
Door glass and fittings
EM Exterior Moulding
Engine
Fenders & Hood
Frame, Exhaust System & Springs
Front Axle & Steering
Fuel filler, luggage carrier, rear door
IT Body & Soft Trim Parts
Lamps & Wiring
Radiator & Grill
Rear Axle, Drive & Coupling Shafts
SM Sheet metal
Seats and belts
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
Parts Questions
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- THERMOSTAT (WATER)
3C3Z-8575-AA
Thermostat Assy- Themostat and connector asy - #3C34 8575-AA - (Navistar ID 1839304C91) - includes gasket
- Fit Note: 8 Cyl 6.0L
- Base Number: 8575
- Callout Name: 8575
$48.73 $30.551
$11.67 $7.511
3C3Z-8592-AA
Connection - Water Outlet- Connector - water outlet (lower)
- Location: Lower
- Fit Note: 8 Cyl 6.0L
- Callout Name: 8575
- Replaced By: 3C3Z-8592-AB
$46.00 $28.841
3C3Z-9Y439-AD
HOSE ASY (EGR COOLER OUTLET)Hose Assy- #3C34 9Y439-AE - Part is actually a bleed tube for air bubbles, located on the engine to EGR cooler - coolant runs through it and coolant is diverted from engine into EGR cooler and then to the degas bottle
- Fit Note: 8 Cyl 6.0L
- Base Number: 9Y439
- Callout Name: 9Y439
$48.50 $34.051
- DUCT (ENGINE AIR CLEANER TO ENGINE)
$157.50 $107.731
3C3Z-8287-AA
Clamp - Hose- Clean air hose Inlet to Turbo - (Navistar ID 274090R91)
- Base Number: 8287
- Callout Name: 9C623
$13.731
- RING/SEAL (INJECTION PUMP TO FITTING - SEALING)
3C3Z-9N693-EA
"O" Ring- #1838615-C1. 2.1 inches in dia. Also serviced in 9p458 assy., Oval gasket for 9P458
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$7.51 $5.711
3C3Z-9N693-A

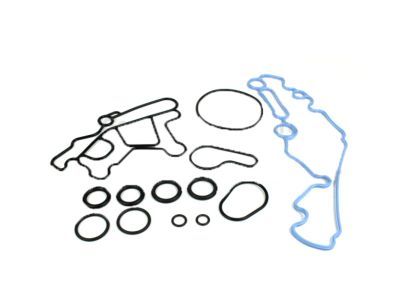

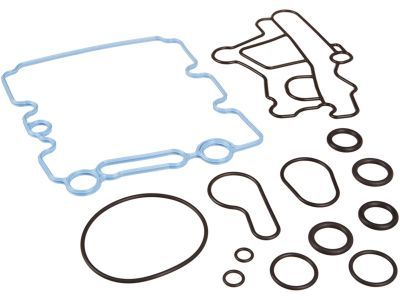

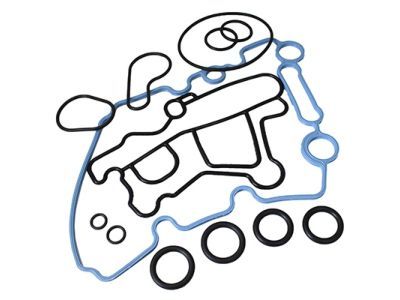

"O" Ring- Complete seal kit that also comes with Oil Cooler asy. Contains all seals required to R&R Oil Cooler.
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$85.08 $63.041
3C3Z-9N693-FA
"O" Ring- #1838618-C1. 34mm OD x 5mm thick. Also serviced in 9p458 assy., Round seal for 9P458
- Fit Note: 8 Cyl 6.0L
- Base Number: W302201
- Callout Name: 9N693
$7.14 $5.431
3C3Z-9N693-GA
"O" Ring- #1837800-C1. 14mm OD x 2mm thick. O-ring for ICP sensor
Seal for 9K024 on H/P pump cover - Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$5.75 $4.381
3C3Z-9N693-BA
"O" Ring- 14mm OD x 2mm thick. O-ring for plug on HP pump.
14mm OD x 2mm thick. O-ring for plug on fuel filter housing. - Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$4.88 $3.711
3C3Z-9N693-JA
"O" Ring- #1837889-C1. 10mm OD x 2mm thick. O-ring for cam position sensor
- Fit Note: 8 Cyl 6.0L
- Callout Name: 9N693
- Replaced By: 3C3Z-9229-B
$13.84 $8.901
3C3Z-9N693-KA
"O" Ring- #1837799-C1. 14mm OD x 2mm thick. O-ring for ECT and EOP sensor
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$4.89 $3.721- 3C3Z-9N693-CA
"O" Ring- #1835339-C1. 22mm OD x 2mm thick. Also serviced in engine high pressure pump kit 9G804
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$13.731
3C3Z-9N693-DA
"O" Ring- 21mm OD x 4mm. Seal between HP pump and engine block.
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$6.43 $4.891
3C3Z-9N693-HA
"O" Ring- #1836505-C1. 11mm OD x 2mm thick. O-ring for cam position sensor
- Fit Note: 8 Cyl 6.0L
- Callout Name: 9N693
- Replaced By: 3C3Z-9229-B
$13.84 $8.901- 3C3Z-9N693-LA
"O" Ring- #1837803-C1. 18mm OD x 2mm thick. O-ring for manifold air temp. sensor
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9N693
$13.731
3C3Z-9N693-NA
"O" Ring- Seal inside fuel filter housing between 9T289 & 9C166.
- Fit Note: 8 Cyl 6.0L
- Callout Name: 9N693
- Replaced By: -W301334
$12.54 $7.341
3C3Z-9J432-CA
BRACKET (TRANSDUCER MOUNTING)Bracket- Used to mount 9J460 sensor
- Fit Note: 8 Cyl 6.0L
- Base Number: 9J432
- Callout Name: 9J432
- CLAMP (HOSE)
F81Z-8287-EA
Clamp - Hose- Inlet from exhaust system to turbo; 100mm V style clamp
- Fit Note: 8 Cyl 6.0L
- Base Number: 8287
- Callout Name: 8287
$62.36 $39.101 - 3C3Z-8287-AA
Clamp - Hose- Clean air hose Inlet to Turbo - (Navistar ID 274090R91)
- Fit Note: 8 Cyl 6.0L
- Base Number: 8287
- Callout Name: 8287
$13.731
3C3Z-8287-CA
Clamp - Hose- EGR cooler to exhaust pipe
- Fit Note: 8 Cyl 6.0L
- Callout Name: 8287
- Replaced By: 3C3Z-8287-CB
$42.91 $26.901
$8.65 $5.571
3C3Z-9P455-AB

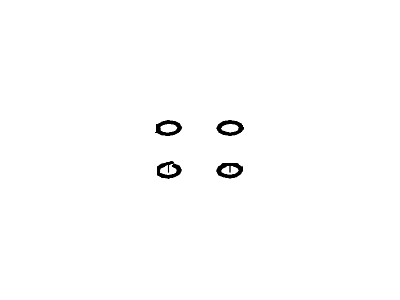

KIT (SEALS EGR VALVE)Gasket- Gasket/O'ring repair kit for 9F452 EGR valve. Also serviced in 9424 kit, FROM 3/19/2003
- Fit Note: 8 Cyl 6.0L
- Base Number: 9P455
- Callout Name: 9P455
$12.50 $8.781
- GASKET (GASKET EGR HOUSING TO THROTTLE BODY)
3C3Z-9E933-AA
Gasket- Gasket-EGR cooler, Rear
- Location: Rear
- Fit Note: 8 Cyl 6.0L
- Base Number: 9E933
- Callout Name: 9E933
$10.96 $6.411
3C3Z-9E933-BA
Gasket- Gasket-EGR cooler, Front. Gasket between EGR cooler and bottom of intake manifold.
- Fit Note: 8 Cyl 6.0L
- Base Number: 9E933
- Callout Name: 9E933
$11.70 $6.841
3C3Z-9F485-BA
CONNECTOR (EGR EXHAUST MANIFOLD)Connector- 5/16 tube flare, 36mm long, 14mm nut
- Fit Note: 8 Cyl 6.0L
- Base Number: 9F485
- Callout Name: 9F485
$23.00 $13.461
- THERMOSTAT
3C3Z-8592-AB
Connection - Water Outlet- #3C34 8599-AB - #1840603C93 (International) - One end of tube bolts to heater hose and the other end bolts to the front cover which is the only end with a gasket - 3C3Z-9J469-AA(gasket)
- Fit Note: 8 Cyl 6.0L
- Base Number: 8592
- Callout Name: 8592
$46.00 $28.841
4C4Z-8592-AA
Connection - Water Outlet- Blue hose that Connects 9P456 Cooler to 9P458. (OEM hose was Orange).
- Fit Note: 8 Cyl 6.0L
- Base Number: 8592
- Callout Name: 8592
$66.55 $32.331- 3C3Z-8592-AA
Connection - Water Outlet- #3C34 8599-AA - (Navistar ID 1840603C92) - heater supply tube that connects to the front cover, also has an attachment point to the intake manifold
- Fit Note: 8 Cyl 6.0L
- Callout Name: 8592
- Replaced By: 3C3Z-8592-AB
$46.00 $28.841
3C3Z-9J469-AA
SEAL (EGR TUBE RETAINER)Gasket- Seal-EGR cooler. 27mm OD x 4mm.
- Fit Note: 8 Cyl 6.0L
- Base Number: 9J469
- Callout Name: 9J469
$7.08 $4.141
5C3Z-9D477-A

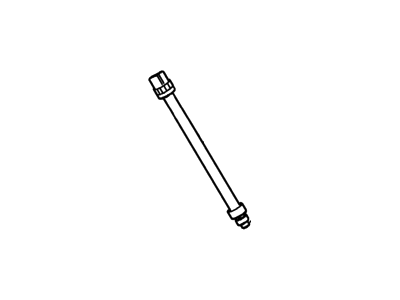

TUBE (EXHAUST GAS RECIRCULATING VALVE TO EXHAUST MANIFOLD)Tube - Egr Valve To Exhaust Manifld- Fit Note: 8 Cyl 6.0L
- Base Number: 9D477
- Callout Name: 9D477
$37.20 $21.761
- KIT (VALVE EGR.)
$114.50 $75.571
5C3Z-9J460-A
SENSOR ASY. (EGR PRESSURE VALVE)Sensor Assy- Fit Note: 8 Cyl 6.0L
- Callout Name: 9J460
- Replaced By: 5C3Z-9J460-C
$168.36 $105.561
- VALVE (EGR BACK PRESSURE)
5C3Z-9F452-AA
Valve Assy - Modulator- Valve assembly-EGR backpressure. Includes gasket/o'rings repair kit 9P455 as part of the assembly
- Fit Note: 8 Cyl 6.0L
- Callout Name: 9F452
- Replaced By: 5C3Z-9F452-A
$287.27 $180.751
- 3C3Z-9N693-BA
PLUG ASY. (SUPPLY RAIL)"O" Ring- O-ring for M17 plug
- Fit Note: 8 Cyl 6.0L
- Base Number: 9N693
- Callout Name: 9K024
$4.88 $3.711
- KIT (EGR COOLER)
- 4C3Z-9P456-AC
Cooler - Egr- EGR Cooler & related parts
- Fit Note: 8 Cyl 6.0L
- Base Number: 9P456
- Callout Name: 9P456
YC3Z-9047-AA
HOSE (FUEL TANK TO FILLER PIPE)Hose - Filler Pipe- Also serviced in 9034 asy.
- Base Number: 9047
- Callout Name: 9047
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2005 Ford Excursion parts. Parts like Egr System are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 6.0L. Transmission: 4AT 4R100.
