Direct Clutch fit your 2005 Mercury Grand Marquis 8 Cyl 4.6L 4-Speed Automatic Transmission 4R70W
Currently shopping for
2005 Mercury Grand Marquis
Change VehicleVehicle Options
8 Cyl 4.6L; 4-Speed Automatic Transmission 4R70WVehicle Options
8 Cyl 4.6L; 4-Speed Automatic Transmission 4R70WCategories Close X
Currently selected
Automatic Transmission
- Case Extension Housing & Related Parts
- Direct Clutch
- Forward Clutch, Low One-Way Clutch, Planetary & Reverse Band
- Gasket Set & Overhaul Kit
- Intermediate Clutch, Old Band & Related Parts
- Manual Selector Linkage & Parking Mechanism
- Output Shaft & Related Parts
- Pump & Related Parts
- Reverse Clutch
- Sensors
- Servos & Accumulators
- Shift Control Selector Mechanism
- Steering Column
- Torque Converter & Related Parts
- Transmission Cooling System
- Transmission Installation
- Transmission Shift Controls
- Valve Body, Solenoids, Pan Filter & Related Parts
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radios & Shock Absorbers
Alternator, Regulator, Battery, Starter & Distributor
Body Front & Floor
Body Sides & Quarter
EM Exterior Moulding
Engine
Fenders & Hood
Frame, Exhaust System, Spring & Stabilizer
Front Suspension & Steering
Fuel System & Manifolds
IT Interior Trim Parts
Lamps & Wiring
Radiator & Grill
Rear Axle & Drive Shaft
Roof, Back, Luggage Compartment & Tailgate
SM Body Sheet metal
Seats
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
Parts Questions
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description

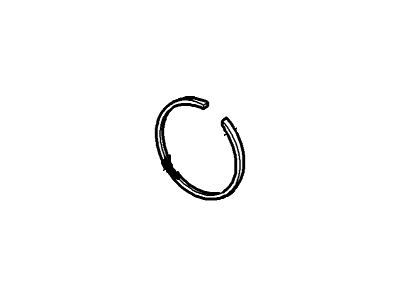

- SNAP RING (CLUTCH PRESSURE PLATE RETAINER) DIRECT CLUTCH
$7.58 $4.883
$5.39 $3.473
$7.64 $4.913
$5.59 $3.603
$13.42 $8.631
EOAZ-7F236-B
HUB (DIRECT CLUTCH)Hub - Clutch- #EOAP 7F236-AB or AC
- Callout Name: 7F236
- Replaced By: EOAZ-7F236-A
$21.37 $15.641
3L3Z-7F274-AA
SEAL (OUTPUT SHAFT TO DIRECT CLUTCH CYL.)Seal- Require Quantity: 2
- Package Quantity: 2
- Base Number: 7F225
- Callout Name: 7F274
$4.28 $2.752
3L3Z-7F243-AA
BEARING ASY. (DIRECT CLUTCH INNER)Bearing- #7 thrust
- Base Number: 7F243
- Callout Name: 7F243
$28.73 $18.011
- PLATE (CLUTCH PRESSURE) REVERSE CLUTCH
XL3Z-7B066-AA
Plate - Clutch Pressure- Rear plate - .323" thick, measured at spline area
- Base Number: 7B066A
- Callout Name: 7B066
$23.00 $16.151
F2TZ-7B066-B
Plate - Clutch Pressure- Front plate - 5 33/64" O.D. - 34 teeth
- Base Number: 7B066A
- Callout Name: 7B066
$0.00
- SEAL (CLUTCH CYLINDER)
F3AZ-7C099-A
Seal- 1 1/4" I.D. - short flair lip seal - direct clutch piston inner
- Base Number: 7C099
- Callout Name: 7C099
$3.79 $2.453
F3LY-7C099-A
Seal- 2 1/2" O.D. - short lip seal - forward clutch piston inner
- Base Number: 7C099
- Callout Name: 7C099
$9.69 $6.241
F4AZ-7F237-A
WASHER (DIRECT CLUTCH INNER BRG.)Support- 1 7/8" O.D. x 1/8" thick - use between 7F283 cyl. & 7F243 bearing
- Base Number: 7F237
- Callout Name: 7F237
$32.36 $20.291
F8AZ-7B164-AA
PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) FORWARD CLUTCHPlate Assy - Drive- Friction
- Require Quantity: 5
- Package Quantity: 5
- Base Number: 7B164
- Callout Name: 7B164
$16.60 $11.655
F8AZ-7B164-BA
PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) DIRECT CLUTCHPlate Assy - Drive- Plate - friction
- Require Quantity: 6
- Package Quantity: 6
- Base Number: 7B164
- Callout Name: 7B164
$9.53 $6.696
- RETAINER & SPRING ASY. (DIRECT CLUTCH)
-388104-S2
Retainer- (QQ-92-JK)Ring, retaining - 1-19/32" - retains (7F235 to 7F283)
- Base Number: 388104-S2
- Callout Name: 7F235
$4.25 $2.494
$13.98 $9.821
$82.50 $45.291
$112.83 $77.181
3L3Z-7B066-AA
PLATE (CLUTCH PRESSURE) FORWARD CLUTCHPlate - Clutch Pressure- Base Number: 7B066
- Callout Name: 7B066
$94.67 $64.751
3L3Z-7B066-BA
PLATE (CLUTCH PRESSURE) INTERMEDIATE CLUTCHPlate - Clutch Pressure- Base Number: 7B066
- Callout Name: 7B066
$30.33 $21.291
E9SZ-7B066-A
PLATE (CLUTCH PRESSURE) DIRECT CLUTCHPlate - Clutch Pressure- .219" thick - 34 teeth 3 21/32" ID x 5.00" OD
- Base Number: 7B066
- Callout Name: 7B066
$20.83 $14.251
EOAZ-7B164-A
PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) REVERSE CLUTCHPlate Assy - Drive- Friction - #1/16" thick
- Base Number: 7B164
- Callout Name: 7B164
$28.825
- PLATE (CLUTCH STEEL)
F2TZ-7B442-A
Driven Plate - Steel- Plate - steel - reverse clutch
- Require Quantity: 2
- Package Quantity: 3
- Base Number: 7B442
- Callout Name: 7B442
$11.28 $7.923
F6AZ-7B442-AA
Driven Plate - Steel- Plate - steel - .077" thick - Direct clutch
- Require Quantity: 6
- Package Quantity: 1
- Base Number: 7B164A
- Callout Name: 7B442
$17.17 $12.051
FOSZ-7B442-A
Driven Plate - Steel- Plate - steel - Forward clutch
- Require Quantity: 5
- Package Quantity: 5
- Base Number: 7B442
- Callout Name: 7B442
$9.07 $6.365
XL3Z-7B442-AA
Driven Plate - Steel- Intermediate clutch - steel - #1 selective - .0665/.071"
- Base Number: 7B442
- Callout Name: 7B442
$11.21 $7.874- XL3Z-7B442-BA
Driven Plate - Steel- Intermediate clutch - steel - #2 selective - .077/.081"
- Base Number: 7B442
- Callout Name: 7B442
$9.63 $6.764 - XL3Z-7B442-CA
Driven Plate - Steel- Intermediate clutch - steel - #3 selective - .087/.091"
- Base Number: 7B442
- Callout Name: 7B442
$16.33 $11.474
XL3Z-7B442-DA
Driven Plate - Steel- Intermediate clutch - steel - #4 selective - .097/.101"
- Base Number: 7B442
- Callout Name: 7B442
$11.54 $8.114
- SEAL (CLUTCH PISTON FLUID)
$4.84 $3.113
$13.55 $8.721
- SNAP RING (CLUTCH PRESSURE PLATE RETAINER) REVERSE CLUTCH
$19.64 $12.641
$13.93 $8.961
$12.95 $8.331
$17.36 $11.171
XL3Z-7A262-AA
PISTON ASY. (CLUTCH) FORWARD CLUTCHPiston- #RF-F6AP 7L140-AA
- Base Number: 7A262
- Callout Name: 7A262
$109.67 $60.211
XW1Z-7B164-AA
PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) INTERMEDIATE CLUTCHDisc - Friction- Friction
- Require Quantity: 4
- Package Quantity: 4
- Base Number: 7B164
- Callout Name: 7B164
$11.96 $8.404
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2005 Mercury Grand Marquis parts. Parts like Direct Clutch are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 4.6L. Transmission: 4AT 4R70W.
