2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

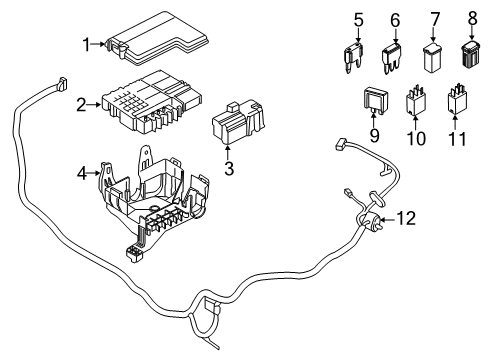

- 1.Electrical - Fuse & Relay (King Ranch,Lariat,Limited,Platinum,Police Responder,SSV,XL,XLT)
- 2.Electrical - Fuse & Relay (Raptor)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description

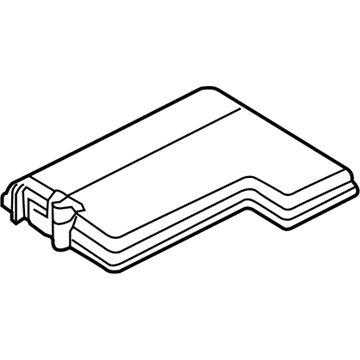

- 1
$25.45 $15.961
- 2
$360.00 $244.081
- 3
$461.82 $287.021
- 3
$13.731
- 4
$52.73 $33.061
- 5
F2UZ-14526-N

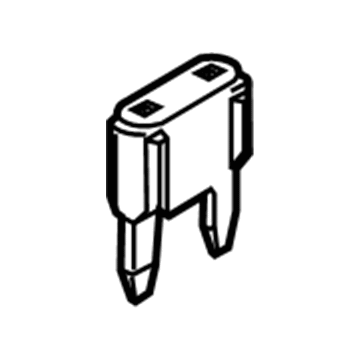

Mini Fuse- Part Notes: Engine Compartment, 2017-20, Blade Type, 32 Volt, 15 Amp;Engine Compartment, Blade Type, 32 Volt, 15 Amp
$1.36 $0.885 - 5
F2UZ-14526-M
Mini Fuse- Part Notes: Engine Compartment, 2017-20, Blade Type, 32 Volt, 10 Amp;Engine Compartment, Blade Type, 32 Volt, 10 Amp
$1.36 $0.885 - 5
F2UZ-14526-P
Mini Fuse- Part Notes: Engine Compartment, 2017-20, Blade Type, 32 Volt, 20 Amp;Engine Compartment, Blade Type, 32 Volt, 20 Amp
$1.36 $0.885 - 5
F58Z-14526-A
Mini Fuse- Part Notes: Engine Compartment, 2017-20, Blade Type, 32 Volt, 30 Amp;Engine Compartment, Blade Type, 32 Volt, 30 Amp
$5.09 $3.285 - 5
F2UZ-14526-L
Mini Fuse- Part Notes: Engine Compartment, 2017-20, Blade Type, 32 Volt, 5 Amp;Engine Compartment, Blade Type, 32 Volt, 5 Amp
$1.36 $0.885 - 5
F5OZ-14526-AB
Mini Fuse- Part Notes: Engine Compartment, 2017-20, Blade Type, 32 Volt, 7.5 Amp;Engine Compartment, Blade Type, 32 Volt, 7.5 Amp
$1.36 $0.885 - 5
F58Z-14526-B
Mini Fuse- Part Notes: Engine Compartment, 2017-20, Blade Type, 32 Volt, 25 Amp;Engine Compartment, Blade Type, 32 Volt, 25 Amp
$1.36 $0.885

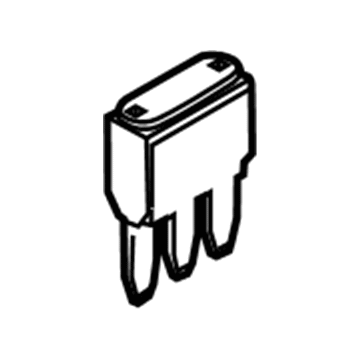

- 6
DG9Z-14526-P
Fuse- Part Notes: Engine Compartment, 2017-20, 3 Blade 10 Amp;Engine Compartment, 3 Blade 10 Amp
$2.55 $1.6410 - 6
DG9Z-14526-N
Fuse- Part Notes: Engine Compartment, 2017-20, 3 Blade 5 Amp;Engine Compartment, 3 Blade 5 Amp
$2.55 $1.6410 - 6DG9Z-14526-S
Fuse- Part Notes: Engine Compartment, 2017-20, 3 Blade 7.5 Amp;Engine Compartment, 3 Blade 7.5 Amp
$2.55 $1.6410

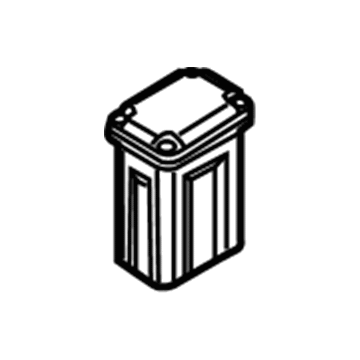

- 7
2L5Z-14526-AA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Square, 25 Amp;Engine Compartment, Square, 25 Amp
$6.07 $3.9110 - 7F8SZ-14526-AA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Square, 20 Amp;Engine Compartment, Square, 20 Amp
$7.06 $4.5410 - 7F8SZ-14526-CA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Square, 40 Amp;Engine Compartment, Square, 40 Amp
$2.55 $1.6410 - 7F8SZ-14526-DA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Square, 50 Amp;Engine Compartment, Square, 50 Amp
$2.55 $1.6410 - 7
F8SZ-14526-EA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Square, 60 Amp;Engine Compartment, Square, 60 Amp
$5.27 $3.3910

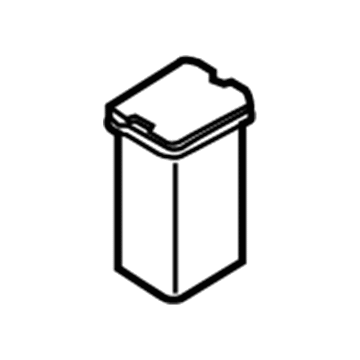

- 8
DG9Z-14526-BA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Rectangular, 20 Amp, Lt Blue;Engine Compartment, Rectangular, 20 Amp, Lt Blue
$5.27 $3.3910 - 8
DG9Z-14526-EA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Rectangular, 40 Amp;Engine Compartment, Rectangular, 40 Amp
$5.27 $3.3910 - 8
DG9Z-14526-CA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Rectangular, 25 Amp;Engine Compartment, Rectangular, 25 Amp
$6.00 $3.8610 - 8
DG9Z-14526-DA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Rectangular, 30 Amp, Pink;Engine Compartment, Rectangular, 30 Amp, Pink
$7.04 $4.5310 - 8
$1.27 $0.8210 - 8
DG9Z-14526-T
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Rectangular, 15 Amp, Gray;Engine Compartment, Rectangular, 15 Amp, Gray
$12.73 $8.191 - 8$1.41 $0.9010
- 8$1.28 $0.8210
- 8$1.43 $0.9210
- 8
$1.59 $1.0310
- 9
DG9Z-14526-AA
Circuit Breaker- Part Notes: Engine Compartment, 2017-20, Flat, 100 Amp;Engine Compartment, Flat, 100 Amp
$25.45 $16.381

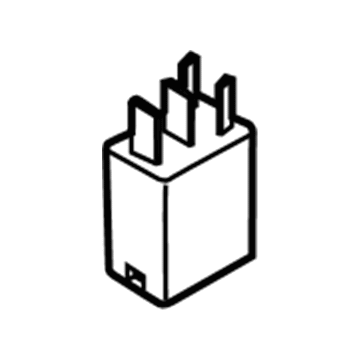

- 10
HU5Z-14N089-B
Relay- Part Notes: Engine Compartment, 20 Amp, 4 Terminal;Engine Compartment, 2017-20, 20 Amp, 4 Terminal
$23.33 $17.931

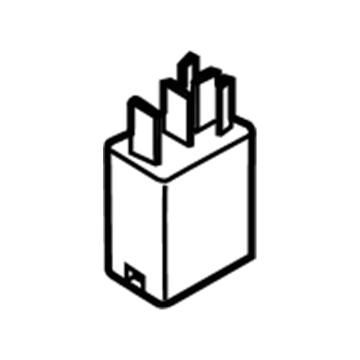

- 11
GU5Z-14N089-B
Relay- Part Notes: Engine Compartment, 2017-20, 40 Amp, 5 Terminal;Engine Compartment, 40 Amp, 5 Terminal
$41.67 $32.031

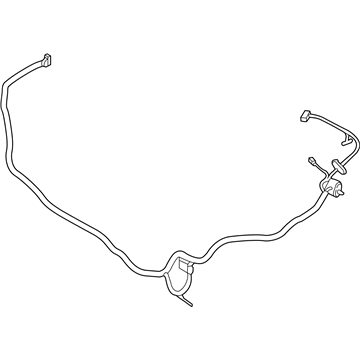

- 12
$1458.33 $980.001 - 12JL3Z-12A581-FA
Engine Harness- Part Notes: Engine Compartment, 3.3 Liter, W/O Trailer Pkg;Engine Compartment, 5.0 Liter, W/O Trailer Pkg
$635.00 $430.531 - 12$0.00
- 12JL3Z-12A581-FE
Engine Harness- Part Notes: Engine Compartment, 3.3 Liter, W/Trailer Pkg;Engine Compartment, 5.0 Liter, W/Trailer Pkg
$626.67 $424.881 - 12$620.00 $420.361
- 12$643.33 $436.181
- 12$703.33 $476.861
- 12$765.00 $518.671
- 12
$356.67 $258.941
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2020 Ford F-150 parts. Parts like Fuse & Relay are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX.
