4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.Fuel System Components (2.3L)
    2020 Ford Mustang Fuel Supply Diagram 1
  • 2.Fuel System Components (5.0L)
    2020 Ford Mustang Fuel Supply Diagram 2
  • 3.Fuel System Components (With Supercharger)
    2020 Ford Mustang Fuel Supply Diagram 3
  • 4.Fuel System Components (Without Supercharger)
    2020 Ford Mustang Fuel Supply Diagram 4
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 4 Ford FR3Z-9B007-B
    FR3Z-9B007-B

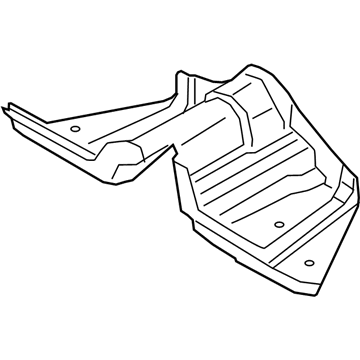

    Upper Shield
    • Part Notes: 2.3 Liter;5.0 Liter;W/O Supercharger
    • Location: Passenger Side
    $48.30 $26.56
    1
    Add To Cart
  • 5
    FR3Z-9092-A

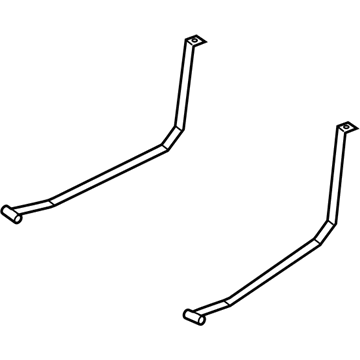

    Tank Strap
    • Part Notes: W/Supercharger
    • Location: Driver Side;Passenger Side
    $35.32 $19.42
    1
    Add To Cart

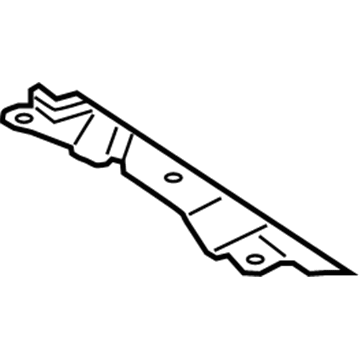

  • 5
    FR3Z-9B007-A
    Upper Shield
    • Part Notes: 2.3 Liter;5.0 Liter;W/O Supercharger
    • Location: Driver Side
    $50.85 $27.25
    1
    Add To Cart
  • 10
    FR3Z-9092-A
    Tank Strap
    • Part Notes: 2.3 Liter;5.0 Liter;W/O Supercharger
    • Location: Driver Side;Passenger Side
    $35.32 $19.42
    1
    Add To Cart

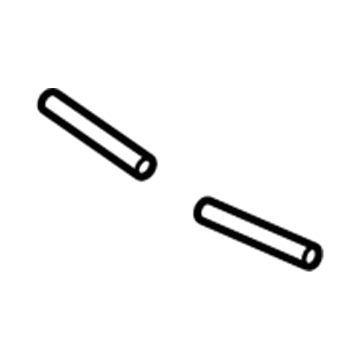

  • 11 Ford -W710861-S437
    -W710861-S437
    Tank Strap Pin
    • Part Notes: 2.3 Liter;5.0 Liter;W/O Supercharger
    • Location: Driver Side;Passenger Side
    $5.65 $3.31
    4
    Add To Cart
  • 12 Ford -W710947-S439
    -W710947-S439
    Tank Strap Bolt
    • Part Notes: 2.3 Liter;5.0 Liter;W/O Supercharger
    • Location: Driver Side;Passenger Side
    $6.65 $3.90
    4
    Add To Cart
  • 20 Ford FR3Z-9A299-A
    FR3Z-9A299-A
    Sending Unit
    • Part Notes: 2.3 Liter;5.0 Liter;W/O Supercharger
    • Location: Driver Side
    $180.55 $113.20
    1
    Add To Cart
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2020 Ford Mustang parts. Parts like Fuel Supply are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS.
