11 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

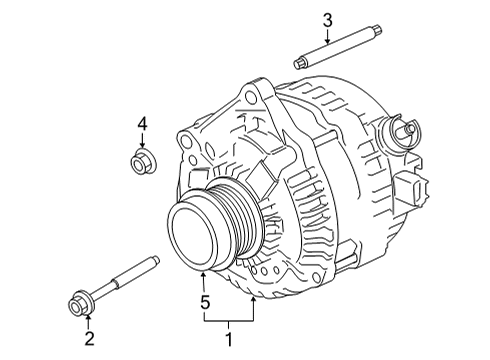

  • 1.Alternator - Alternator (6 Cyl 2.7 L)

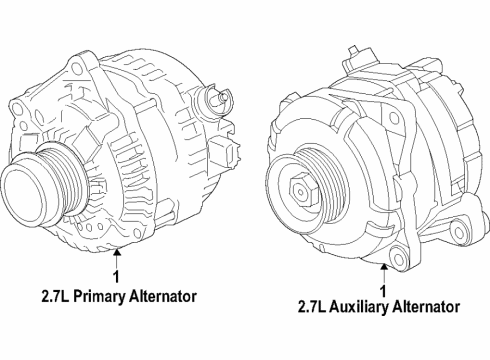

    2022 Ford F-150 Alternator Diagram 1
  • 2.Alternator - Alternator (6 Cyl 3.3 L)

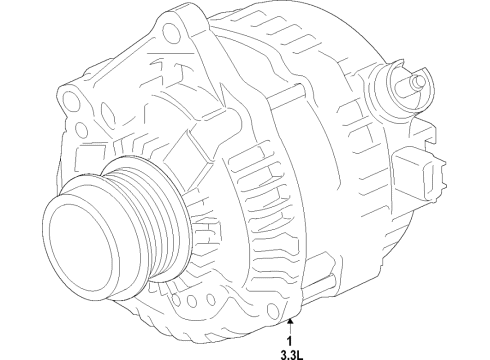

    2022 Ford F-150 Alternator Diagram 2
  • 3.Alternator - Alternator (6 Cyl 3.5 L)
    2022 Ford F-150 Alternator Diagram 3
  • 4.Alternator - Alternator (8 Cyl 5.0 L)
    2022 Ford F-150 Alternator Diagram 4
  • 5.Electrical - Alternator (2.7 L)

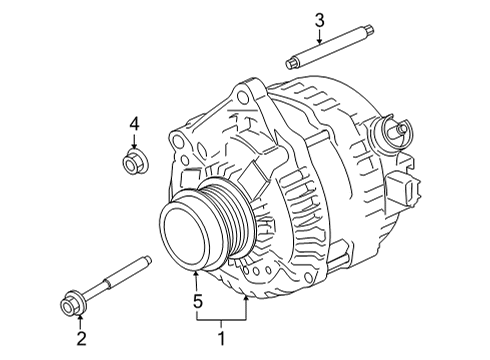

    2022 Ford F-150 Alternator Diagram 5
  • 6.Electrical - Alternator (2021-23,Dual Alternator)
    2022 Ford F-150 Alternator Diagram 6
  • 7.Electrical - Alternator (2021-23,Single Alternator)
    2022 Ford F-150 Alternator Diagram 7
  • 8.Electrical - Alternator (3.3 L)
    2022 Ford F-150 Alternator Diagram 8

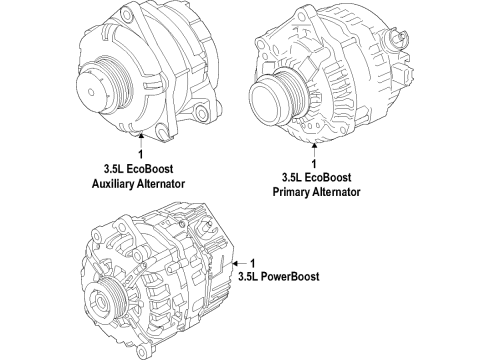

  • 9.Electrical - Alternator (3.5 L Ecoboost)
    2022 Ford F-150 Alternator Diagram 9
  • 10.Electrical - Alternator (3.5 L Powerboost)
    2022 Ford F-150 Alternator Diagram 10

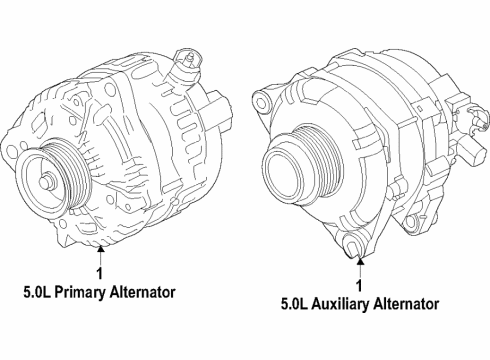

  • 11.Electrical - Alternator (5.0 L)
    2022 Ford F-150 Alternator Diagram 11
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1 Ford ML3Z-10346-A
    ML3Z-10346-A

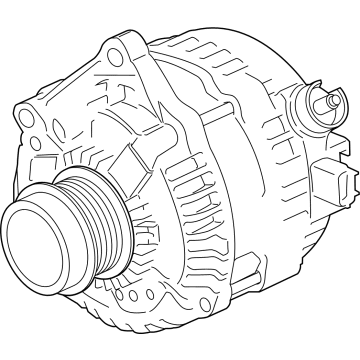

    Alternator
    • Part Notes: 2.7 Liter, W/O Pro Power;2.7 Liter, W/Pro Power, 2.4kw;3.3 Liter, W/O Pro Power;3.5 Liter Ecoboost, W/O Pro Power;3.5 Liter Ecoboost, W/Pro Power, 2.4 Kw;F-150; W/O Hybrid; W/O Power Converter;F-150; W/O Hybrid; W/Power Converter; Inverter #2; Left;F-150; W/O Power Converter;F-150; W/Power Converter; Inverter #2; Left
    $1154.55 $712.78
    1
    Add To Cart
  • 1 Ford ML3Z-10346-B
    ML3Z-10346-B
    Alternator
    • Part Notes: 2.7 Liter, W/Pro Power, 2kw;2021-23, Dual Alternator, Main;2021-23, Single Alternator;3.3 Liter, W/Pro Power;3.5 Liter Ecoboost, W/Pro Power, 2.0kw;F-150; W/O Hybrid; W/Power Converter; Inverter #1;F-150; W/Power Converter; Inverter #1
    $1247.27 $769.90
    1
    Add To Cart
  • 1 Ford ML3Z-10346-J
    ML3Z-10346-J
    Alternator
    • Part Notes: 5.0 Liter, Main, W/O Pro Power;F-150; W/O Power Converter;F-150; W/Power Converter; Inverter #2; Upper
    $1160.00 $716.14
    1
    Add To Cart
  • 1 Ford ML3Z-10346-K
    ML3Z-10346-K
    Alternator
    • Part Notes: 5.0 Liter, Main, W/Pro Power;F-150; W/Power Converter; Inverter #1
    $1072.73 $662.38
    1
    Add To Cart
  • 1 Ford ML3Z-10346-N
    ML3Z-10346-N
    Alternator
    • Part Notes: 5.0 Liter, Auxiliary, Pro Power;F-150; W/Power Converter; Inverter #2; Lower
    • Replaced By: ML3Z-10346-R
    $1012.73 $625.42
    1
    Add To Cart
  • 1 Ford ML3Z-10346-P
    ML3Z-10346-P
    Alternator
    • Part Notes: 2.7 Liter, Auxiliary, 2.4kw;F-150; W/Power Converter; Inverter #2; Right
    $903.64 $558.22
    1
    Add To Cart
  • 1 Ford ML3Z-10346-Q
    ML3Z-10346-Q
    Alternator
    • Part Notes: 2021-23, Dual Alternator, Auxiliary;3.5 Liter Ecoboost, Auxiliary, Pro Power;F-150; W/O Hybrid; W/Power Converter; Inverter #2; Right
    $960.00 $592.94
    1
    Add To Cart
  • 1 Ford ML3Z-11A213-B
    ML3Z-11A213-B
    Alternator
    • Part Notes: 3.5 Liter Powerboost, W/Starter;F-150; W/Hybrid
    $629.09 $391.72
    1
    Add To Cart

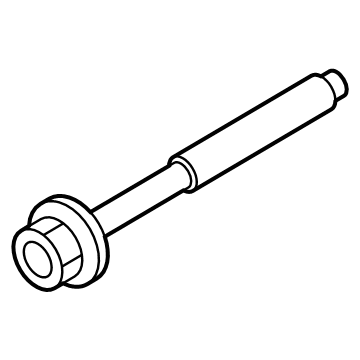

  • 3 Ford -W717176-S437
    -W717176-S437

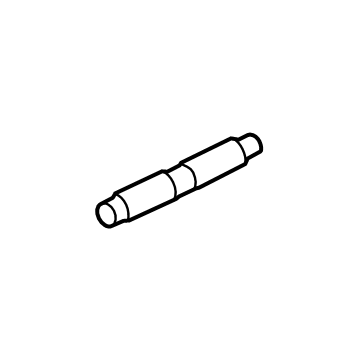

    Alternator Stud
    • Part Notes: 2.7 Liter;2021-23, Dual Alternator, Auxiliary Alternator;3.5 Liter Ecoboost
    $4.25 $2.49
    4
    Add To Cart

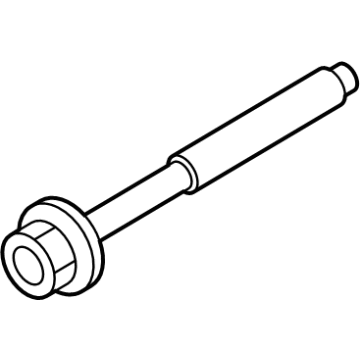

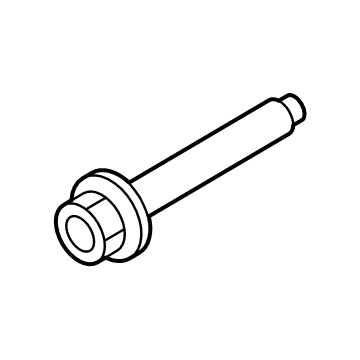

  • 3 Ford -W718570-S437
    -W718570-S437

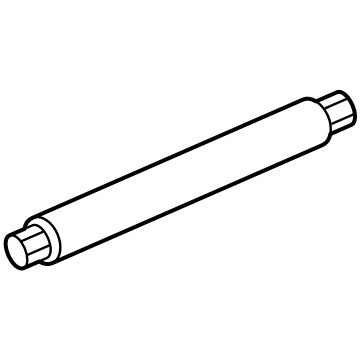

    Alternator Stud
    • Part Notes: 2021-23, Dual Alternator, Main Alternator;2021-23, Single Alternator;3.3 Liter;3.5 Liter Powerboost
    $4.25 $2.49
    4
    Add To Cart

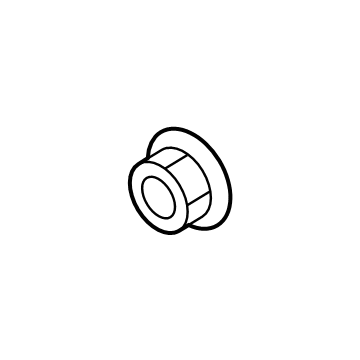

  • 4
    -W520414-S440

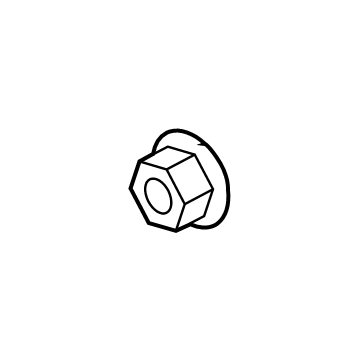

    Alternator Nut
    • Part Notes: 2.7 Liter;2021-23, Dual Alternator;2021-23, Single Alternator;3.3 Liter;3.5 Liter Ecoboost;3.5 Liter Powerboost
    $3.25 $1.91
    4
    Add To Cart
  • 5 Ford ML3Z-10344-A
    ML3Z-10344-A

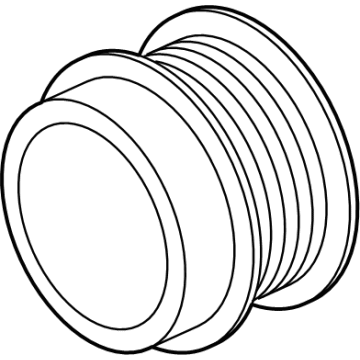

    Pulley
    • Part Notes: 2.7 Liter;2021-23, Dual Alternator, Main;2021-23, Single Alternator;3.5 Liter Ecoboost;3.5 Liter Powerboost
    $94.36 $59.17
    1
    Add To Cart
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2022 Ford F-150 parts. Parts like Alternator are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 2.7 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX.
