3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

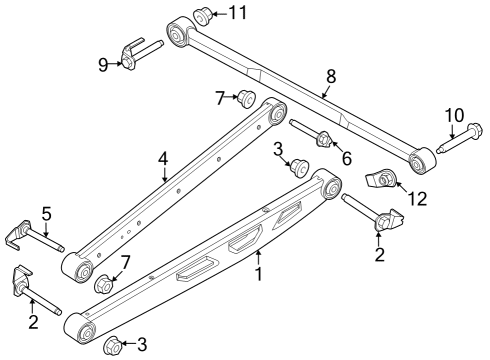

  • 1.Rear Suspension - Suspension Components (2017-20;Raptor)
    2022 Ford F-150 Rear Suspension Diagram 1
  • 2.Rear Suspension - Suspension Components (2021-23;Raptor)
    2022 Ford F-150 Rear Suspension Diagram 2

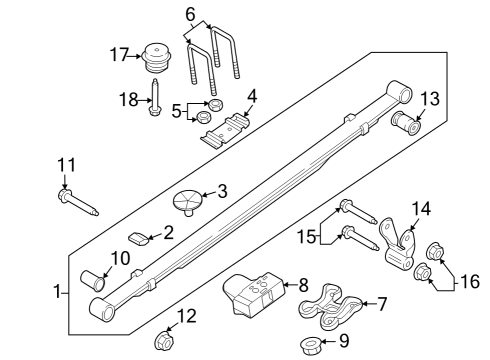

  • 3.Rear Suspension - Suspension Components (King Ranch,Lariat,Limited,Platinum,Police Responder,SSV,Tremor,XL,XLT)
    2022 Ford F-150 Rear Suspension Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1 Ford ML3Z-5560-K
    ML3Z-5560-K
    Spring
    • Part Notes: Heavy Duty Payload
    • Location: Driver Side;Passenger Side
    $571.67 $269.77
    1
    Add To Cart
  • 1 Ford ML3Z-5560-M
    ML3Z-5560-M
    Spring
    • Part Notes: Sport Suspension
    • Location: Driver Side;Passenger Side
    $425.00 $288.15
    1
    Add To Cart
  • 1 Ford ML3Z-5560-N
    ML3Z-5560-N
    Spring
    • Part Notes: Base Payload, 3.0, 3.5 5.0 Ltr
    • Location: Driver Side;Passenger Side
    $198.33 $135.66
    1
    Add To Cart
  • 1 Ford ML3Z-5560-Q
    ML3Z-5560-Q
    Spring
    • Part Notes: Base Payload, 2.7, 3.3 Liter
    • Location: Driver Side;Passenger Side
    $306.67 $207.92
    1
    Add To Cart
  • 6 Ford ML3Z-5705-A
    ML3Z-5705-A
    U-Bolt
    • Part Notes: RWD
    • Location: Driver Side;Passenger Side
    $39.83 $27.96
    1
    Add To Cart
  • 6 Ford ML3Z-5705-B
    ML3Z-5705-B
    U-Bolt
    • Part Notes: 4WD
    • Location: Driver Side;Passenger Side
    $8.73 $6.13
    1
    Add To Cart
  • 14 Ford ML3Z-5776-A
    ML3Z-5776-A
    Shackle
    • Part Notes: W/O Heavy Duty Tow
    • Location: Driver Side;Passenger Side
    $83.67 $57.23
    1
    Add To Cart
  • 14 Ford ML3Z-5776-B
    ML3Z-5776-B
    Shackle
    • Part Notes: W/Heavy Duty Tow
    • Location: Driver Side;Passenger Side
    $133.83 $91.54
    1
    Add To Cart
  • 17 Ford ML3Z-4730-A
    ML3Z-4730-A
    Bumper
    • Part Notes: RWD
    • Location: Driver Side;Passenger Side
    $27.83 $19.54
    1
    Add To Cart
  • 17 Ford ML3Z-4730-B
    ML3Z-4730-B
    Bumper
    • Part Notes: 4WD
    • Location: Driver Side;Passenger Side
    $34.83 $24.45
    1
    Add To Cart
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2022 Ford F-150 parts. Parts like Rear Suspension are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 2.7 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX.
